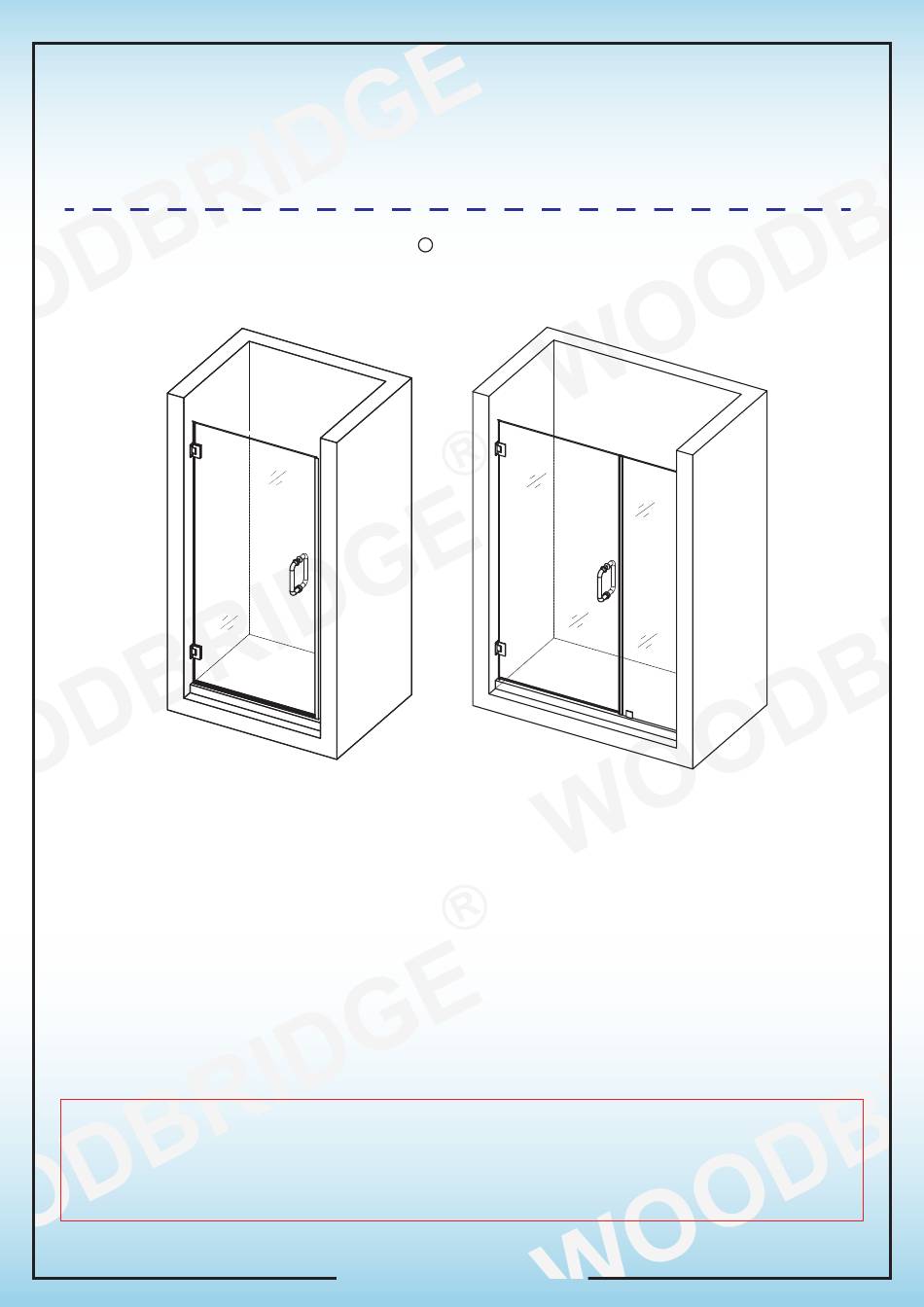

INSTALLATION MANUAL
WOODBRIDGE
SHOWER DOORS:
HSD2876-WP
HSD3076-WP
HSD3676-WP
IMPORTANT!
WOODBRIDGE reserves the right to alter, modify or redesign products at any time without prior
notice for the purpose of product improvement and customer experience. Please refer to
WWW.WOODBRIDGEBATH.COM for the latest product details.
Questions?
Please Call Customer Support: 562-229-0088. (Monday - Friday 9 AM - 5 PM Pacific Time)
Or Email: help@woodbridgebath.com
R
SHOWER DOOR
SIDE PANELS:
www.woodbridgebath.com
www.woodbridgebath.com
HSDP1276-WP
HSDP1476-WP
HSDP1876-WP
HSDP2076-WP
HSDP2476-WP
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Woodbridge HSD2876-WP
Summary of Contents for Woodbridge HSD2876-WP
- Page 1 HSD3676-WP HSDP2076-WP HSDP2476-WP IMPORTANT! WOODBRIDGE reserves the right to alter, modify or redesign products at any time without prior notice for the purpose of product improvement and customer experience. Please refer to WWW.WOODBRIDGEBATH.COM for the latest product details. Questions? Please Call Customer Support: 562-229-0088. (Monday - Friday 9 AM - 5 PM Pacific Time) Or Email: help@woodbridgebath.com...
- Page 2 IMPORTANT •WoodBridge reserves the right to alter, modify, or redesign products at any time without prior notice for product improvement or functionality. •Professional installation required. This product should be installed by someone experi- enced with the construction requirements for this type of project, the care necessary to responsibly and safely install, and familiarity with glass installation.
- Page 3 •Examine the glass and parts for defects or damage. •Please note that Woodbridge will not replace any missing or damaged items free of charge after 5 business days or if the product has been installed.
-
Page 4: Important Note
Important Note Attention: These Woodbridge shower doors include SHATTER-SAFE protective film on the side of the glass without the certification information printed on it, see the fig 1 & 2. INTERSIDE Fig 1 OUTERSIDE Fig 2 SHATTER-SAFE protective film helps to hold glass in place in the event of breakage. - Page 5 In the event of breakage please follow the steps below. 1. If someone is inside the shower, move the panel slowly out of the way and exit the bathroom as soon as possible. Do not allow anyone to re-enter bathroom until prepared to remove and dispose of broken panel.
- Page 6 IMPORTANT INFORMATION REGARDING THE INSTALLATION OF THIS SHOWER DOOR A. Hinges and Wall Profile must be firmly attached to the wall. Installation into a stud is strongly recommended. B. The vinyl seal should be installed along the door glass’s closing edge to prevent the door from making contact with the wall.
- Page 7 Minimum Threshold Size Requirement: 13/16" www.woodbridgebath.com...
- Page 8 Minimum Threshold Size Requirement: 13/16" www.woodbridgebath.com...
- Page 9 Tools Tape Phillips Power Silicone Pencil Level Measure Screwdriver Drill Drill Bit Drill Bit Drill Bit Drill Bit Drill Bit Miter saw Soft Head Ø1/8" Ø3/16" Ø1/4" Ø5/16" Ø3/8" Hammer (3mm) (4mm) (6mm) (8mm) (10mm) #3 Phillips Professional-grade Work Gloves Hacksaw Safety Glasses Driver Bit...
- Page 10 Glass Door Side Panel www.woodbridgebath.com...
- Page 11 Parts List for Glass Door www.woodbridgebath.com...
- Page 12 Parts List for Side Panel www.woodbridgebath.com...
- Page 13 Single Shower Door Assembly and Installation Configuration 1 1. Disassemble the hinge and attach the Hinges (1) to the Glass door (4). See Figure 1 for details. IMPORTANT: Make sure that clear rubber gaskets and the plastic gasket are in between the glass door and the hinge plates.
- Page 14 2.Remove the corner pads from the Glass door (4).Cut the Side strip (2) according to the measure- ments. Slide the Side anti-water Strip (2) to the Glass Door (4). See Figure 2 for details. Figure 2 3. Place a piece of flat timber (3/8” thick) on the shower base.
- Page 15 4. Hold the door in place and mark down the drill holes for both Hinges (1) on the wall. Set the door aside and drill the holes in the wall using Ø8mm(Ø5/16") drill bit. Apply silicone into the holes on the wall and insert the wall anchors (6) ATTENTION:This door is extremely heavy and the hinges on this door must be attached to the studs or to preinstalled 2 ×...
- Page 16 5. Disassemble the Hinges (1) Screw M5X75 from the glass door carefully and set the Glass Door (4) aside. Locate the main body of the hinge to the predrilled holes, fasten the main body of the hinge to the wall with screws M5 x 60 (7). Place the Glass Door back to its position and reassemble the Hinges.
- Page 17 Configuration 2 Fixed Glass Assembly and Installation Note: Use parts from SIDE PANEL COMPONENTS on page 12 for fixed glass assembly and installation. If you only order the glass door with hinges, you do not need to read this fixed glass installation instruction 7.Press the Fixed Glass (10) with attached Glass profile into the slot of Wall profile (9) Press the Anti-Water strip (8) on the verti-...
- Page 18 8. Push the Fixed Glass installed with profiles against the wall, align the Fixed Glass (10) with the Glass Door (4) and level it. Maket sure the gap between the fixed glass and glass door. If needed adjust the position of the Fixed Glass by pulling out the fixed glass with glass profile from the slot of the Wall Profile or push the fixed glass with glass profile to the slot of the wall profile to make sure the Anti-water strips work well.
- Page 19 9. Draw a line along the Bottom Bracket (11) on shower base. Draw a line along the inner edge of the Wall Profile (9) o the wall. Now set aside the fixed glass. Place the the Bottom Brack- et on shower base, mark the drilling holes with a pen or marker. Now drill the holes using Ø8mm(Ø=5/16") drill bit on the shower base.
- Page 20 10. A p p l y s i l i c o n e i n t o t h e h o l e s o n t h e w a l l , Insert the Wall anchors (15) into the holes . Apply silicone along the Wall profile (9) and around the holes.
- Page 21 12. After final adjustments of the Assembled unit drill three holes in the Wall profiles (9) using Philip's type screwdriver only.NOTE: You only need to drill through the first layer of the Glass Profiles. Use the Round head screws Self tapping screw M3.5X13 (12) to secure the Glass profiles inside of the Wall profiles. Cover the exposed screw holes with Screw Cover (14).
- Page 22 Figure 13 13. Apply silicone between Fixed Glass and the tray or threshold. Also apply silicone between wall and the wall profiles. See Fig. 13 for details. WAIT 24 HOURS BEFORE USING THE SHOWER ENCLOSURE www.woodbridgebath.com...
-
Page 23: Warranty
WARRANTY WOODBRIDGE Bathtub, Whirlpool/Air Bubble Massage Tub, Cold Plunge,1 Year limited to be free of defects in material and workmanship. Sauna room and Sauna Tent : 1 Year limited to be free of defects in material and workmanship. Toilet and Bidet : 1 Year limited to be free of defects in material and workmanship. - Page 24 IMPORTANT! DO NOT USE: Abrasive cleaners such as: acid, ammonia, bleach, and similar solutions. Use of such solutions may cause corrosion, finish peeling, and/or dull the surface. DO NOT USE: Abrasive sponges or cloth. Never use steel, wool, or wired brushes that will permanently scratch the Update: 20241220 www.woodbridgebath.com...
