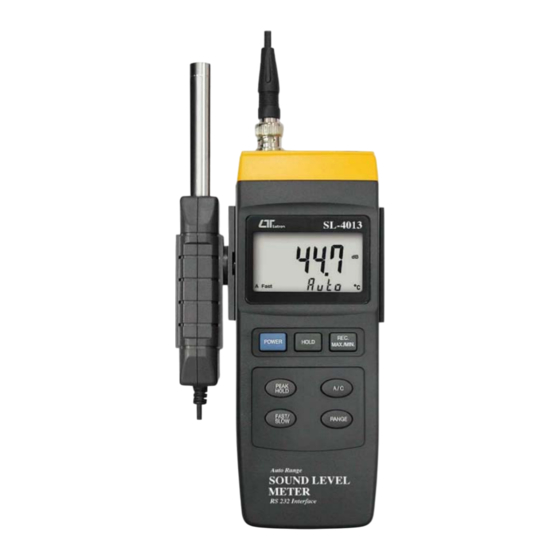

Lutron Electronics SL-4013 Operation Manual
  1. Manuals
  2. Brands
  3. Lutron Electronics Manuals
  4. Measuring Instruments
  5. SL-4013
  6. Operation manual

Lutron Electronics SL-4013 Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
separate probe, RS-232
SOUND LEVEL METER
Model : SL-4013
OPERATION MANUAL
Your
purchase
SOUND
LEVEL
marks a step forward for
you
into
the
precision measurement.
Although
this
LEVEL METER is a complex
and delicate instrument,
its durable structure will
allow many years of use if
p r o p e r
o p e r a t i n g
techniques are developed.
Please read the following
instructions carefully and
always keep this manual
within easy reach.
of
this
METER
field
of
SOUND

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SL-4013 and is the answer not in the manual?

Questions and answers

Related Manuals for Lutron Electronics SL-4013

Summary of Contents for Lutron Electronics SL-4013

  • Page 1 RS-232 SOUND LEVEL METER Model : SL-4013 Your purchase this SOUND LEVEL METER marks a step forward for into field precision measurement. Although this SOUND LEVEL METER is a complex and delicate instrument, its durable structure will allow many years of use if...
  • Page 2 TABLE OF CONTENTS 1. FEATURES...............1 2. SPECIFICATIONS............. 1 3. FRONT PANEL DESCRIPTION........4 3-1 Microphone............4 3-2 Display............. 4 3-3 Power On/Off Button......... 4 3-4 Hold Button............4 3-5 REC./Max. Min. Button........4 3-6 Max. Hold Button..........4 3-7 A/C Weighting Button........4 3-8 Time Weighting ( Fast / Slow ) Button....4 3-9 Range Button............4 3-10 AC Output Socket..........

  • Page 3: Specifications

    1. FEATURES * Separate sound probe, easy operation. * A & C weighting networks meet IEC 61672 class 2. * 0.5" standard microphone head. * Time weighting (Fast & Slow) dynamic characteristic modes. * AC output for system expansion. * RS232/USB computer interface. * Auto range &...
  • Page 4 Measurement 30 - 130 dB. Range Resolution 0.1 dB. Auto range : Range selector 30 to 130 dB. Manual range : 3 range, 30 to 80 dB, 50 to 100 dB, 80 to 130 dB, 50 dB on each step, with over &...
  • Page 5 Terminal 1 : Output terminal RS 232/USB PC serial interface. * Connect the optional RS232 cable UPCB-02 will get the RS232 plug. * Connect the optional USB cable USB-01 will get the USB plug. Terminal 2 : AC output terminal. Terminal socket size : 3.5 mm dia.

  • Page 6: Front Panel Description

    3. FRONT PANEL DESCRIPTION Fig. 1 3-1 Microphone 3-10 AC Output Socket 3-2 Display 3-11 Calibration VR 3-3 Power On/Off Button 3-12 RS232 Computer Interface 3-4 Hold Button Socket 3-5 REC./Max. Min. Button 3-13 Battery compartment / Cover 3-6 Max. Hold Button 3-14 Stand 3-15 BNC socket 3-7 A/C Weighting Button...

  • Page 7: Measuring Procedure

    4. MEASURING PROCEDURE Connect the " BNC plug " ( 3-16, Fig. 1 ) into the " BNC socket " ( 3-15, Fig. 1 ) Insert the " Probe handle " ( 3-17, Fig. 1 ) into the " Probe holder " ( 3-18, Fig. 1 ). Power on by pressing the "...
  • Page 8 Manual range 1 , 30 - 80 dB range : Display will show the unit of " 30 - 80 ". Manual range 2 , 50 - 100 dB range : Display will show the unit of " 50 - 100 ". Manual range 3 , 80 - 130 dB range : Display will show the unit of "...
  • Page 9 7) Data Hold During the measurement, pushing the " Hold Button " ( 3-4, Fig. 1 ) will hold the measured value & the LCD will indicate " HOLD " symbol. * Push the " Hold Button " again to release the data hold function.

  • Page 10: Auto Power Disable

    5. AUTO POWER DISABLE The instrument has built-in " Auto Power Shut-off " in order to prolong battery life. The meter will switch off automatically if none of the buttons are pressed within approx. 10 min. To de-activate this feature, Select the memory record function during measurement, by pressing the "...
  • Page 11 7-2 RS232 computer interface The instrument is provided an 3.5 mm dia. phone socket ( 3-12, Fig. 1 ) for RS232 computer interface socket. The connector output is a 16 digits data stream which can be utilized to the user's specific application. A RS232 lead with the following connection will be required to link the instrument with the PC serial input.
  • Page 12 Decimal Point(DP), position from right to the left 0 = No DP, 1= 1 DP, 2 = 2 DP, 3 = 3 DP D8 to D1 Display reading, D1 = LSD, D8 = MSD For example : If the display reading is 1234, then D8 to D1 is : 00001234 End Word RS232 setting...
  • Page 13 11. TIME WEIGHTING ( FAST and SLOW) CHARACTERISTICS Time Weighting Max. response Tolerance Charac. ref. continuous signal (IEC 61672 class 2) F ( Fast ) - 1.0 dB + 1 dB - 2 dB S ( Slow ) - 4.1 dB ± 2 dB 0711-SL-4013...
