7 in 1
HVAC/Environment meter
Anemometer, CMM/CFM
Humidity/Temp. meter
Model : SP-7000
OPERATION MANUAL
Your purchase of this 7
in 1 METER marks a
step forward for you
into
the
field
precision measurement.
Although this METER is
a complex and delicate
instrument, its durable
structure
will
many years of use if
p r o p e r
o p e r a t i n g
t e c h n i q u e s
developed. Please read
t h e
f o l l o w i n g
instructions
carefully
and always keep this
manual
within
reach.
of
allow
a r e
easy
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lutron Electronics SP-7000
Summary of Contents for Lutron Electronics SP-7000
- Page 1 7 in 1 HVAC/Environment meter Anemometer, CMM/CFM Humidity/Temp. meter Model : SP-7000 Your purchase of this 7 in 1 METER marks a step forward for you into field precision measurement. Although this METER is a complex and delicate instrument, its durable...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. FEATURES..............1 2. SPECIFICATIONS............1 3. FRONT PANEL DESCRIPTION........5 3-1 Hold button............5 button ( Power button )........5 3-3 REC button............5 3-4 LCD display............5 3-5 Wristlet..............5 3-6 Anemometer Vane..........5 3-7 Humdity/Temp. sensor.......... 5 3-8 Battery Compartment / Cover.........5 3-9 Buttons operation label..........5 4. -
Page 3: Features
1. FEATURES * 7 in 1 professional environment instruments: 1. Air velocty/Temp., 2. Humidity/Temp., 3. CFM, CMM, 4. Dew point, 5. Wet bulb, 6. Wind chill, 7. Heat index, * Tiny bone shape with lightweight and small size case design are suitable for handling with one hand. * Wristlet design provides extra protection to the instrument especially for user one hand operation. -
Page 4: Air Velocity
Operating 0 to 50° C (32 to 122° F) Temperature Over Input Indication of "- - - - " Display Power Supply CR 2032 DC 3V battery Power Approx. DC 5 mA Consumption Weight 160g (battery included) Dimension HWD 120 x 45 x 20 mm (4.7 x 1.8 x 1.2 inch). Standard Instruction Manual Accessory... - Page 5 Humidity/Temp. Unit Range Resolution Accuracy < 70% RH : % RH 10 to 95 %RH 0.1 %RH ± 4 %RH 70% RH : ≧ ± ( 4 %rdg +1.2 %RH) Temp. 0 to 50 ℃ 0.1 ℃ ± 1.2 ℃ 32 to 122 ℉...
- Page 6 Heat index Unit Range Resolution Accuracy 0 to 100.0 ℃ 0.1 ℃ ± 2.0 ℃ ℃ 32 to 212 ℉ 0.1 ℉ ± 3.6 ℉ ℉ Pleas refer to http://en.wikipedia.org/wiki/Heat_index Effects of the heat index (shade values) Celsius Fahrenheit Notes 27–...
-
Page 7: Front Panel Description

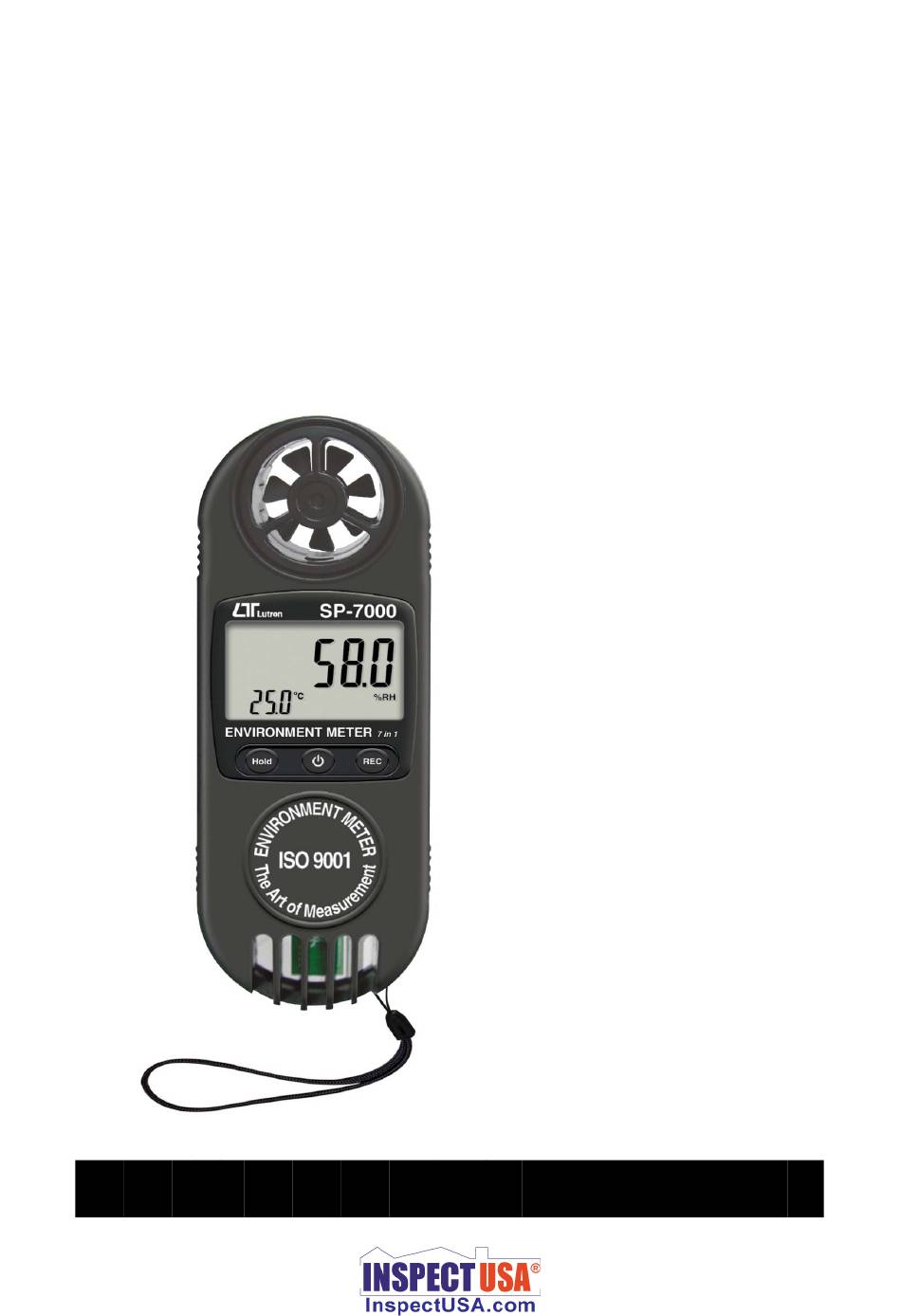

3. FRONT PANEL DESCRIPTION Fig. 1 3-1 Hold button Button ( Power button ) 3-3 REC nutton 3-4 LCD display 3-5 Wristlet 3-6 Anemometer Vane 3-7 Humdity/Temp. sensor 3-8 Battery Compartment / Cover 3-9 Buttons operation label... -
Page 8: Measuring Procedures
4. MEASURING PROCEDURE 4-1 Power on/off Button = Power Button Power on : Press " Power Button " once. Power off : During power on, press " Power Button " > 3 seconds. will power off. 4-2 LCD backlight on/off During power on, press "... -
Page 9: Unit Selection
During power on, press the " Hold button " continuously ( not release the button ), the Display will show the following text in sequence : Display Function text Anemometer ( Air velocity/Temp. ) AirFL Air flow ( CMM, CFM ) CHiLL Wind chill Humidity/Temp. - Page 10 2)If the Display with two units, such as anemometer with two Display, upper Display show the air velocity value, lower Display show the Temp. value. After finish the upper Display unit selection ( already press the " REC buton " to enter ) then can select the lower Display unit ( ) following by pressing the "...
-
Page 11: Special Attention For The Humidity Measurement
4-5 Special attention for the Humidity measurement Attention : Intend to get the precision reading, for the Humidity / Temp. , Dew point Temp., Wet bulb Temp., Heat index measurement, the hand or fingers do not touch ( or stay away ) the Humidity sensor ( 3-7, Fig. -
Page 12: Hold Function
4-7 Hold Function Whenever press the " Hold Button " will freeze the current reading value with a "HOLD" symbol on the display. To release the Hold function, just press the " Hold button " once again, the " HOLD " indicator will be disappeared. 4-8 REC ( Record ) function 1)The REC ( Record ) function can record and display the maximum and minimum reading values. -
Page 13: Battery Replacement
5. BATTERY REPLACEMENT 1)When the LCD display shows " " symbol, it is necessary to replace the battery. However measurement may still be made for several hours after the low battery indicator appears. 2)Open the " Battery Compartment / Cover " ( 3-8, Fig. 1 ) and remove the battery.
