Application:
2005 - 2013 Corvette
Side Vent Spear Vent Kit
Tools Needed
Please read complete instructions for side cove screen and side spear before installation.
PLEASE NOTE: Side cove screens must be installed before side spears can be installed. Wheel removal is optional.
DIRECTIONS FOR SAFE AND PROPER APPLICATION
STEP 1.
Park Corvette on a level surface and set parking brake.
STEP 2.
Loosen lug nuts on front wheels
STEP 3.
Follow factory instructions for jacking up front of vehicle.
STEP 4.
Place jack stands as recommended by factory or owner's
manual.
STEP 5.
Remove lug nuts and front wheels.
STEP 6.
Fender liner is attached at rear with four retainers. Use screwdriver to gently pry out center of retainers to remove.
Remove 7 & 10mm screws from base of panel.
STEP 7.
Pull liner out of the way to access side cove.
STEP 8.
To remove inner cove "cup", pull away from fender. It is attached with double-stick tape.
STEP 9.
Open alcohol swab packet and wipe down edges to provide clean surface for new tape.
STEP 10.

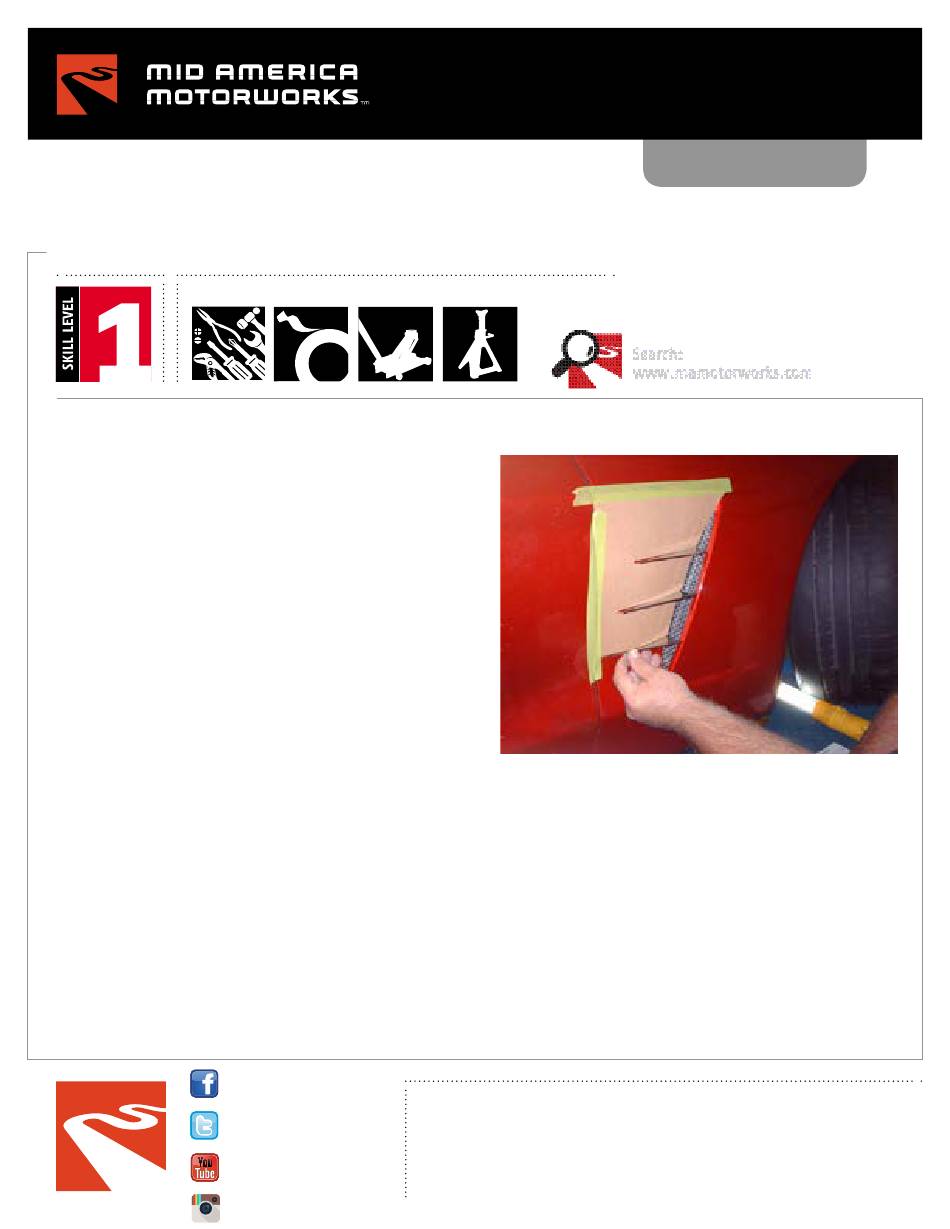

Use the supplied template by placing it over the side vent and aligning it with the fender edge. Figure 1.
Mamotorworks
@CorvettePassion
MidAmericaMotorworks
CorvettePassion
2900 Nor th Third Street, Ef fingham, IL 62401
800.500.1500 • Worldwide: 217.540.4200 • FAX: 217.540.4800
w w w.mamotor work s.com • generalmail@mamotor work s.com
©Mid America Motorworks, Inc. All rights reserved.
INSTRUCTION SHEET
Part Number
609-640
Part Includes

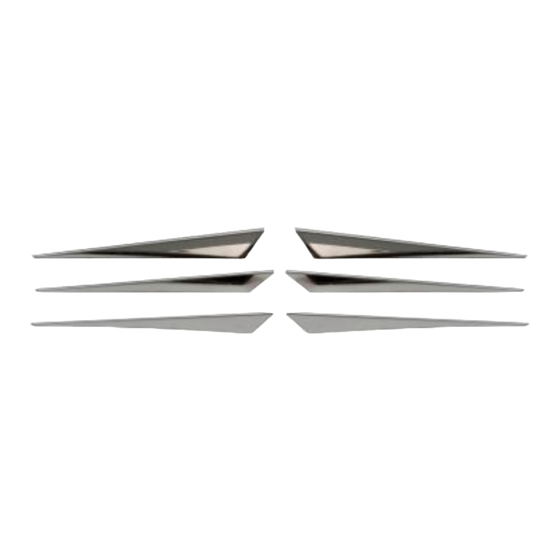

6 - Side Spears
Body Trim, Bumpers & Grilles
Advertisement
Table of Contents
Related Manuals for Mid America Motorworks 609-640
Summary of Contents for Mid America Motorworks 609-640
- Page 1 Use the supplied template by placing it over the side vent and aligning it with the fender edge. Figure 1. Mamotorworks 2900 Nor th Third Street, Ef fingham, IL 62401 @CorvettePassion 800.500.1500 • Worldwide: 217.540.4200 • FAX: 217.540.4800 w w w.mamotor work s.com • generalmail@mamotor work s.com MidAmericaMotorworks ©Mid America Motorworks, Inc. All rights reserved. CorvettePassion...
- Page 2 INSTRUCTION SHEET Page 2 000-000 Description (cont.) STEP 11. Use the supplied template to position and mark where spears will be installed in screen. The smallest spear will mount at the top cut out section. The longest spear will mount at the bottom. Make sure all the spears are all the way forward and flush with the screen.
