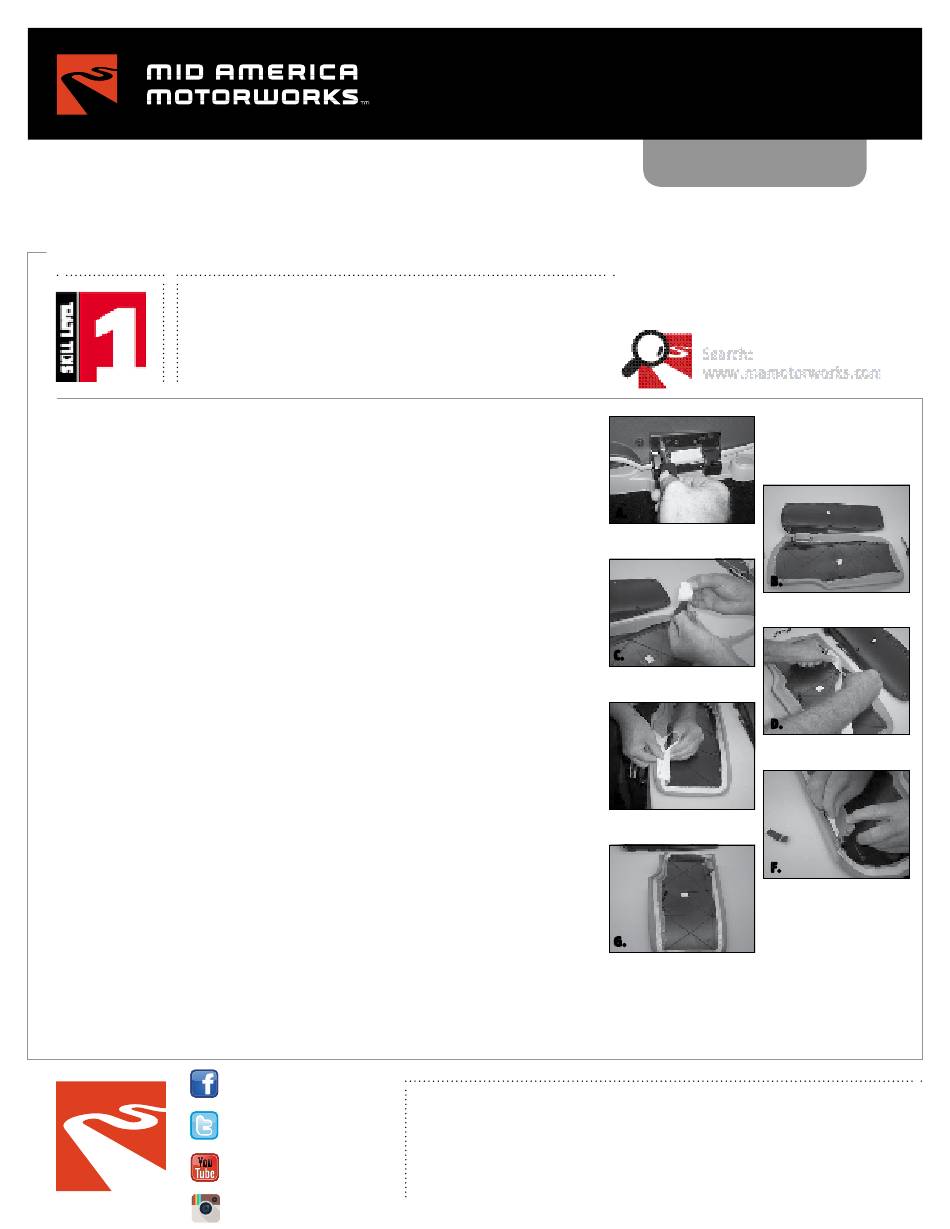

Mid America Motorworks 618-768 Instruction Sheet

Application:

C6 2005-2013
Console Cushions

Tools Needed

Work on a table or bench covered with a soft cloth. Read through the
complete instructions and study illustrations before starting in order to
familiarize your self with all the steps and helpful TIPS.

STEP 1.

Remove the 4 "Torx" head screws that secure the console lid to the hinge
assembly. Place the 4 screws in the cup holder for re-assembly, (Illus. A).

STEP 2.

Remove the back cover, (7 "Torx" head screws), and set aside, (Illus. B).

STEP 3.

Clean the inside edges of the vinyl where the double sided tape installs with
Isopropyl Alcohol, to remove any oils that might hinder tape adhesion. LET
DRY before tape installation.

STEP 4.

Tape installation; cut a 1" piece of tape off the strip and set aside. Start
by peeling a small amount of the colored tape facing back, (Illus. C). Start
beside the latch assembly, and move clock wise; press the ex- posed side
of the tape onto the inside edge of the lid, (Illus. D). Use your thumb nail
against the white paper backing to work the tape into the vinyl of the lid.
After you have the tape pressed into the vinyl, peel the white facing back.
Peeling back 3" at a time of the colored facing, work around the inside edge
until you reach the other side of the latch assembly, (Illus. E). MAKE SURE you
saved a 1" long piece of tape that goes behind the latch assembly. Install the
1" piece close to the rough edge of the vinyl under the latch assembly, (Illus.
F). Note lid with all the tape in place, (Illus. G). Avoid touching the exposed
tape with your hands as the oils in your skin will weaken the holding
strength of the tape.
Mamotorworks
@CorvettePassion
MidAmericaMotorworks
CorvettePassion
2900 Nor th Third Street, Ef fingham, IL 62401
800.500.1500 • Worldwide: 217.540.4200 • FAX: 217.540.4800
w w w.mamotor work s.com • generalmail@mamotor work s.com
©Mid America Motorworks, Inc. All rights reserved.
INSTRUCTION SHEET
Part Number
618-768
Part Includes
1 - Component
Console
A.
B.
C.
D.
E.
F.
G.
