Mid America Motorworks 601-002 Installation Instructions

Suggested Installation Instructions for Product Number:
601-002,
VERY IMPORTANT!!! If you plan to install this entire kit at once, please read all instructions before
beginning, as you will find you can combine steps for simplicity.

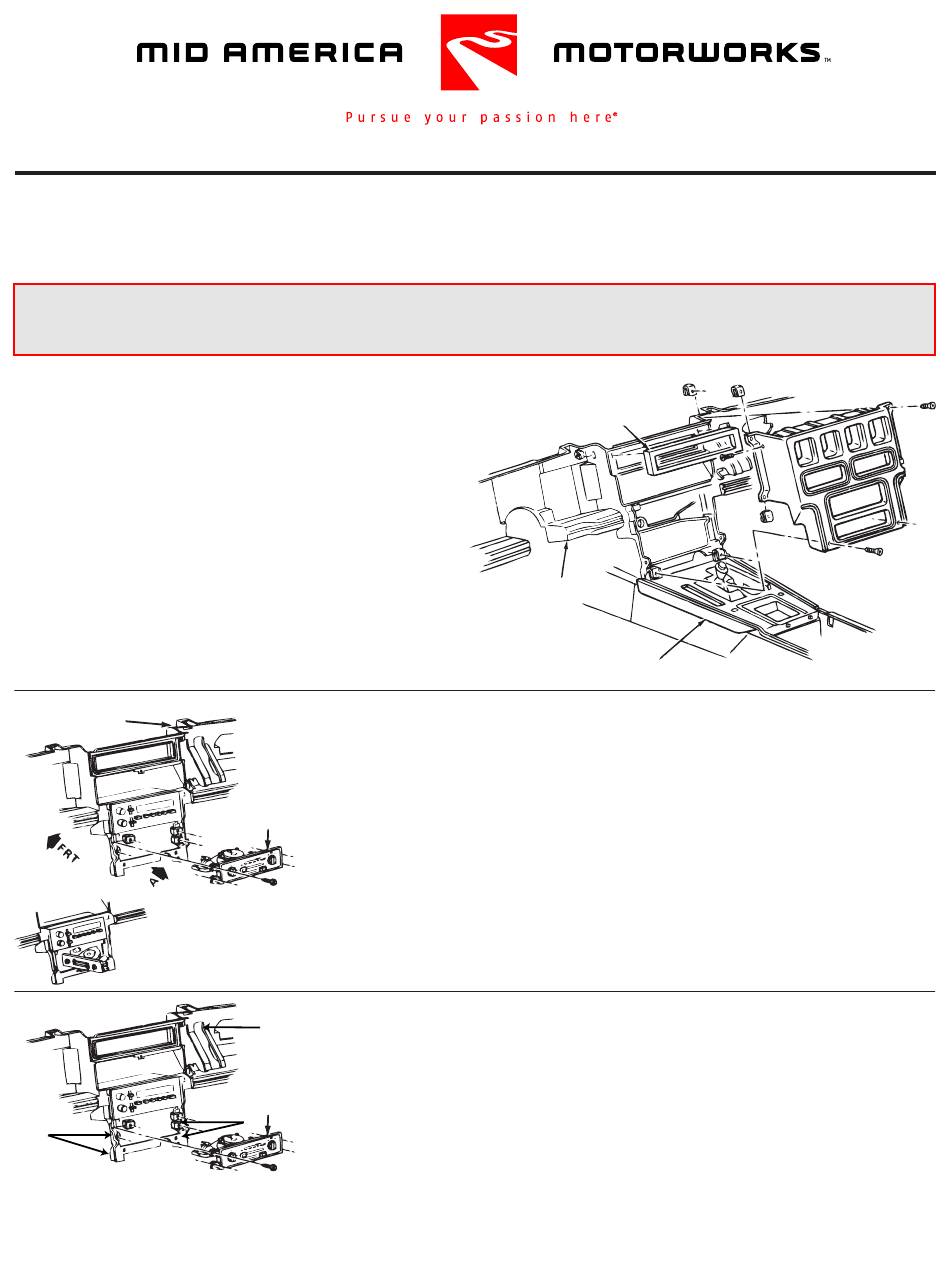

1984-89 Instrument Panel Bezel Removal

To access the center instrument panel AC control head, radio control
head, and driver information panel bulbs, remove the Phillips screw
holding the bezel to the IP as shown in picture.
I.P. Carrier
Control Mounting
4
1 - Instrument Panel
2 - Control Assembly
3 - Bolt
4 - Nut
1984-1989 Corvette Center Panel Bulb Kit

1984-89 Manual AC Control Head Bulbs

Once the center instrument panel bezel is removed you will have to position the center
console plate back slightly to remove the two lower screws holding the AC control head to
Control
the IP. Open the console lid and remove the two Phillips screws holding the console plate
to the carrier. Remove the other four screws and lift up on the console plate and move it
back a couple of inches. Now remove the four 7mm headed screws holding the control
head to the IP. Pull the control head rearward, but do not remove it or disconnect anything.
Locate the two small black light sockets on each side of the control head. Turn the sockets
counterclockwise to remove them from the control head.
1

1986-89 Electronic AC Control Head Bulbs

The center console plate will have to be positioned back slightly in order to remove the
bottom screws holding the control head to the instrument panel. Open the console lid and
remove the two Phillips screws holding the console plate to the center carrier. Remove the
2
other four screws and lift up the console plate and move it back a couple of inches. Remove
4
the four 7mm headed screws holding the AC control head to the dash. Pull the control head
rearward and unplug it from the IP harness wire. Remove a clip on each side of the control
head face. These hold the face to the control head. Unplug the face from the control head
3
and locate the back lighting bulb sockets. Turn the sockets counterclockwise and replace the
bulbs.
I.P. Accessory Trim
Plate Assembly
Instrument
Panel
Front Floor Console Trim Plate
