2.SPECIFICATIONS OF INTERFACE
2.1.Computer signal input section

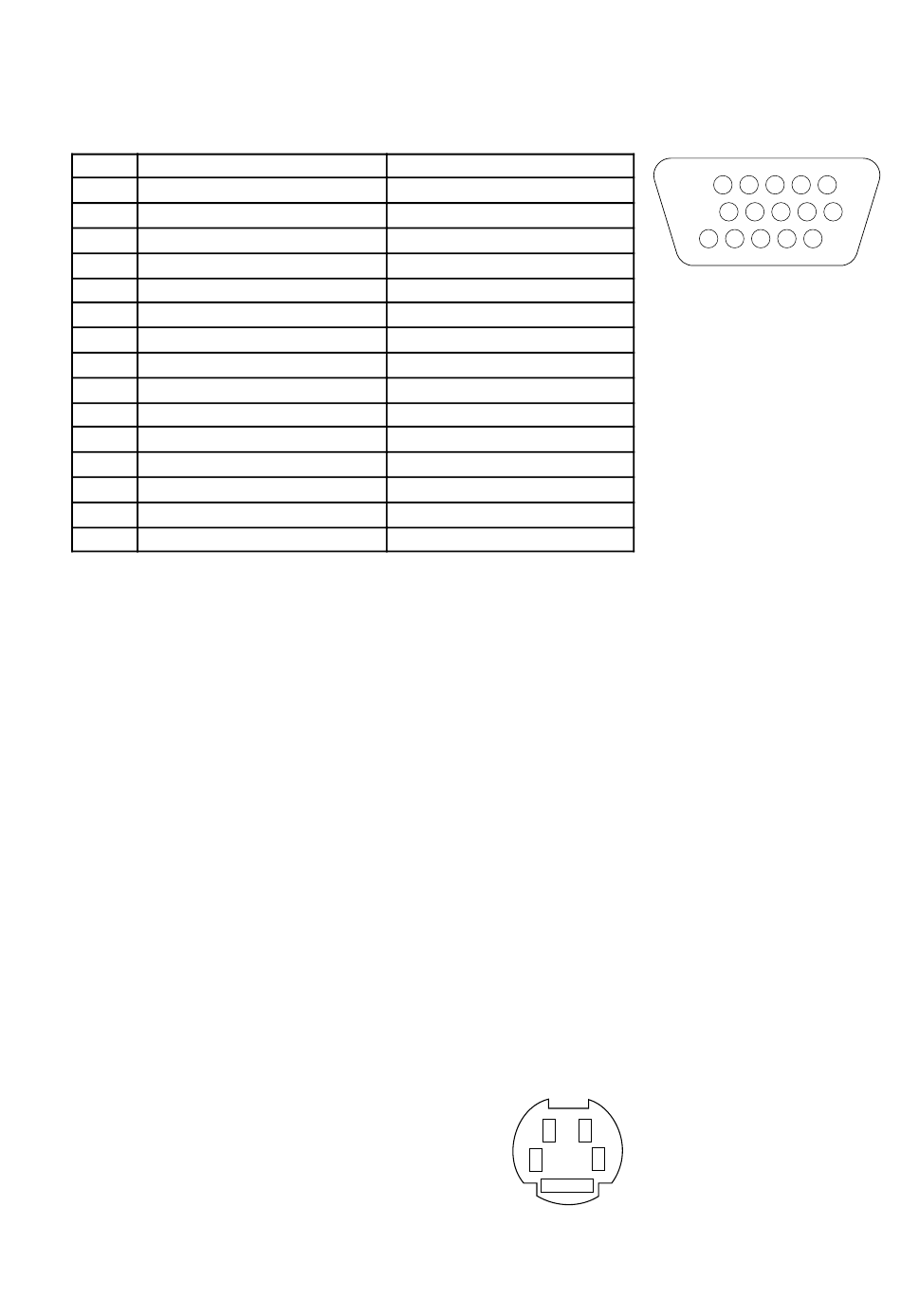

Signal layout
Pin No. Analog Signal
1 Analog Red
2 Analog Green
3 Analog Blue
4 N.C.
5 N.C.
6 Analog Red Return
7 Analog Green Return
8 Analog Blue Return
9 Test 1(Macintosh)
10 Test 2(GND)
11 GND
12 N.C.
13 Hsync/Csync
14 Vsync
15 N.C.
Connector
Test 1 :When connecting to Apple Macintosh computer, this terminal must be
grounded.
Test 2 :This terminal must be grounded when inputting analog-type computer
signals.
Leave this terminal open(N.C.) when inputting digital computer signals.
2.2.Composite video signal input section
Connector
2.3.Audio signal input section
Connector
2.4.Power input section
Input pin
AC adaptor
Input voltage
2.5.S-terminal video signal input section
Signal layout
N.C.
Digital Green
Digital Blue
Digital Secondary Red(r)
Digital Red
Digital Red Return(GND)
Digital Green Return(GND)
Digital Blue Return(GND)
N.C.
Test 2(N.C.)
GND
Digital Secondary Green(g,I)
Hsync
Vsync
Digital Secondary Blue(b.Video)
:Mini D-Sub 15-pin connector
JST EKHEY-15S-IF3P14-143
(applicable plug housing : JST KEC-15P)
:Pin jack (EIAJ RC-6703A)
:Pin jack (EIAJ RC-6703A)
:HEC0470-01-640 [Hoshiden Co., Ltd.] or equivalent
Center pin +
:Accessory AC adaptor DADP-2004PAZZ
:DC12V (when main body is loaded)
: 1.GND
2.GND
3.Y signal
4.C signal
Digital Signal
3
4
1
2
3
5 4 3 2 1
10 9 8 7 6
15 14 13 12 11
