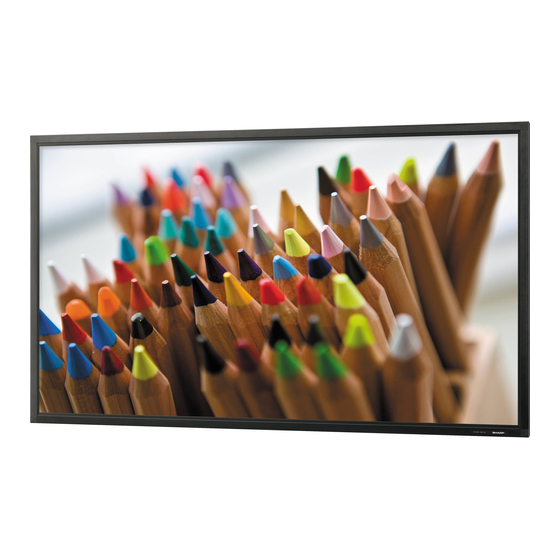

Sharp PN-E702 Operation Manual

Pn-e702 operation-manual gb
Hide thumbs

Advertisement

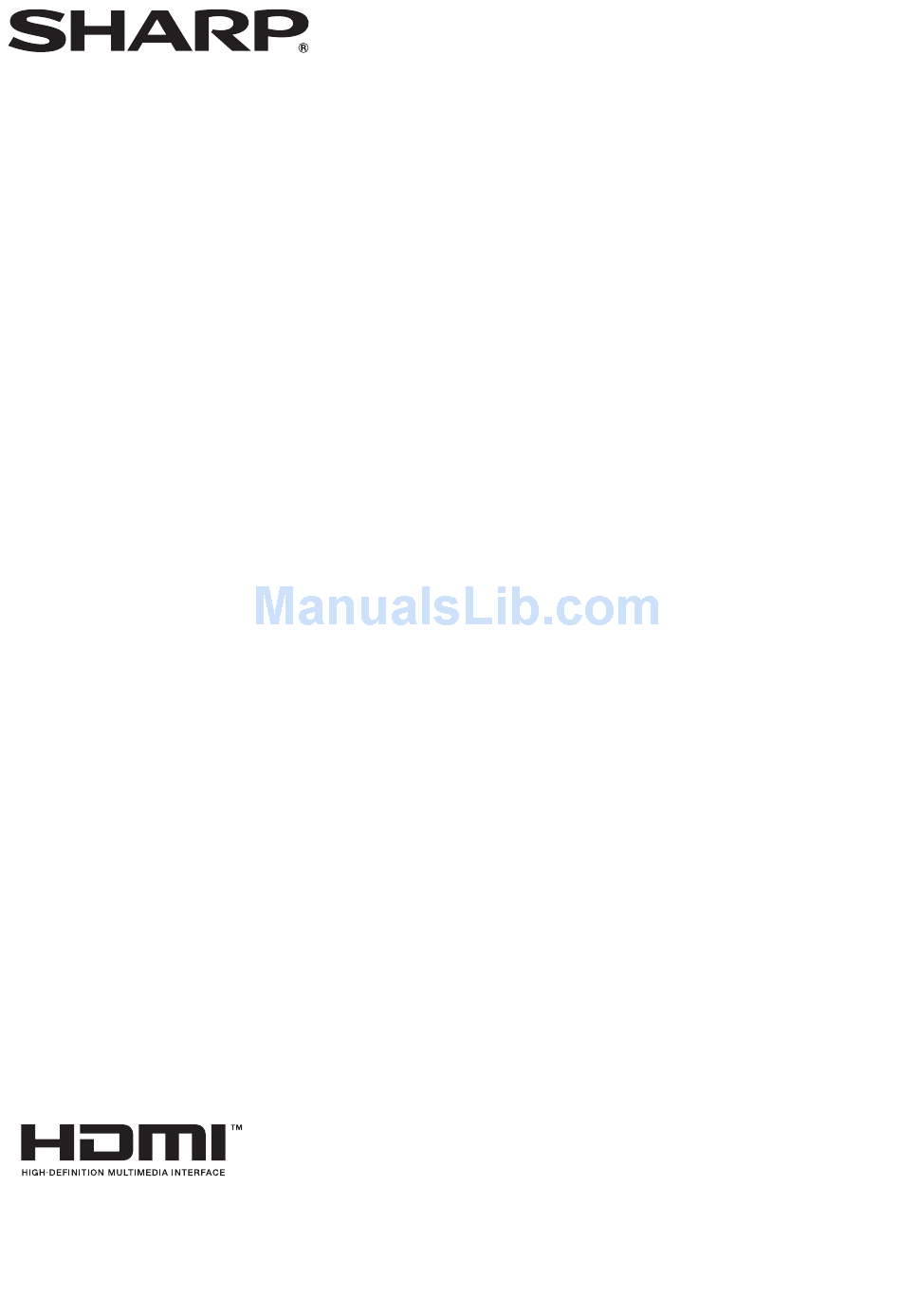

PN-E702
LCD MONITOR
OPERATION MANUAL

Advertisement

loading

  Related Manuals for Sharp PN-E702

  Summary of Contents for Sharp PN-E702

  • Page 1 PN-E702 LCD MONITOR OPERATION MANUAL...
  • Page 2 E or by the safety earth • The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. • The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red. Ensure that your equipment is connected correctly. If you are in any doubt consult a qualified electrician. “WARNING: THIS APPARATUS MUST BE EARTHED.” Authorised representative responsible for the European Union Community Market Model No.: Serial No.: FOR CUSTOMERS IN U.K. IMPORTANT GREEN-AND-YELLOW: BLUE: BROWN: or coloured green or green-and-yellow. SHARP ELECTRONICS (Europe) GmbH Sonninstraße 3, D-20097 Hamburg Earth Neutral Live U.S.A. ONLY...
  • Page 3: Important Information

    IMPORTANT INFORMATION WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: T O REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment. NOTE: This equipment has been tested and found to comply with the limits for Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
  • Page 4 For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don’t purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch. B. Information on Disposal for Business Users 1. In the European Union If the product is used for business purposes and you want to discard it: Please contact your SHARP dealer who will inform you about the take-back of the product. You might be charged for the costs arising from take-back and recycling. Small products (and small amounts) might be taken back by your local collection facilities. For Spain: Please contact the established collection system or your local authority for take-back of your used products. 2. In other Countries outside the EU If you wish to discard of this product, please contact your local authorities and ask for the correct method of disposal.
  • Page 5: Dear Sharp Customer

    DEAR SHARP CUSTOMER Thank you for your purchase of a SHARP LCD product. To ensure safety and many years of trouble-free operation of your product, please read the Safety Precautions carefully before using this product. SAFETY PRECAUTIONS Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your LCD product, please read the following precautions carefully before using the product.
  • Page 6 SAFETY PRECAUTIONS (Continued) 1 9. B atteries — Incorrect use of batteries may cause the batteries to burst or ignite. A leaky battery may corrode the equipment, dirty your hands or spoil your clothing. In order to avoid these problems, make sure to observe the precautions below: • Use the specified batteries only. • I nstall the batteries with due attention to the plus (+) and minus (-) sides of the batteries according to the instructions in the compartment. • Do not mix old and new batteries. • Do not mix batteries of different types. Voltage specifications of batteries of the same shape may vary. • Replace an exhausted battery with a new one promptly. • If you will not use the remote control for a long time, remove the batteries. • I f leaked battery fluid gets on your skin or clothing, rinse immediately and thoroughly. If it gets into your eye, bathe your eye well rather than rubbing and seek medical treatment immediately. Leaked battery fluid that gets into your eye or your clothing may cause a skin irritation or damage your eye.
  • Page 7: Tips And Safety Instructions

    - T his manual assumes use in landscape orientation, except where specifically noted. LED Backlight ● The LED backlight in this product has a limited lifetime. * I f the screen gets dark or does not turn on, it may be necessary to replace the LED backlight. This LED backlight is exclusive to this product and must be replaced by an authorized SHARP servicing dealer or service center. * P lease contact your local SHARP servicing dealer or service center for assistance.
  • Page 8: Mounting Precautions

    • Temperature condition may change when using the monitor together with the optional equipments recommended by SHARP. In such cases, please check the temperature condition specified by the optional equipments. • Do not block any ventilation openings. If the temperature inside the monitor rises, this could lead to a malfunction. • Do not place the monitor on a device which generates heat. • Adhere to the following when installing the monitor in its portrait orientation. Failing to adhere to the following may...
  • Page 9: Table Of Contents

     R-6 battery (“AA” size): 2  CD-ROM (Utility Disk for Windows): 1  Setup Manual: 1  Vertical sticker (Operation panel): 1  Vertical sticker (Logo): 1  Terminal label: 1 Used when installing the expansion board PN-ZB01 (optional).  Cover Sharp logo: 1 Place this sticker onto the SHARP logo to cover the logo. * Sharp Corporation holds authorship rights to the Utility Disk program. Do not reproduce it without permission. * For environmental protection! Do not dispose of batteries in household waste. Follow the disposal instructions for your area. Contents Menu Items ...20 Displaying the menu screen ...20 Menu item details ...21 Adjustments for PC screen display ...28...
  • Page 10: Part Names

    When the PN-ZB01 (optional) is attached Caution • Consult your SHARP dealer for attachment/detachment of optional parts. • Do not open the expansion terminal cover by yourself. There are high voltage parts inside the cover which may cause an electric shock. Part Names 1. LCD panel 2. Remote control sensor (See page 15.) 3.
  • Page 11 nRemote control unit 1. Signal transmitter 2. POWER button (See page 16.) 3. MUTE button (See page 18.) 4. VOL +/- buttons (See page 18.) BRIGHT +/- buttons (See page 18.) Cursor control ( 5. DISPLAY button (See page 18.) 6. MODE button (See page 18.) 7. INPUT button (See page 18.) 8. MENU button (See page 18.) 9. SIZE button (See page 18.) Part Names ) buttons...
  • Page 12: Connecting Peripheral Equipment

    Connecting Peripheral Equipment When the PN-ZB01 (optional) is attached Caution • Be sure to turn off the main power switch and disconnect the plug from the power outlet before connecting/ disconnecting cables. Also, read the manual of the equipment to be connected. • Be careful not to confuse the input terminal with the output terminal when connecting cables. Accidentally reversing cables connected to the input and output terminals may cause malfunctions and the other problems.
  • Page 13: Connection When The Pn-Zb01 (Optional) Is Attached

    Connection when the PN-ZB01 (optional) is attached The PN-ZB01 expansion board (optional) allows the use of additional connection terminals. 6. PC/AV DVI-D input terminal • Set DVI of INPUT SELECT on the OPTION menu according to the device to be connected. • Select the audio input terminal to be used in PC DVI-D or AV DVI-D of AUDIO SELECT on the OPTION menu. 7. PC RGB input terminals • Set BNC of INPUT SELECT on the OPTION menu to PC RGB when using the PC RGB input terminals. • Select the audio input terminal to be used in PC RGB of AUDIO SELECT on the OPTION menu. 8. AV component input terminals • Set BNC of INPUT SELECT on the OPTION menu to AV COMPONENT when using the AV component input terminals.
  • Page 14: Connecting The Power Cord

    Connecting the Power Cord Caution • Use only the power cord supplied with the monitor. 1. Turn off the main power switch. 2. Plug the power cord (supplied) into the AC input terminal. 3. Plug the power cord (supplied) into the AC power outlet. Cable Cable clamp attachment Cable clamp The handles can be removed. Handle Caution • The removable handles and handle screws are for use with this monitor. Do not use them for any other devices. • To attach handles, be sure to use the handles and handle screws which were removed from the monitor. • Be sure the handles are attached securely. Binding Cables The cables connected to the terminals on the rear of the monitor can be fastened with the cable clamp.
  • Page 15: Preparing The Remote Control Unit

    Preparing the Remote Control Unit Installing the batteries 1. Press the cover gently and slide it in the direction of the arrow. 2. See the instructions in the compartment and put in the supplied batteries (R-6 (“AA” size) x 2) with their plus (+) and minus (-) sides oriented correctly. 3. Close the cover. TIPS • When the batteries become exhausted, replace them with new (commercially available) batteries. • The supplied batteries (R-6 (“AA” size) x 2) may become exhausted quickly depending on how they are stored. • If you will not be using the remote control for a long time, remove the batteries. • Use manganese or alkaline batteries only. Remote control operation range The operation range of the remote control unit is approx. 16.4 feet (5 m) at an angle of approx 10° from the center to the top/ bottom/right/left of the remote control sensor. 10°...
  • Page 16: Turning Power On/Off

    Caution • Turn on the monitor first before turning on the PC or playback device. Turning on the main power Caution • The main power must be turned on/off with the main power switch. Do not connect/disconnect the power cord or turn the breaker on/off while the main power switch is on. • When switching the main power switch or the POWER button off and back on, always wait for at least 5 seconds. • For a complete electrical disconnection, pull out the main plug. Turning Power On/Off Turning power on/off Press the POWER button or POWER switch to turn the power ON/OFF. Main power switch Green lit Orange lit Green flashing...
  • Page 17: Disabling Power On/Off Operations

    If you already set the time but the date/time setting screen appears when the power is turned on, the internal battery may be exhausted. Please contact your local SHARP servicing dealer or service center for assistance with battery replacement. •...
  • Page 18: Basic Operation

    1. INPUT (Input mode selection) The menu is displayed. Press mode, and press to enter. * You can select the input terminal by pressing the input switch of the monitor. Input mode Video PC D-SUB PC D-sub input terminal PC HDMI PC/AV HDMI input terminal AV HDMI PC/AV HDMI input terminal...
  • Page 19 nSwitching the screen size Even when the screen size is changed, the display may remain the same depending on the input signal. WIDE ZOOM 1 ZOOM 2 NORMAL Dot by Dot TIPS • Using this monitor’s screen-size switching or dual-screen display functions to compress or expand the screen for commercial or public viewing in establishments like cafes or hotels may infringe on the rights of the creators, as protected by Copyright Law, so please be careful. • When “Enlarge” is set, the screen size is fixed to “WIDE” mode. • When dual-screen display is selected, the screen size cannot be changed. • The appearance of the original video may change if you select a screen size with a different aspect ratio than the original image (e.g. TV broadcast or video input from external equipment). • When an ordinary non-wide image (4:3) is viewed with the whole screen using the screen-size switching function of this monitor, the edge of the image may be lost or appear distorted. If you wish to respect the creator’s intentions, set the screen size to “NORMAL”.
  • Page 20: Menu Items

    Displaying the menu screen Video and audio adjustment and settings of various functions are enabled. This section describes how to use the menu items. See pages 21 to 25 for details of each menu items. Caution • Do not turn the main power switch off while the menu items are being displayed. Doing so may initialize the settings. nExample of operation (Adjusting CONTRAST in the PICTURE menu) MENU 1.
  • Page 21: Menu Item Details

    Menu item details The menu will differ depending on the input mode. nSCREEN You can move the menu screen display position each time DISPLAY is pressed. AUTO (PC D-SUB/PC RGB) The CLOCK, PHASE, H-POS, and V-POS are automatically adjusted. Pressing performs adjustment. Use this automatic adjustment when you use the PC D-sub input terminal or PC RGB input terminals to display a PC screen for the first time or when you change the setting of the PC. (See page 28.) CLOCK (PC D-SUB/PC RGB) Adjusts frequency for sampling clock for applicable video.
  • Page 22 Menu Items USER Adjusts each item when the WHITE BALANCE is set to USER. R-CONTRAST ...Adjusts bright-toned red component. G-CONTRAST ...Adjusts bright-toned green component. B-CONTRAST ...Adjusts bright-toned blue component. R-OFFSET ...Adjusts dark-toned red component. G-OFFSET ...Adjusts dark-toned green component. B-OFFSET ...Adjusts dark-toned blue component. COPY TO USER Copies the value of white set for PRESET to the USER setting. MENU Select “ON” and then press (In the case other than white, color tone may differ from the PRESET.) GAMMA Selects the gamma. USER sets the gamma to the sent value (see page 33). (In PIP mode, the main side setting is reflected in the image.) DISPLAY COLOR PATTERN Displays a color pattern. Can be displayed while the menu screen is displayed, so you can refer to the pattern while adjusting the image.
  • Page 23 STANDBY MODE When STANDARD is selected, startup time from standby mode is reduced. Note, however that, more power will be consumed in standby mode. When LOW POWER is selected, current consumption is reduced while the monitor is in standby mode. Note, however, that the startup time from standby mode becomes longer. If set to LOW POWER, certain RS-232C commands cannot be used in standby mode, and control via LAN will be disabled.
  • Page 24 Menu Items SCAN MODE (AV input) Sets the scan mode used for AV mode input. MODE1 ... O ver-scan display MODE2 ...Under-scan display MODE3 ... U nder-scan display when the input signal is 1080i/p. Otherwise, over-scan display * E ven when MODE1 is selected, under-scan display is used when the input signal is 1080i/p and the screen size is Dot by Dot. POWER MANAGEMENT POWER MANAGEMENT determines whether or not to switch modes from no signal to the input signal standby mode. COLOR SYSTEM (AV S-VIDEO/AV VIDEO) Select the color system of the AV equipment which is connected to AV S-video and AV video input terminal. (AUTO / PAL / PAL-60 / SECAM / NTSC3.58 / NTSC4.43)
  • Page 25: Ndual Screen Display

    nPIP/PbyP PIP MODES Sets the display method. OFF ...Displays one screen. PIP ...Displays a sub screen inside a main screen. PbyP ...Displays a main screen and a sub screen in a line. PbyP2 ...Displays a main screen which measures 1280 pixels in the longest direction and a sub screen in a line. PIP SIZE Sets the size of the sub screen in PIP mode. PIP H-POS Adjusts the horizontal position of the sub screen in PIP mode. PIP V-POS Adjusts the vertical position of the sub screen in PIP mode. PIP BLEND In PIP mode, use this menu item to display the sub screen transparently.
  • Page 26 Menu Items nEnlarge • You can align several monitors and integrate them into a single large screen to display. • Up to five monitors can be aligned in both the horizontal and vertical directions. • Each monitor displays enlarged views of separated images. (Example) Horizontal direction: 2 monitors Vertical direction: 2 monitors Horizontal direction: 3 monitors Vertical direction: 2 monitors Setting procedure Set using the MULTI menu. 1.
  • Page 27 nSCHEDULE You can set the time to switch the monitor on and off. Set this function with “SCHEDULE” in the OPTION menu. (See page 23.) SCHEDULE – –/– –/– – – – – – – – –:– –:– – POWER DAY OF THE WEEK TIME – – – – – – –...
  • Page 28: Adjustments For Pc Screen Display

    Menu Items nADVANCED items (AV input) (See page 21 for additional Menu item details.) FLESH TONE Adjust the hue control. 3D-NR Reduce the noise of playback images on video. Setting a higher level reduces more noise. However, it may cause blurring on an image. MPEG-NR Reduce block noise caused by digital compression.
  • Page 29: Initialization (Reset)/Functional Restriction Setting (Function)

    Initialization (Reset)/Functional Restriction Setting (FUNCTION) You can return the settings to their factory-preset values and restrict operations. SIZE 1. Hold down until “F” appears in the upper left corner of the screen. 2. While “F” appears, press order. FUNCTION ALL RESET ADJUSTMENT LOCK ADJUSTMENT LOCK TARGET RS-232C...
  • Page 30: Controlling The Monitor With A Pc (Rs-232C)

    Controlling the Monitor with a PC (RS-232C) You can control this monitor from a PC via RS-232C (COM port) on the PC. You can also connect multiple monitors via a daisy chain by using a PC. By assigning ID numbers to each monitor (see page 31), you can make input mode selection/adjustment or can check the status of a specific monitor. Precautions when the PN-ZB01 (optional) is attached • To control the monitor via RS-232C, set RS-232C/LAN SELECT to RS-232C. • You cannot use RS-232C and LAN control simultaneously. PC connection nOne-to-one connection with a PC Connect with RS-232 straight cable between the PC’s COM port (RS-232C connector) and the RS-232C input terminal on the monitor.
  • Page 31 nResponse code format When a command has been executed correctly Return code , 0A A response is returned after a command is executed. * If an ID number has been assigned Space (20 ID number of responding monitor When a command has not been executed Return code , 0A * If an ID number has been assigned Return code...
  • Page 32 Controlling the Monitor with a PC (RS-232C) nCommands for ID control The command examples shown on this page assume the following connection and ID number set up. ID number: 1 ID number: 2 IDST ... A monitor receiving this command sets its own ID number in the parameter field. Example: IDST0001 OK 001 ← The ID number of this monitor is set to 1. TIPS You can automatically assign ID numbers by using the IDST command with the Repeater control (see “Repeater control”...
  • Page 33: Setting Of The Gamma User Data

    nRepeater control This system has a function to allow setting of multiple monitors connected in a daisy chain using a single command. This function is called repeater control. You can use Repeater control function without assigning ID numbers. [Example] Set 1 Set 2 * If monitors are connected as shown above, you can execute a command like “Set all monitors’...
  • Page 34: Rs-232C Command Table

    Controlling the Monitor with a PC (RS-232C) RS-232C command table How to read the command table Command: Command field (See page 30.) Direction: W When the “Parameter” is set in the parameter field (see page 30), the command functions as described under “Control/Response Contents”. R The returned value indicated under “Reply” can be obtained by setting “????”, “ (repeater control) in the parameter field (see page 30). Parameter: Parameter field (See page 30.) Reply: Response (Returned value) *1: “●” indicates a command which can be used in power standby mode regardless of the STANDBY MODE setting.
  • Page 35: Screen Menu

    SCREEN menu Function Command Direction Auto ASNC CLoCK CLCK PHASE PHSE PoSitioNiNG PoSitioN of HPoS tHE LoNGESt DiRECtioN PoSitioN of VPoS tHE SHoRtESt DiRECtioN SizE SizE of tHE HSiz LoNGESt DiRECtioN SizE of tHE VSiz SHoRtESt DiRECtioN RESoLutioN LoNGESt HRES DiRECtioN RESoLutioN SHoRtESt...
  • Page 36: Picture Menu

    Controlling the Monitor with a PC (RS-232C) PICTURE menu Function Command AUTO AGIN ANALOG GAIN ANGA ANALOG OFFSET ANOF CONTRAST CONT BLACK LEVEL BLVL TINT TINT COLORS COLR SHARPNESS SHRP RGB INPUT RANGE (AV HDMI) AHDR RGB INPUT RANGE (PC HDMI) PHDR RGB INPUT RANGE (AV DVI) ADVR RGB INPUT RANGE (PC DVI) PDVR RGB INPUT RANGE (D-SUB) PDSR RGB INPUT RANGE (PC BNC) PBRR ADVANCED FLESH TONE FLES (When the input...
  • Page 37: Audio Menu

    AUDIO menu Function Command Direction TREBLE AUTR BASS AUBS BALANCE AUBL RESET ARST SETUP menu Function Command Direction OSD H-POSITION OSDH OSD V-POSITION OSDV MONITOR STDR MONAURAL AUDIO MONO LANGUAGE LANG POWER ON DELAy PWOD OPERATION MODE FNCM STANDBy MODE STBM OFF IF NO OPERATION ATOF...
  • Page 38: Option Menu

    Controlling the Monitor with a PC (RS-232C) OPTION menu Function Command DATE/TIME SETTING DATE DATE DISPLAY FORMAT DTFT TIME DISPLAY FORMAT TMFT SCHEDULE SC01- SC08 SCHEDULE BRIGHTNESS SB01- SB08 INPUT SELECT DVSL BNSL D-SUB SLDS HDMI HDSL AUDIO SELECT PC DVI-D ASDP PC HDMI ASHP PC D-SUB ASAP PC RGB ASCP AV DVI-D ASDA AV HDMI ASHA...
  • Page 39 MULTI menu Function Command Direction ENLARGE ENLG ENLARGE MODE EMAG EMHV IMAGE POSITION (M x N) EPHV IMAGE POSITION (2 x 2) EPOS IMAGE POSITION (3 x 3) EPOS IMAGE POSITION (4 x 4) EPOS IMAGE POSITION (5 x 5) EPOS ENLARGED THE LONGEST EPSH SCREEN DIRECTION POSITIONING THE SHORTEST EPSV DIRECTION BEZEL ADJUST BZCO BEZEL ADJUST BZCT BOTTOM BZCB RIGHT BZCR LEFT BZCL BEZEL WIDTH BZWT BOTTOM BZWB...
  • Page 40 Controlling the Monitor with a PC (RS-232C) PIP/PbyP menu Function Command PIP MODES MWIN PIP SIZE MPSZ PIP POS THE LONGEST MHPS DIRECTION THE SHORTEST MVPS DIRECTION PIP POS LD+SD BATCH MPOS PIP BLEND MWBL PIP SOURCE MWIP SOUND CHANGE MWAD MAIN POS (Main screen) MWPP PbyP2 POS (Sub screen) MW2P AUTO OFF MOFF Initialization/Functional Restriction Setting (FUNCTION) menu Function Command ALL RESET...
  • Page 41 Others Function Command Direction SCREEN SIZE (PC) WIDE SCREEN SIZE (AV) WIDE VOLUME VOLM MUTE MUTE INFORMATION MODEL INF1 SERIAL NO SRNO BRIGHT VLMP TEMPERATURE SENSOR DSTA TEMPERATURE ACqUISITION ERRT CAUSE OF LAST STANDBY MODE STCA Commands for setting of the GAMMA user data Function Command Direction...
  • Page 42: Controlling The Monitor With A Pc (Lan)

    Controlling the Monitor with a PC (LAN) When the PN-ZB01 (optional) is attached, your monitor can be connected to a LAN allowing you to control it from a PC on the LAN. You can also configure the monitor to send e-mail notification when it has a problem. The connection requires a commercially available LAN cable (UTP cable, Category 5, straight through). LAN terminal LAN cable (commercially available, straight) TIPS • You must assign an IP address to the monitor by following the procedures in “Settings to connect to a LAN”. (See the description on the right.) • Your PC must be installed with Internet Explorer (version 7.0 or later). • To control the monitor via LAN, set RS-232C/LAN SELECT to LAN. (See page 23.) • You cannot use RS-232C and LAN control simultaneously. Initializing personal information • When the PN-ZB01 (optional) is attached, personal information such as e-mail addresses can be registered in the monitor. Before transferring or disposing of the monitor,...
  • Page 43 ■ To set from a PC When the monitor is connected to a PC, LAN settings can be configured via PC. Set up process (1) Connect your monitor to a PC (2) Specify the PC’s IP address (3) Configure the monitor’s LAN settings (1) Connecting your monitor to a PC Connect a commercially available crossover LAN cable (UPT cable, Category 5) to the LAN port on the PC and this monitor. LAN terminal To LAN terminal LAN cable (commercially available, crossover) (2) Specifying the PC’s IP address To configure the monitor’s LAN settings, you must temporarily change the settings on the PC.
  • Page 44: Controlling With A Pc

    Controlling the Monitor with a PC (LAN) 6. Click on “LAN SETUP” under NETWORK. 7. Specify the “DHCP CLIENT”, “IP ADDRESS”,etc. DHCP CLIENT If your LAN has a DHCP server and you wish to obtain an address automatically, change this setting to “ON”. To set the address manually, set this to “OFF”. IP ADDRESS If the DHCP CLIENT is set to “OFF”, specify an IP address. SUBNET MASK If the DHCP CLIENT is set to “OFF”, specify the subnet mask. DEFAULT GATEWAY If the DHCP CLIENT is set to “OFF”, specify the default gateway. If you are not using a default gateway, specify “0.0.0.0”. 8. When the setting is changed, click [Apply]. 9. Check the message and click [OK]. 10. Exit Internet Explorer. 11. Restore the PC’s IP address jotted in Step 6, “(2) Specifying the PC’s IP address”. 12. Connect the monitor and the PC to the LAN. Caution • Wait 10 seconds after clicking [OK] before proceeding.
  • Page 45 ■ INFORMATION Information about this monitor appears. ■ CONTROL You can control the operations corresponding to the buttons POWER INPUT SIZE ) on the remote control unit. (See page 18.) TIPS • In standby mode, Power ON is the operation available. Controlling the Monitor with a PC (LAN) ■ ADJUSTMENT You can adjust these settings which are also available on the monitor’s menu. • SCREEN (See page 21.) • PICTURE (See page 21.) • PICTURE (ADVANCED) (See page 28.) • AUDIO (See page 22.) • SETUP (See page 22.)
  • Page 46: Network (Lan Setup)

    Controlling the Monitor with a PC (LAN) ■ NETWORK (LAN SETUP) This screen allows you to set the settings necessary when the monitor is connected to a LAN. DHCP CLIENT If your LAN has a DHCP server and you wish to obtain an address automatically, change this setting to “ON”. To set the address manually, set this to “OFF”. IP ADDRESS If the DHCP CLIENT is set to “OFF”, specify an IP address.
  • Page 47: Network (General)

    ■ NETWORK (GENERAL) This screen allows you to specify the general LAN settings. MONITOR NAME Specify a name for this monitor as it should appear on the Internet Explorer screen. AUTO LOGOUT TIME Specify the time (in minutes) to elapse before automatically disconnecting this monitor from the network. Specify in minutes from 1 to 65535. A value of ‘0’ will disable this function. DATA PORT Specify the TCP port number to use for exchanging data with the monitor.
  • Page 48: Mail (Recipient)

    Controlling the Monitor with a PC (LAN) ■ MAIL (RECIPIENT) This screen allows you to specify the recipients of the e-mail sent periodically or when the monitor has an error. RECIPIENT E-MAIL ADDRESSES Specify the e-mail addresses to send error notification e-mail CONDITION Specify the conditions to send mails. When you check PERIODICAL, specify the date and time to send the mails in the PERIODICAL setting. CONFIRMATION Sends test e-mail. This allows you to confirm that the e-mail settings are configured properly. Attach the log file to a TEMPERATURE/HARDWARE error e-mail.
  • Page 49 ■ SNMP You can configure settings related to SNMP. SNMP SETTING Set whether to enable or disable SNMP. VERSION Set the version of the SNMP to be supported. COMMUNITY NAME 1 to 3 Set the name of the community required for the access. USER 1 to 3 Set the user name, password, authentication method and other options required for access.
  • Page 50: Troubleshooting

    The input mode may change in the following cases: - When a computer is in standby mode. - When video play is stopped with a playback device. Power LED flashes red. “STATUS [xxxx]” appears in the corner of the screen. • Hardware has a problem. Turn off the monitor and request repair from your SHARP dealer. (When STATUS ALERT is set to OSD & LED. This varies depending on the setting.) When “AUTO DIMMING” is displayed. • When the internal temperature of the monitor rises excessively, the brightness of the backlight automatically decreases in order to prevent a further temperature rise.
  • Page 51 The monitor, however, will enter standby mode again if the cause of the temperature rise is not eliminated. (See page 8.) - C heck whether the monitor is placed at a location where a quick rise in temperature is likely. Internal temperature rises quickly if the vents on the monitor are blocked. - I nternal temperature rises quickly if dust accumulates inside the monitor or around the vents. Remove dust if possible. Ask SHARP dealer about removing internal dust. Troubleshooting...
  • Page 52: Specifications

    When STANDBY MODE is set to STANDARD. When STANDBY MODE is set to LOW POWER: 0.5 W As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.
  • Page 53: Specifications

    When mounting the monitor, be sure to use a wall-mount bracket that complies with the VESA-compatible mounting method. SHARP recommends using M6 screws and tighten the screws. Note that screw hole depth of the monitor is 3/8 inch (10 mm). Loose mounting may cause the product to fall, resulting in serious personal injuries as well as damage to the product.
  • Page 54 Specifications nCompatible signal timing (PC) Screen resolution VESA 640 × 480 800 × 600 848 × 480 1024 × 768 1152 × 864 1280 × 768 1280 × 800 1280 × 960 1280 × 1024 1360 × 768 1400 × 1050 1440 ×...
  • Page 55 PC/AV DVI-D input terminal pins (DVI-D 24 pin) Function TMDS data 2- 13 N.C. TMDS data 2+ 14 +5V TMDS data 2/4 shield 15 GND N.C. 16 Hot-plug detection N.C. 17 TMDS data 0- DDC clock 18 TMDS data 0+ DDC data 19 TMDS data 0/5 shield N.C. 20 N.C. TMDS data 1- 21 N.C. 10 TMDS data 1+ 22 TMDS clock shield TMDS data 1/3 shield 23 TMDS clock+ 12 N.C.
  • Page 56: Mounting Precautions (For Sharp Dealers And Service Engineers)

    (For SHARP dealers and service engineers) • When installing, removing or moving the monitor, ensure that this is carried out by at least 2 people. • Be sure to use a wall-mount bracket designed or designated for mounting the monitor. • This monitor is designed to be installed on a concrete wall or pillar. Reinforced work might be necessary for some materials such as plaster / thin plastic board / wood before starting installation. This monitor and bracket must be installed on a wall which can endure at least 4 times or more the weight of the monitor.
  • Page 57 PN-E702 Me EN11K(1)
