User's manual
Customer Service
US: 1-800-645-2986
NOTE: Mounting hardware is
not included.
Warning
• Assembly and installation of
equipment should be performed
by 2 people.
• Workers should use OSHA
approved safety and lifting
equipment.
Manual del usuario
Servicio de atención al Cliente
US: 1-800-645-2986

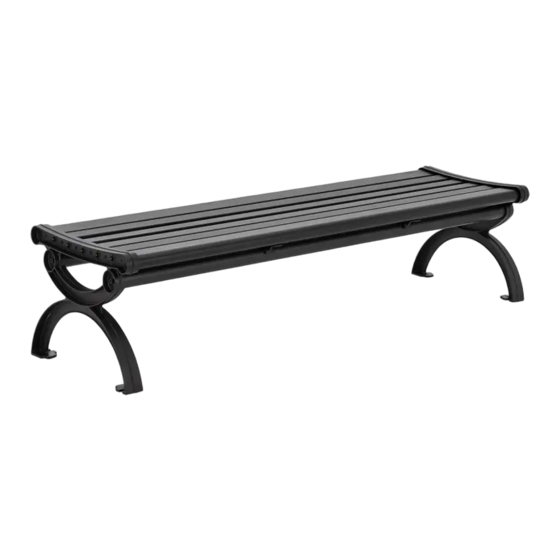

Aluminum Park Bench
Without Backrest
Models: 436977BK
Warning
• Ensure that the bench is
installed on a level surface.
• Ensure surface is of a strong
material, preferably concrete.
• Use
proper
hardware.
REF.
DESCRIPTION
A
Leg
B
Support
Tube
C
End Slats
D
Slats
E
Support
Ribs
F
Bolt
G
Self
Drilling
Screw
H
Screw
I
Allen Key
• Do not climb on, under or
through tables and benches.
• Two people required to move
tables and benches.
mounting
• Do not use if any parts of
bench or table are broken or
damaged.
• Inspect and tighten hardware
every six months.
• Replace rusted hardware and
damaged components.
1
Manuel de l'utilisateur
Service à la clientèle
Canada: 888-645-2986
Warning
QTY
2
2
2
3
2
4
20
14
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Global Industrial 436977BK
Summary of Contents for Global Industrial 436977BK
- Page 1 Manual del usuario Manuel de l'utilisateur Customer Service Servicio de atención al Cliente Service à la clientèle US: 1-800-645-2986 US: 1-800-645-2986 Canada: 888-645-2986 Aluminum Park Bench Without Backrest Models: 436977BK REF. DESCRIPTION PICTURE Support Tube End Slats Slats Support Ribs...
- Page 2 User Manual Aluminum Park Bench Without Backrest Step 1: Connect the 2 support tubes (Ref. B) with both legs (Ref. A) with bolts (Ref F). Do not fully tighten. Step 2: Place both support ribs (Ref. E) evenly spaced on top of the support tubes.
