HP xw4100 Hardware Installation page 3

b. Connect the male side of the straight adapter cable to the front cable header.
c. Connect the female side of the straight adapter cable to the white sound card header (J1).
6. Connect the CD audio cable to the CD_IN connector of the sound card. The other end should remain
connected to the optical disk drive.

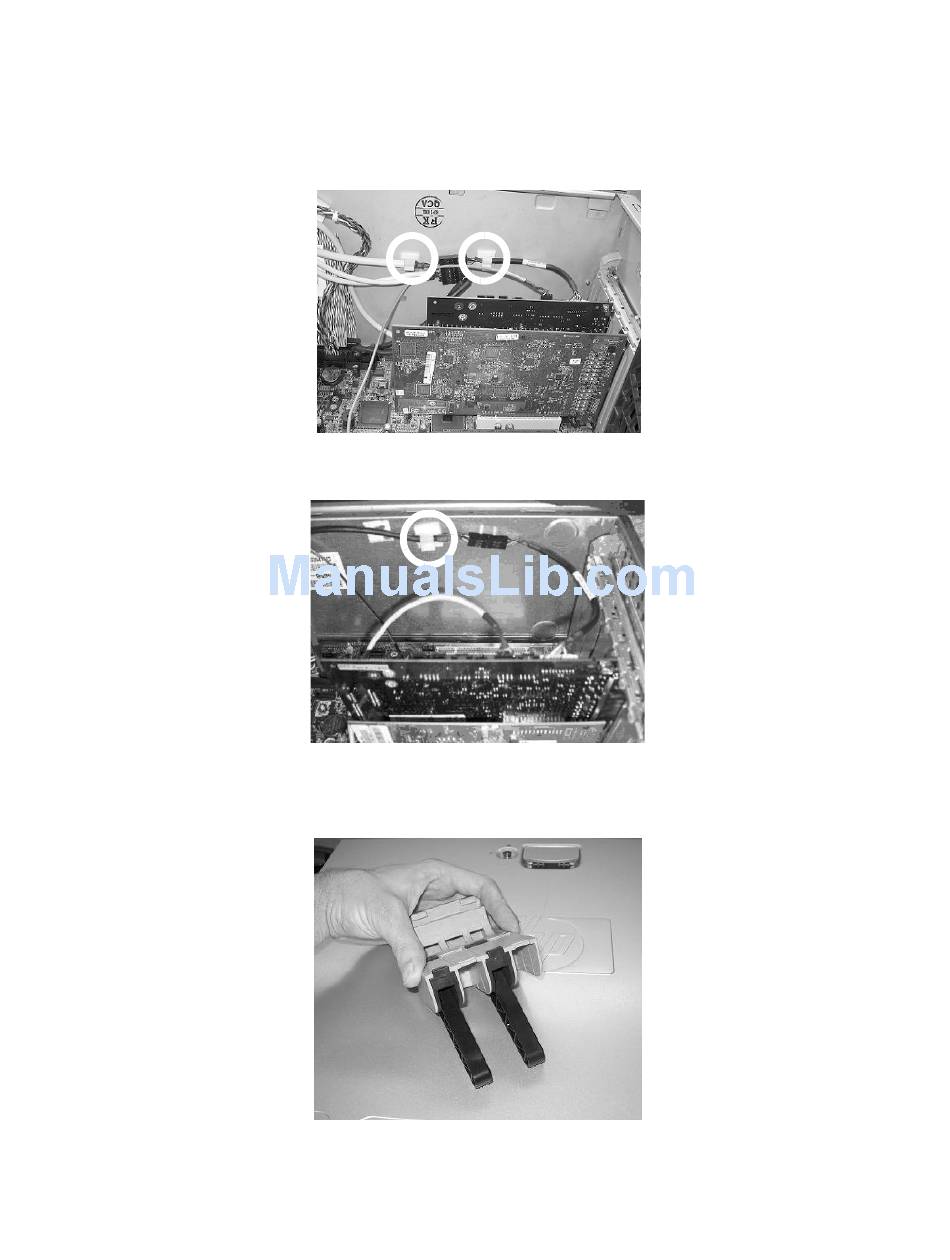

7. Fasten the adaptor cable and/or front I/O cables to the bottom of the chassis depending on the model as
shown below. Add the new clip in the location shown and then fasten the cable(s) into the clip(s).
For xw8000:
Cable routing for xw8000
For all other workstations:
Cable routing for all other workstations
8. Attach the black xw8000 card support arm to the green card support bracket in the slot that aligns with
the card position (PCI slot 1 or 2).
Audigy retainer clip
