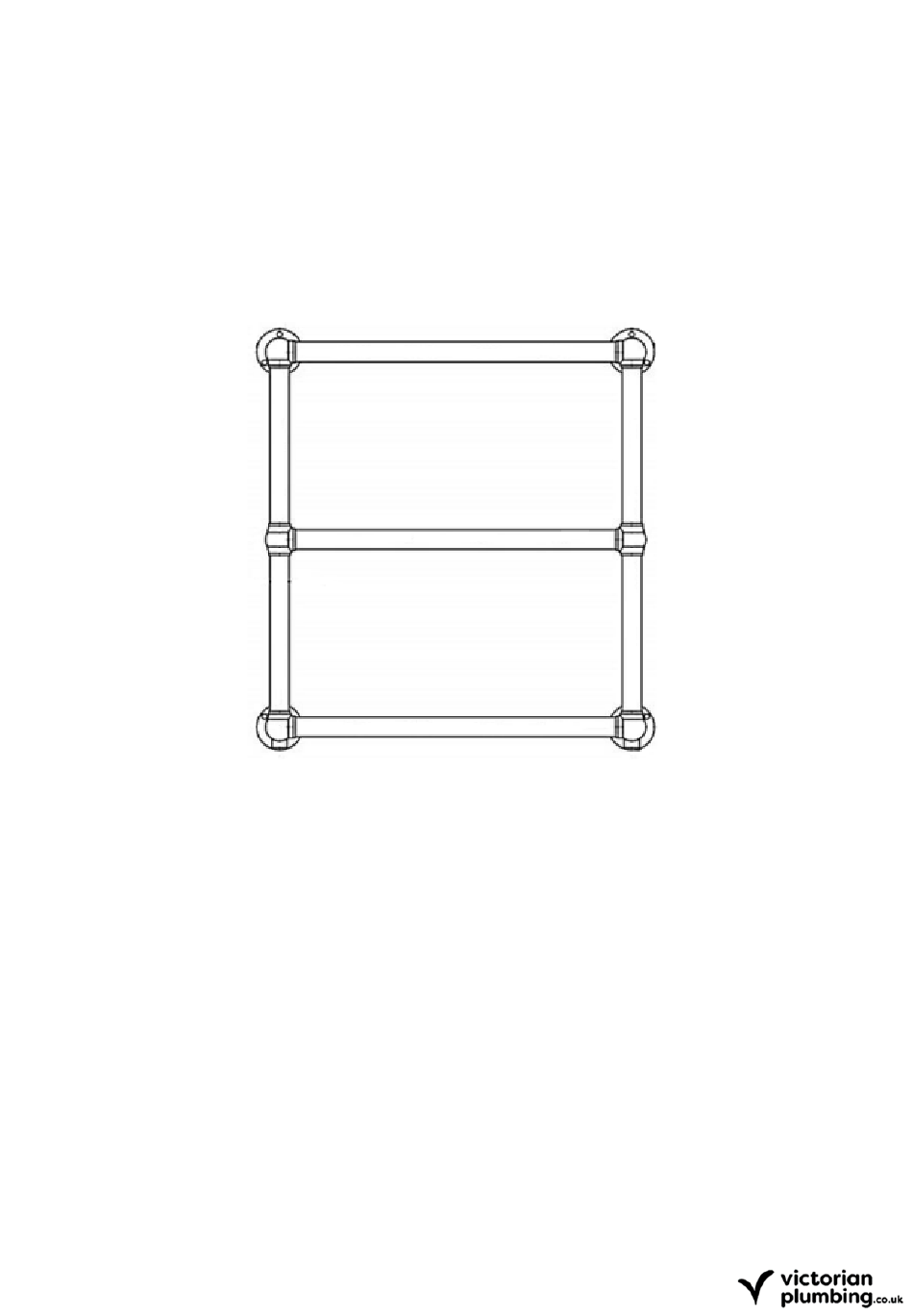

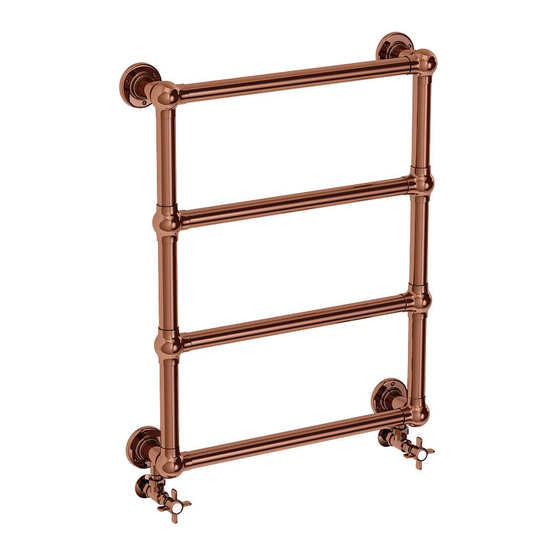

  • Page 1 Installation Guide...
  • Page 2 Check & Inspect Here at Victorian Plumbing, pride ourselves on selecting products from reputable manufacturers manufacture to our exacting standards and quality control measures.
  • Page 3 Tools required for installation (not supplied) Please check you have all the items below:...
  • Page 4 Step 1 Position the radiator on your chosen wall and using a spirit level check that the radiator is level both vertically and horizontally. Using a pencil, mark the top & bottom fixing brackets ready for drilling & securing. Drain down the heating system in preparation to connect the radiator.
  • Page 5 Step 2 Drill the wall using an appropriately sized drill bit and insert the rawl plugs. Secure the top and bottom brackets using the screws provided to the wall. Step 3 Wrap the threaded valve tails with P.T.F.E tape and insert the tails into the radiator tapping’s.
  • Page 6 Step 4 Install both the flow and return pipework. Step 5 Refill the heating system and using a screwdriver, bleed the radiator through the air vent plug. Step 6 Switch on the central heating and bring the radiator up to full heat and check all joints for leaks.
  • Page 7 After installation • Use a screwdriver/vent key to open the air vent, open the valve and let the water rush into radiator. • Check all connections for leaks. • Once water overflows from the air vent, the radiator is fully purged of air. •...
