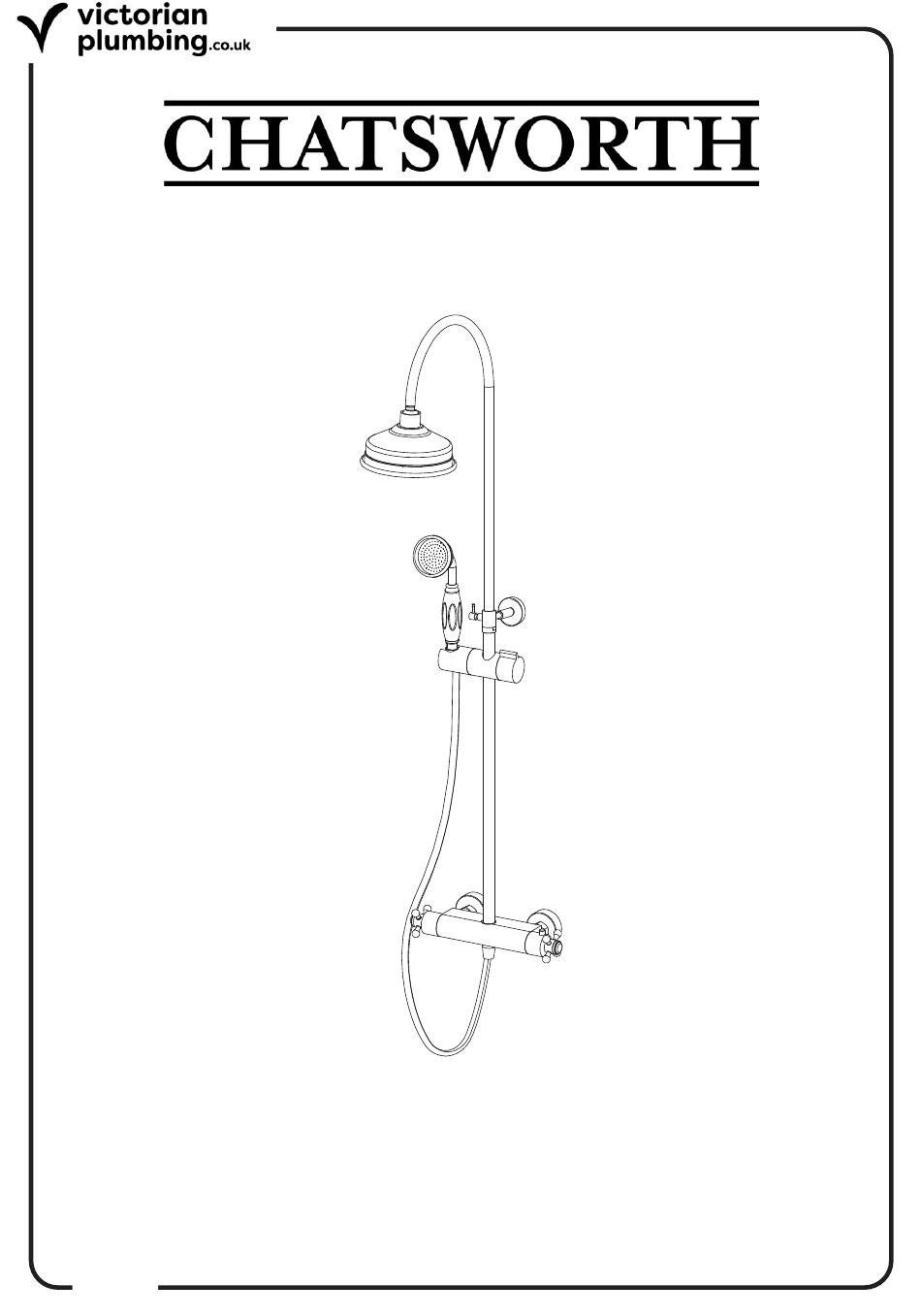

- Page 1 Traditional Thermostatic Shower Fitting Instructions Please follow them carefully and leave this manual with end user V1.05.24...
-
Page 2: Before You Begin
Before you begin: We recommend that this product is installed by a qualified tradesperson, Victorian Plumbing Ltd. accept no liability for products incorrectly installed, or where the correct testing procedures have not been adhered to, thus resulting in the escape of water and consequential damage. -
Page 3: Installation Steps
Installation Steps: Note! When installing the pipework, ensure it is set at the correct distance apart (150mm) and • securely fixed in place. • Diagrams are for illustration purposes only. Your shower may superficially differ from this drawing however the installation guide steps still apply. Step 1: •... - Page 4 Step 5: Step 6: • Confirm the position of the ‘Fixing Plate’, drill a hole in the wall for the fixing plate. Ensure that there are no hidden pipes/ cables behind the wall marking. Use the ‘Wall Screw’ provided to fix the fixing plate onto the wall.
- Page 5 Changing Thermostatic Cartridge If you need to change the thermostatic cartridge, Please follow these steps: Fig. 1 Turn off the mains water supply, make sure the flow handle is turned off. Take off the handle cap and Temperature Temperatu remove the screw (Fig. 1). locating ring locating r Remove the temperature location...
-
Page 6: Flow Control Valve
Flow con Changing Flow Control Valve If you need to change the thermostatic cartridge, Please follow these steps: Flow control valve Turn off the mains water supply. Take off the handle cap and remove the screw (Fig. 1). Loosen the nut with a wrench and take out the flow control valve (Fig. 2) Place the new flow control valve into the valve body and tighten the nut with a wrench (Fig. -
Page 7: Troubleshooting
Opertation: • Turning the right handle controls the water temperature. To prevent scalding, a safety Flow rate feature of the shower includes a temperature Temperature stop at 38 degrees. To override this function Override Button the button on the handle will need to be pressed. - Page 8 Recycling and Disposal: Please recycle the packaging in accordance with your local government regulations on waste handling and follow the same advice at the end of the products life. www.victorianplumbing.co.uk V1.05.24...
