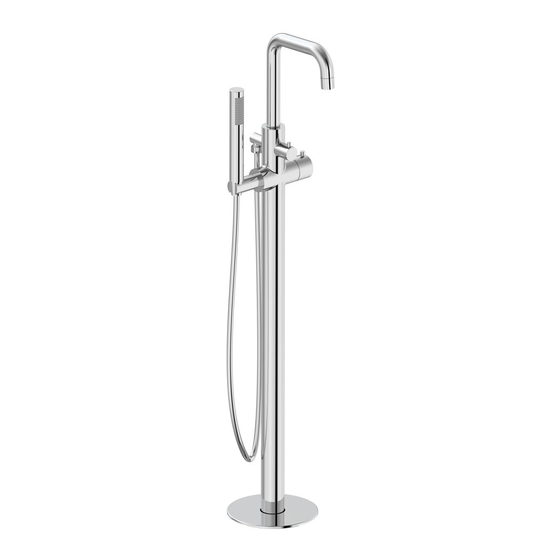

- Page 1 Thermostatic Freestanding Bath Shower Mixer Tap Fitting Instructions Please follow them carefully and leave this manual with end user V2.09.24...
-
Page 2: Before You Begin
Before you begin: We recommend that this product is installed by a qualified tradesperson, Victorian Plumbing Ltd. accept no liability for products incorrectly installed, or where the correct testing procedures have not been adhered to, thus resulting in the escape of water and consequential damage. -
Page 3: Installation
Preparation (Solid Floor): • Create a recess in the floor at a suitable depth to house the ‘Thermostatic Base’, allowing for the hot & cold connections to fit within the finished floor surface. Floor Surface Cold Preparation (Upstairs Floor): • Create a timber platform within the determined floor space, allowing the ‘Thermostatic Base’... - Page 4 Step 3: • For Solid Floors: Secure the ‘Thermostatic Base’ over the ‘Rawl Bolts’ in the floor using the washers and hex bolts provided, tighten with an adjustable wrench. Warning: Check the chosen floor space for any pipes/cables prior to drilling! •...
- Page 5 Step 6: Step 7: • Unscrew the ‘Fixing • Insert the bottom of the Bracket’ from the bottom ‘Mixer Body’ into the of the ‘Mixer Tap’, then top hole of the slide the ‘Cover Plate’ ‘Thermostatic base’, through the tap. then secure the ‘Fixing Bracket’...
-
Page 6: Operation
Operation: Diverter Control Flow & Temperature Control Maintenance: If the water flow is less than normal and temperature control is imprecise after a period of usage. It is often due to the poor water which blocks the small filter net. The cleaning method: First, turn off the water supply, remove cover plate and mixer tap. -
Page 7: Troubleshooting
Troubleshooting FAULT POSSIBLE CAUSE Closed isolation valve. Tap does not turn on Mains water supply turned off. This is normal for a short time after using the tap. Water dripping from tap If water continues to drip, possible build up of limescale in the cartridge valve. - Page 8 www.victorianplumbing.co.uk V2.09.24...
