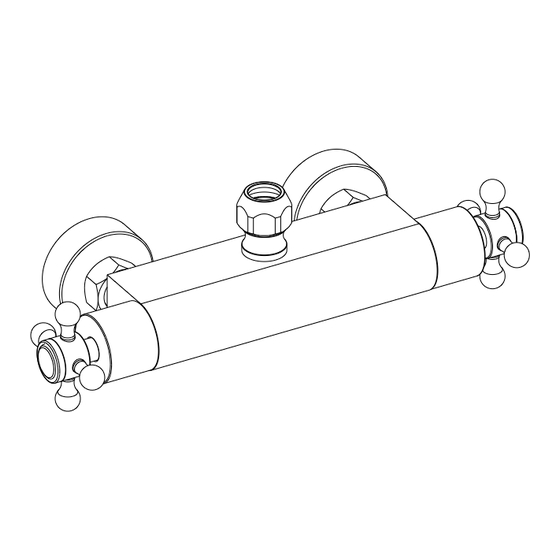

- Page 1 Traditional Crosshead Top Outlet Thermostatic Bar Shower Valve Fitting Instructions Please follow them carefully and leave this manual with end user V4.05.24...
-
Page 2: Before You Begin
Before you begin: We recommend that this product is installed by a qualified tradesperson, Victorian Plumbing Ltd. accept no liability for products incorrectly installed, or where the correct testing procedures have not been adhered to, thus resulting in the escape of water and consequential damage. -
Page 3: Installation Diagram
Installation Diagram: Step 1: • Place the ‘Fixing Brackets’ over the hot & cold outlets then using a pencil, mark the fixing points to the wall ready for drilling. Ensure the markings are level. Step 2: • Place the ‘Fixing Brackets’ to one side. - Page 4 Changing Thermostatic Cartridge If you need to change the thermostatic cartridge, Please follow these steps: Fig. 1 Turn off the mains water supply, make sure the flow handle is turned off. Take off the handle cap and Temperature Temperatu remove the screw (Fig. 1). locating ring locating r Remove the temperature location...
-
Page 5: Flow Control Valve
Flow con Changing Flow Control Valve If you need to change the thermostatic cartridge, Please follow these steps: Flow control valve Turn off the mains water supply. Take off the handle cap and remove the screw (Fig. 1). Loosen the nut with a wrench and take out the flow control valve (Fig. 2) Place the new flow control valve into the valve body and tighten the nut with a wrench (Fig. -
Page 6: Operation Notice
Changing Flow Control Valve Cont. Notice: Avoid turning the valve again when re-assembling the handle. Take out the handle to check that the flow mark is in the right position, then assemble the handle with screw (Fig. 5 and Fig. 6). Important Information Operation Notice: The work condition for use of this product is cold water 4-29°C, hot water... -
Page 7: Troubleshooting
Troubleshooting FAULT POSSIBLE CAUSE Hot and cold supplies have been plumbed the wrong direction. Shower only runs hot or cold after installation Faulty thermostat. Insufficient water pressure. Check the hot water supply temperature. Shower does not run hot Maximum temperature needs adjusting, see enough temperature adjustment. - Page 8 www.victorianplumbing.co.uk V4.05.24...
