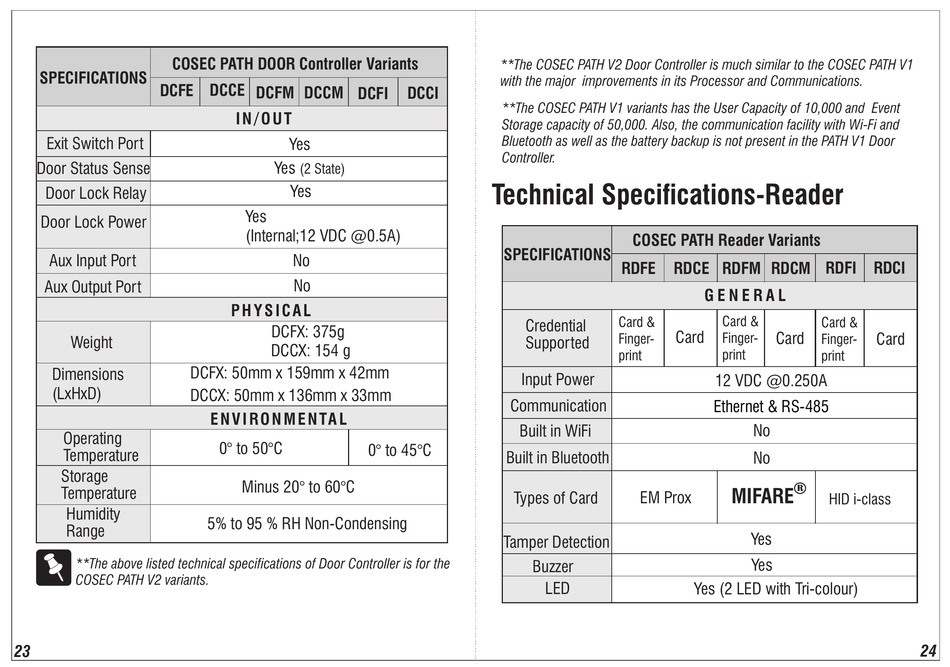

COSEC PATH DOOR Controller Variants

SPECIFICATIONS

DCFE DCCE

Exit Switch Port

Door Status Sense

Door Lock Relay

Door Lock Power

Aux Input Port

Aux Output Port

Weight

DCFX: 50mm x 159mm x 42mm

Dimensions

(LxHxD)

DCCX: 50mm x 136mm x 33mm

Operating

Temperature

Storage

Temperature

Humidity

Range

**The above listed technical specifications of Door Controller is for the

COSEC PATH V2 variants.

DCFM

DCCM

DCFI

I N / O U T

Yes

(2 State)

Yes

(Internal;12 VDC @0.5A)

P H Y S I C A L

DCFX: 375g

DCCX: 154 g

E N V I R O N M E N TA L

0° to 50°C

0° to 45°C

Minus 20° to 60°C

5% to 95 % RH Non-Condensing

**The COSEC PATH V2 Door Controller is much similar to the COSEC PATH V1

with the major improvements in its Processor and Communications.

DCCI

**The COSEC PATH V1 variants has the User Capacity of 10,000 and Event

Storage capacity of 50,000. Also, the communication facility with Wi-Fi and

Bluetooth as well as the battery backup is not present in the PATH V1 Door

Controller.
