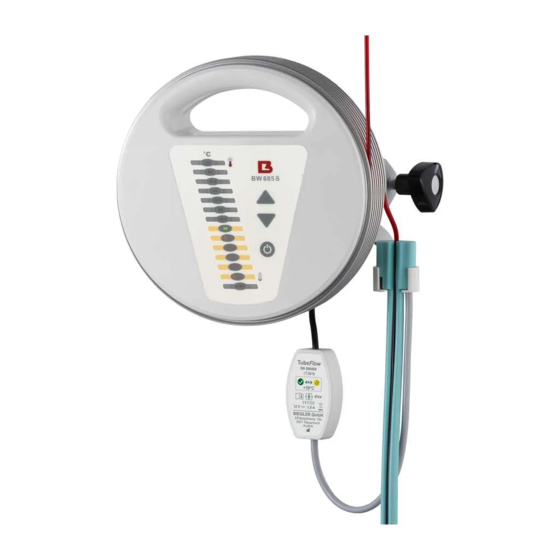

Instructions for Use
BW 685 / BW 685 S
Blood and Infusion Warmer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BW 685 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Biegler BW 685

Summary of Contents for Biegler BW 685

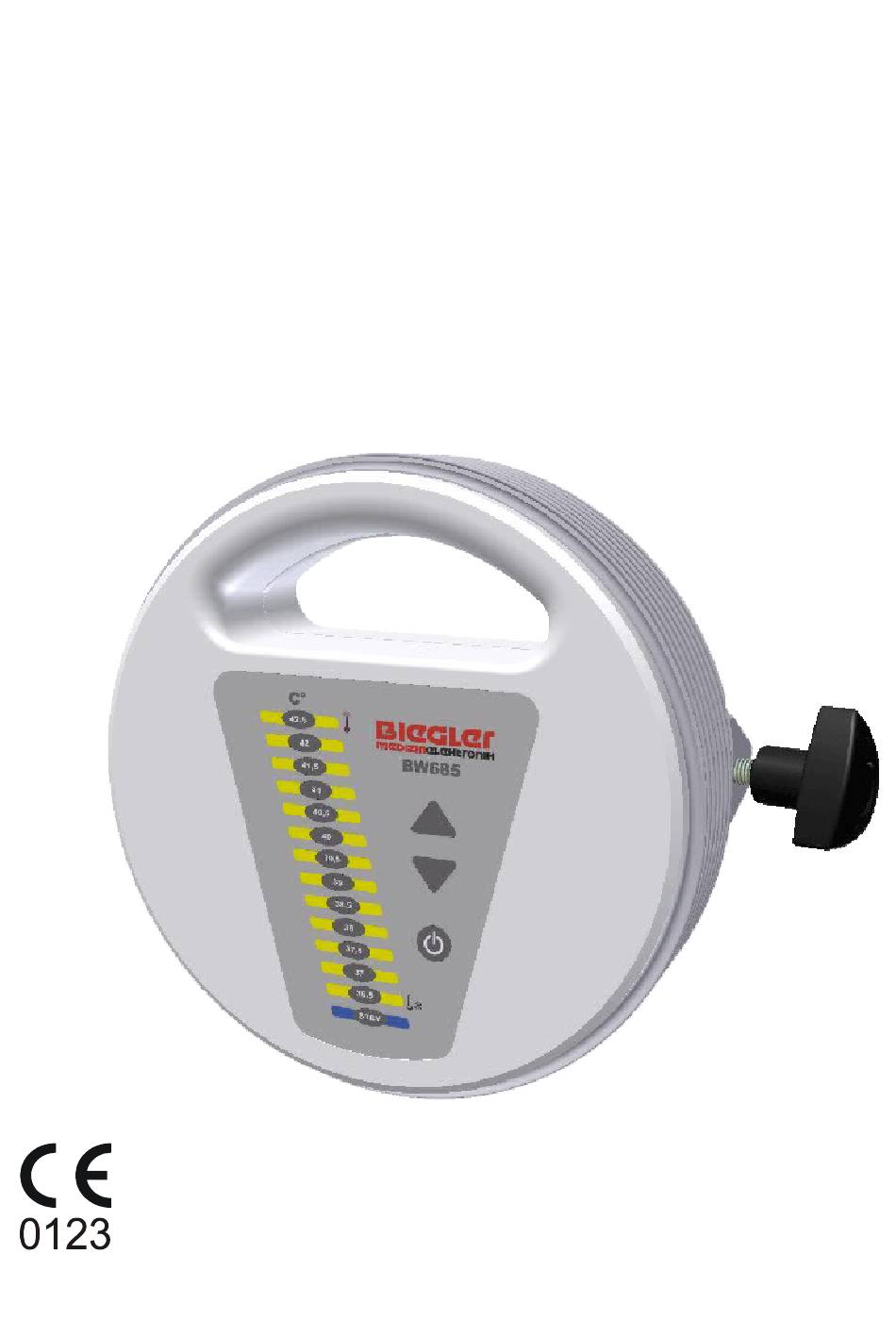

  • Page 1 Instructions for Use BW 685 / BW 685 S Blood and Infusion Warmer...
  • Page 2 Instructions for Use – BW 685 / BW 685 S BIEGLER DE - Edition 02 / 2007 DE - Edition 02 / 2007...
  • Page 3 BIEGLER Instructions for Use – BW 685 / BW 685 S IMPORTANT: These instructions are an essential part of the device. They must therefore be kept in a suitable place near the device and should accompany the device if it is transferred to other users.

  • Page 4: Table Of Contents

    Instructions for Use – BW 685 / BW 685 S BIEGLER Table of contents 1 WARNINGS AND SAFETY INSTRUCTIONS ..........5 2 DESCRIPTION ..................... 7 2.1 GENERAL DESCRIPTION ............... 7 2.2 SCOPE OF DELIVERY ................7 2.3 CONSUMABLE MATERIALS ..............8 3 INITIAL OPERATION ..................

  • Page 5: Warnings And Safety Instructions

    BIEGLER Instructions for Use – BW 685 / BW 685 S WARNINGS AND SAFETY INSTRUCTIONS • In the event of any suspected malfunction while in operation, the device should be immediately removed from service and not used for infusions or transfusions until appropriate investigations have demonstrated that there has been no impairment.
  • Page 6 Tubeflow BW 685 S: • The Biegler Tubeflow may only be clamped to the Biegler blood warmer BW 685 S with the fixing clamp according to the diagram in the chapter "Initial operation". • Do not kink, cover, warm or cool the Biegler Tubeflow. Do not cover the Tubeflow with cloths or dressing material.

  • Page 7: Description

    DESCRIPTION 2.1 GENERAL DESCRIPTION The BIEGLER BW 685 / BW 685 S is a warmer for infusions or transfusions and operates on the basis of a continuous flow warmer, where the heat from the heat exchanger is transferred via the extension tubing to the liquid flowing within it.

  • Page 8: Consumable Materials

    Instructions for Use – BW 685 / BW 685 S BIEGLER 2.3 CONSUMABLE MATERIALS Various consumable materials are available according to requirements. For use with BW 685 or BW 685 S without tube warmer: Extension set 3.5 m Order no 35000 Extension set 4.6 m...

  • Page 9: Initial Operation

    Entry of liquid 10 Exit of liquid Flow direction Fix the BIEGLER BW 685 / BW 685 S firmly to the infusion stand using the clamps at the back (Diag.1/8). Only use infusion stands, tripods or equipment rails that are sufficiently stable.
  • Page 10 Select suitable consumable materials. See the section "Consumable materials". Prepare infusion or transfusion. Important: The length of the tube between the BW 685 / BW 685 S and the patient must be at least 40 cm and the tube must not be stretched. Diag. 2...
  • Page 11 Instructions for Use – BW 685 / BW 685 S Optional accessory tube warmer Biegler Tubeflow for BW 685 S: The connector as per diagram 3/2 must be connected to the BW 685 S before starting the optional tube warmer.

  • Page 12: Alarms

    Instructions for Use – BW 685 / BW 685 S BIEGLER The Tubeflow is also activated when the BW 685 S is turned on; this is indicated by a green control light on the Tubeflow. 3.2 ALARMS The BW 685 / BW 685 S can trigger two types of temperature alarm: The low temperature alarm is activated when the temperature of the heat exchanger drops below 36.5°C.

  • Page 13: Cleaning And Disinfection

    "Periodic inspections") CLEANING AND DISINFECTION The BW 685 / BW 685 S and the optional tube warmer Tubeflow may only be cleaned using a soft cloth with a water-soluble, non-aggressive cleaning agent or a special cleaning agent for plastics.

  • Page 14: Periodic Inspections

    CHECKING THE WARM-UP PERIOD This is the time taken by the BW 685 / BW 685 S to heat up to 38.5°C from room temperature. The device is malfunctioning if it takes much longer than one minute.
  • Page 15 BIEGLER Instructions for Use – BW 685 / BW 685 S For reasons of safety, short beeping sounds are given at intervals of a second in this operational mode and the STANDBY indicator (Diag.1/4) flashes. There is a malfunction if the low temperature alarm is not triggered.

  • Page 16: Manufacturer Liability

    Instructions for Use – BW 685 / BW 685 S BIEGLER MANUFACTURER LIABILITY The manufacturer and the supplier of the device reject all liability if: • the device is not used in accordance with the instructions for use • the user is not sufficiently informed about the functioning of the device on the basis of the instructions for use and the safety instructions •...

  • Page 17: Return Of Devices

    The warranty will also be void if original Biegler materials were not used as replacement parts, or measures for repair were undertaken by persons not authorised by the manufacturer or supplier.

  • Page 18: Electromagnetic Compliance

    Instructions for Use – BW 685 / BW 685 S BIEGLER 10 ELECTROMAGNETIC COMPLIANCE Table 201 Guidelines and manufacturer's declaration – electromagnetic emission The BW685 is intended for use in the environment specified below. The customer or the user of the BW685 should assure that it is used in such an environment.
  • Page 19 BIEGLER Instructions for Use – BW 685 / BW 685 S Table 202 Guidelines and manufacturer's declaration – electromagnetic interference resistance The BW685 is intended for use in the electromagnetic environment specified below. The customer or the user of the BW685 should assure that it is used in such an environment.
  • Page 20 Instructions for Use – BW 685 / BW 685 S BIEGLER Table 204 Guidelines and manufacturer's declaration – electromagnetic interference resistance to The BW685 is intended for use in the electromagnetic environment specified below. The customer or the user of the BW685 should assure that it is used in such an environment.

  • Page 21: Manufacturer's Declaration

    These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. MANUFACTURER'S DECLARATION The blood and infusion warmer BW 685 / BW 685 S is a medical product as defined by Directive 93/42/EEC. This is documented by attaching the CE mark.

  • Page 22: Symbols

    Instructions for Use – BW 685 / BW 685 S BIEGLER SYMBOLS Certifies compliance with the Directive 93/42/EEC 0123 Observe the instructions for use! Do not dispose of this product as unsorted municipal waste Control for increasing the temperature setting...

  • Page 23: Operating And Storage Conditions

    BIEGLER Instructions for Use – BW 685 / BW 685 S OPERATING AND STORAGE CONDITIONS Permissible environmental conditions for transport and storage: Temperature: 10 – 40°C Relative humidity: 30 – 75% Air pressure: 700 – 1060 hPa The ambient operating temperature must be in the range of 10 – 30°C.

  • Page 24: Manufacturer

    Instructions for Use – BW 685 / BW 685 S BIEGLER MANUFACTURER Biegler GmbH Allhangstrasse 18a 3001 Mauerbach Austria Tel. +43 1 979 21 05 Fax +43 1 979 21 05 16 email: office@biegler.com www.biegler.com DE - Edition 02 / 2007...
  • Page 25 BIEGLER Instructions for Use – BW 685 / BW 685 S Space for notes: DE - Edition 02 / 2007...
