- Page 1 Operating instructions ESH 04 Emergency warmer Version 2019-05-27 40-201-04...
- Page 2 ESH 04 IMPORTANT These operating instructions are essential for operating the device. They must therefore be kept in a suitable place near the device, and should be kept with the device if it is given to other users. This instruction for use is valid for devices with serial number 6574 or higher.
-
Page 3: Table Of Contents
ESH 04 Table of contents Warnings and safety instructions ..........4 Description ..................6 General description ..............6 Intended Use ................6 Indication ................7 Contraindication / Exclusions from Intended Use ....7 ... -
Page 4: Warnings And Safety Instructions
The device must only be used with electrical installations that comply with the standards and regulations in force. Only use original BIEGLER parts in conjunction with the ESH 04: mains adaptor 30 W E2EFMW3, PowerPort 12 V. Unplugging the mains plug is the only safe way to disconnect from the ... - Page 5 ESH 04 All extraneous influences such as electromagnetic waves or high temperatures are to be kept to a minimum. The device may interfere with other devices set up in the vicinity or vice versa. It is subject to specific preventive measures in terms of electromagnetic compatibility (EMC).
-
Page 6: Description

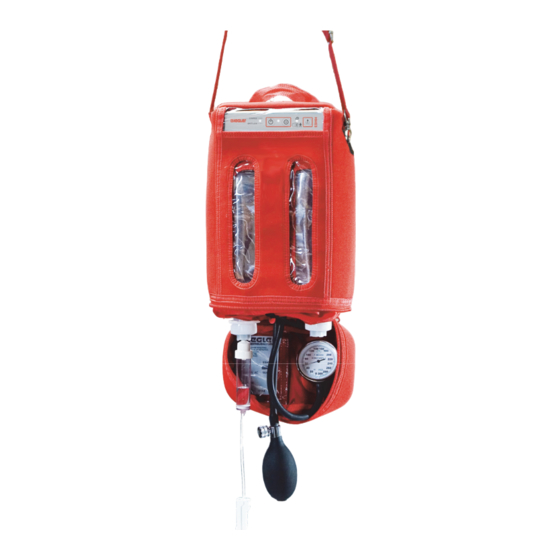

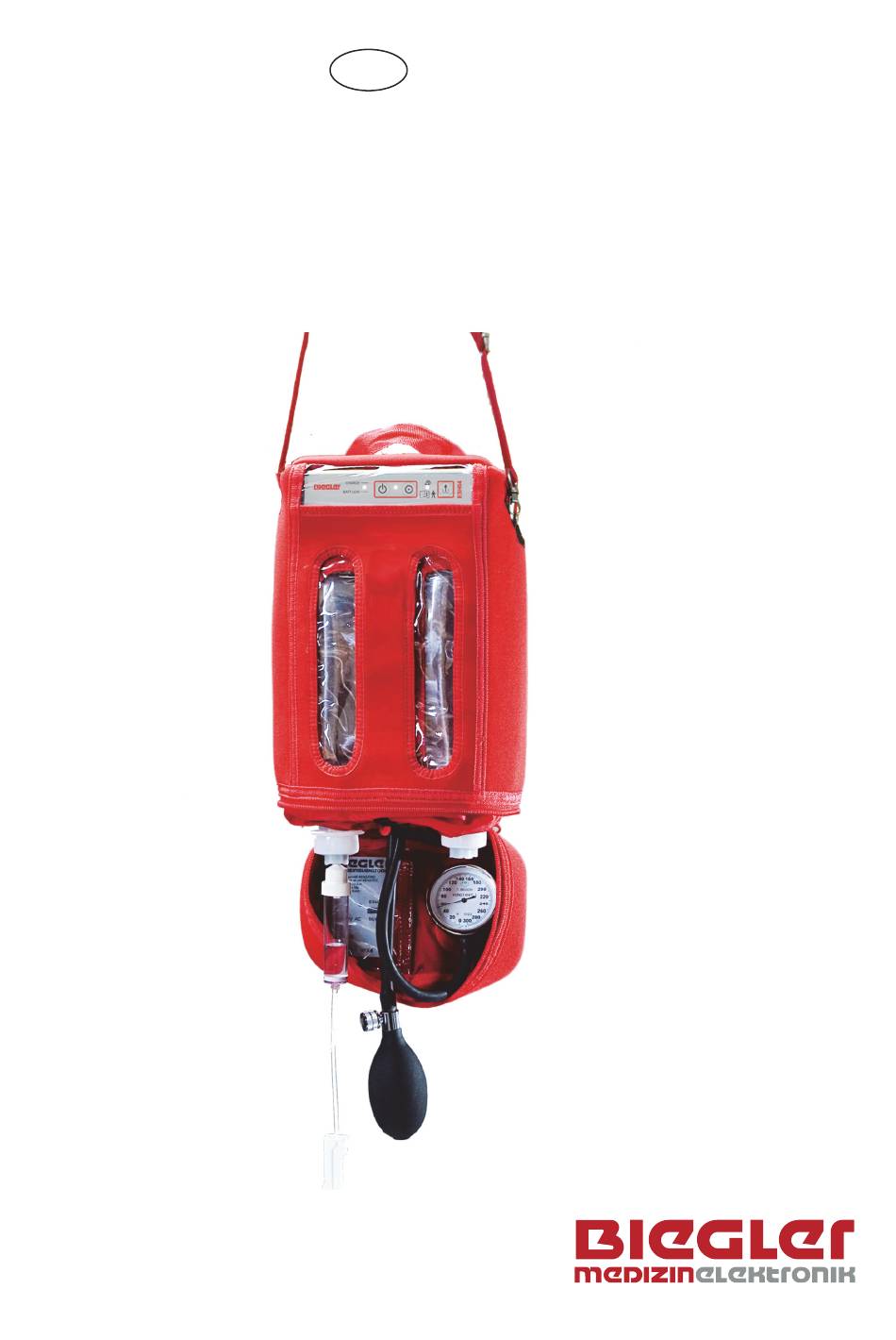

Emergency warmer ESH 04 LB1000004 The ESH 04 emergency warmer can keep two pre-warmed 500 ml infusion bottles at a control temperature of 37 °C for up to 90 minutes. The device is suitable for continuous operation when mains-connected, and it can also pre-warm infusion bottles in this mode. -
Page 7: Indication
ESH 04 INDICATION The Emergency Warmer ESH 04 is applied when it is necessary to administer infusions for volume substitution (liquid) in a warmed state. CONTRAINDICATION / EXCLUSIONS FROM INTENDED USE Glasbottles must not be used with ESH 04. The Emergency Warmer ESH 04 must not be used with blood, plasma and enteral nutrition solutions. -
Page 8: Starting The Device
STARTING THE DEVICE Observe the operating instructions! Users must thoroughly familiarize themselves with the contents of these instructions before putting the system in operation. The ESH 04 and accessories may only be used by qualified specialized staff. SETTING UP PROCEDURE Setting up the system Open the zip along the bottom of the emergency warmer. - Page 9 ESH 04 Charge-LED ON-LED Error-LED Standby Safety- button Setting up with mains adaptor Connect the emergency warmer using the mains adaptor supplied (110 - 240 V). When connecting the mains adaptor and the emergency warmer, the alarm LED may be briefly activated. This is a self-test function.
- Page 10 ESH 04 Note: The safety button must always be pressed simultaneously along with the desired function to prevent only one of the buttons being pressed inadvertently. Starting up for use Press the buttons simultaneously to switch on the device ...
-
Page 11: Alarms
LED. The safety shutdown is triggered by the hardware when the temperature exceeds 55 °C. The safety shutdown can also be triggered by external factors, e.g. excessive exposure to sunlight. Error overview The ESH 04 triggers Technical Alarms. Self-test High temperature Condition Self-test detects a critical error... -
Page 12: Maintenance
The operator position is in front of the device. MAINTENANCE The ESH 04 has been designed to be maintenance free. For long-term maintenance of quality and functional safety, observe following points: Always keep the device clean (see the "Cleaning and disinfection"... -
Page 13: Periodic Inspections
PERIODIC INSPECTIONS The periodic technical safety inspections (according to the local standards in force - e.g. EN 62353) on the ESH 04 must be carried out at least every 12 months, by persons authorized to carry out such inspections based on their training, knowledge and practical experience. -
Page 14: Warranty Conditions
The warranty will also be void if original Biegler materials were not used as replacement parts, or measures for repair were undertaken by persons not authorized by the manufacturer or supplier. -
Page 15: Electromagnetic Compliance Levels
ESH 04 ELECTROMAGNETIC COMPLIANCE LEVELS 10.1 EMISSION Test Limit Conducted emission CISPR 11, Group 1, Class B Radiated emission CISPR 11, Group 1, Class B Harmonic current IEC 61000-3-2, Class A emissions Voltage fluctuations and IEC 61000-3-3, Complies flicker 10.2 IMMUNITIY TEST LEVELS... -
Page 16: Manufacturer's Declaration
25/30 cycles at 0° (IEC 61000-4-11) 0 % U for 250/300 cycles at 0° MANUFACTURER’S DECLARATION The ESH 04 is a medical products as defined by Directive 93/42/EEC. This is documented through the CE mark. Notified Body: TÜV SÜD Product Service, Approval Number... -
Page 17: Symbols
ESH 04 SYMBOLS Certifies compliance with the Directive 93/42/EEC Observe the directions for use Do not dispose of this product as unsorted municipal waste Serial number Safety button (This button must always be pressed simultaneously along with the desired function to prevent... -
Page 18: Operating And Storage Conditions
ESH 04 OPERATING AND STORAGE CONDITIONS The ESH 04 may be used outside buildings and in rescue vehicles if the permissible ambient conditions for the device and accessories are given: Transport Transient Operating storage operating conditions Temperature -20 to +60 °C -20 to +50 °C... -
Page 19: Manufacturer
ESH 04 Mains adaptor Type designation: 30 W E2EFMW3 Input: 100 – 240 V AC | 50-60 Hz | 590 mA Output: 12 V DC | 2.5 A max. MANUFACTURER Biegler GmbH Allhangstrasse 18a 3001 Mauerbach Austria Tel. +43 1 979 21 05 Fax +43 1 979 21 05 16 email: office@biegler.com...
