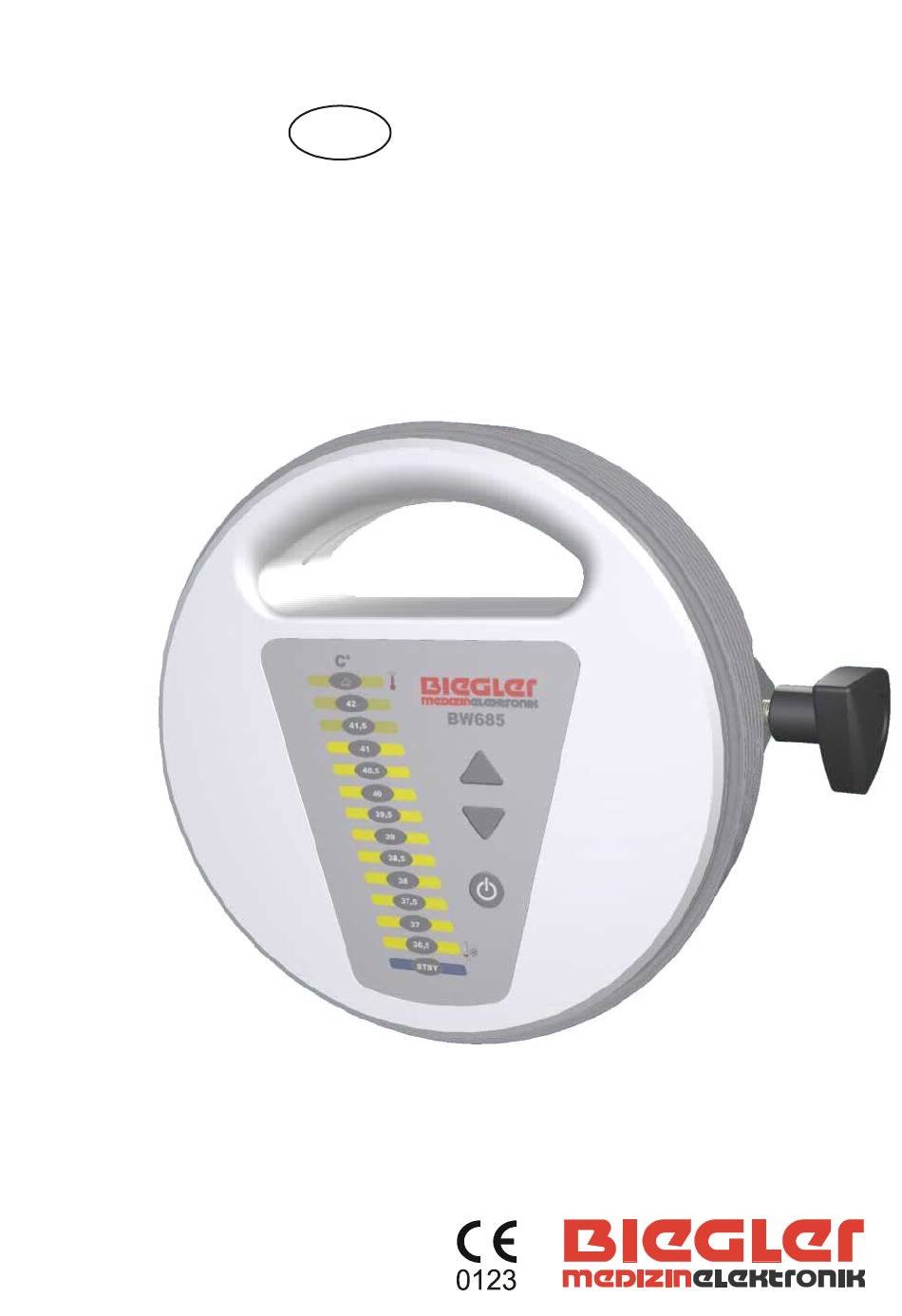

- Page 1 Directions for use BW 685 / BW 685 S Blood and Infusion Warmer TubeFlow Tube warmer...
- Page 2 BW 685 / BW 685 S / TubeFlow Edition 06 / 2008...
- Page 3 BW 685 / BW 685 S / TubeFlow IMPORTANT: These directions are essential for operating the device. They must therefore be kept in a suitable place near the device, and should be kept with the device if it is given to other users.
-
Page 4: Table Of Contents
BW 685 / BW 685 S / TubeFlow Table of contents 1 WARNINGS AND SAFETY INSTRUCTIONS ..........5 2 DESCRIPTION ..................... 8 2.1 GENERAL DESCRIPTION ............... 8 2.2 SCOPE OF DELIVERY ................8 2.3 CONSUMABLES ..................9 3 INITIAL OPERATION ................10 3.1 INITIAL OPERATION OF THE DEVICE .......... -
Page 5: Warnings And Safety Instructions
• Persons and services authorized by BIEGLER must carry out repairs and modifications on the device. • Periodic technical safety inspections must be carried out as described in the "Periodic inspections"... - Page 6 Only operate the TubeFlow with BW 685 S. • The Biegler TubeFlow may only be clamped to the Biegler blood warmer BW 685 S with the fixing clamp according to the diagram in the chapter “Initial operation”. • Do not bend, cover, warm or cool the Biegler TubeFlow. Do not cover the TubeFlow with cloths or dressing material.
- Page 7 BW 685 / BW 685 S / TubeFlow • Only use items packaged with an orange-striped sterility indicator (green stripe = unsterile; orange stripe = sterile)
-
Page 8: Description
DESCRIPTION 2.1 GENERAL DESCRIPTION The BIEGLER BW 685 / BW 685 S is a warmer for infusions or transfusions and operates on the basis of a continuous flow warmer, where the heat from the heat exchanger is transferred via the extension tubing to the liquid flowing within it. -
Page 9: Consumables
BW 685 / BW 685 S / TubeFlow 2.3 CONSUMABLES Various consumables are available according to requirements. For use with BW 685 or BW 685 S without the tube warmer: Extension set 350 cm Order no. 35000 Extension set 460 cm Order no. -
Page 10: Initial Operation
10 Fluid exit point 11 Alarm LED Flow direction Fix the BIEGLER BW 685 / BW 685 S firmly to the infusion stand using the clamps at the back (Fig. 1/8). Only use infusion stands, tripods or equipment rails that are sufficiently stable. - Page 11 Select suitable consumables. See the "Consumables" section. Prepare infusion or transfusion. Important: The length of the tube between the BW 685 / BW 685 S and the patient must be at least 40 cm, and the tube must not be stretched.
- Page 12 The tube warmer Biegler TubeFlow must be inserted with light pressure as indicated in diagram 3.2 into the intended fixture (Diag. 3/4) on the BW 685 S. Remove the dust cap from the BW 685 S and attach the connector of the TubeFlow to the socket on the BW 685 S.
-
Page 13: Alarms
3.2 ALARMS The BW 685 / BW 685 S can trigger two types of temperature alarm: The low temperature alarm is activated when the temperature of the heat exchanger drops below 36.5 °C. The audible low temperature alarm is not active during the first 60 seconds after switch-on. -
Page 14: Troubleshooting
TubeFlow MAINTENANCE The BW 685 / BW 685 S was largely designed as a maintenance-free device. For long-term maintenance of quality and functional safety, we would like to ask you to observe the following points:... -
Page 15: Cleaning And Disinfection
The periodic technical safety inspections (according to the local standards in force - e.g. in Austria, ÖVE/ÖNORM E 8751-1) on the BW 685 / BW 685 S and the optional tube warmer TubeFlow must be carried out at least every 12 months, by persons authorized to carry out such inspections based on their training, knowledge and practical experience. - Page 16 BW 685 / BW 685 S / TubeFlow CHECKING THE WARM-UP PERIOD (BW685/S) This is the time taken by the BW 685 / BW 685 S to heat up to 38.5 °C from room temperature. If this time is much more than one minute, there is a malfunction.
- Page 17 BW 685 / BW 685 S / TubeFlow VISUAL CHECK OF GENERAL CONDITION (BW685/S) The device should be checked for mechanical damage (general condition) and for the completeness of the stickers, particularly the device label on the reverse. If there is mechanical damage to the device which could cause risk of injury or impair its functionality, this constitutes a malfunction.
- Page 18 (see Fig. 4). At least 20 cm of the sensor line must be inserted into the heating profile. Switch the BW 685 S on and check whether the alarm function is checked. Wait for 45 minutes. After this time, the TubeFlow has reached its preset temperature of 39 °C and is evenly...
- Page 19 BW 685 / BW 685 S / TubeFlow An independent temperature sensor is installed in the TubeFlow warmer. The electronic system continuously monitors the sensor. The heating is permanently switched off if a certain predefined temperature is exceeded. In order to examine this overtemperature activation, a calibrated circulation thermostat which can be set to temperatures between 39 °C and 45 °C is...
-
Page 20: Manufacturer Liability
The warranty will also be void if original Biegler materials were not used as replacement parts, or measures for repair were undertaken... -
Page 21: Return Of Devices
BW 685 / BW 685 S / TubeFlow If the manufacturer is required to meet a warranty claim in accordance with these terms, the customer shall bear the costs and risks of transport of the device from and to the place of use. -
Page 22: Electromagnetic Compliance
BW 685 / BW 685 S / TubeFlow 11 ELECTROMAGNETIC COMPLIANCE Table 201 Guidelines and manufacturer's declaration – electromagnetic emissions The BW685 / BW685 S / TubeFlow is intended for use in the environment specified below. The customer or the user of the BW685 / BW685 S / TubeFlow should ensure that it is used in such an environment. - Page 23 BW 685 / BW 685 S / TubeFlow Table 202 Guidelines and manufacturer's declaration – electromagnetic interference resistance The BW685 / BW685 S / TubeFlow is intended for use in the electro-magnetic environment specified below. The customer or the user of the BW685 / BW685 S / TubeFlow should assure that it is used in such an environment.
- Page 24 BW 685 / BW 685 S / TubeFlow Table 204 Guidelines and manufacturer's declaration – electromagnetic interference resistance The BW685 / BW685 S / TubeFlow is intended for use in the electro-magnetic environment specified below. The customer or the user of the BW685 / BW685 S / TubeFlow should ensure that it is used in such an environment.
-
Page 25: Manufacturer's Declaration
MANUFACTURER'S DECLARATION The blood and infusion warmer BW 685 / BW 685 S and the tube warmer TubeFlow are medical products as defined by Directive 93/42/EEC. This is documented through the CE mark. -
Page 26: Symbols
BW 685 / BW 685 S / TubeFlow SYMBOLS Certifies compliance with the Directive 93/42/EEC 0123 Observe the directions for use Do not dispose of this product as unsorted municipal waste Button for increasing the temperature setting Button for decreasing the temperature setting... -
Page 27: Operating And Storage Conditions
BW 685 / BW 685 S / TubeFlow Symbols for accessories Sterile by ethylene unsterile - green strip Designation of the batch sterile - orange strip Expiration date One-time use only OPERATING AND STORAGE CONDITIONS Permissible environmental conditions for transport and storage: Temperature: 10 –... -
Page 28: Technical Data
BW 685 / BW 685 S / TubeFlow TECHNICAL DATA Device: Blood and Infusion Warmer Type designation: BW 685 / BW 685 S Voltage: 230 V / 50Hz Power consumption: 1.5 A Protection class: Degree of protection: Type B Humidity protection:...
