14 InView Marquee Message Display

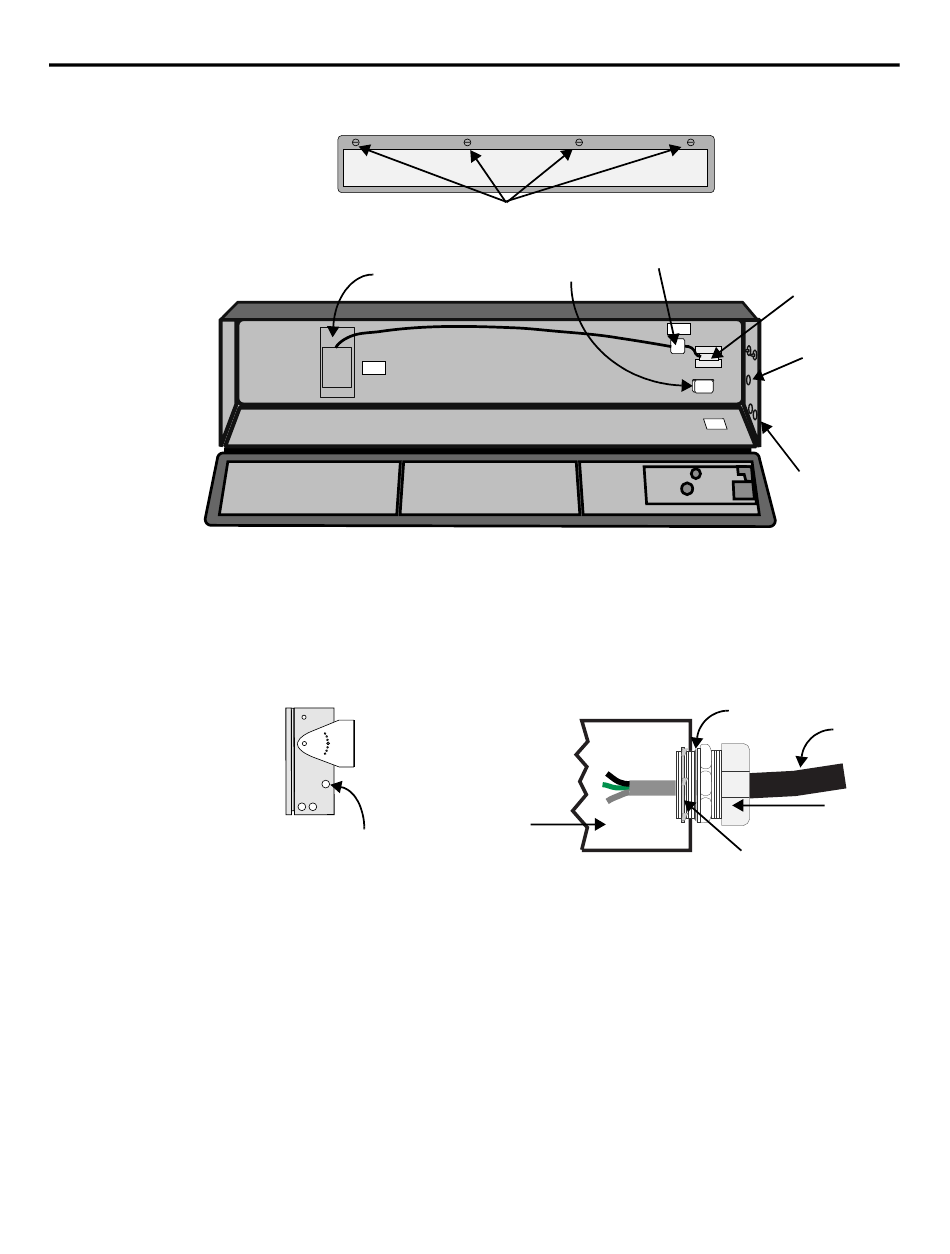

Front view, open
Right-end
view
Publication 2706-IN006E-EN-P
Front view,
closed
Power supply
2. Feed electrical cable through 1" water-tight conduit, the outside
end of the connector (supplied), the electrical opening in the
sign case, and then through the inside end of the connector.
Screw the inside and outside ends of the connector together
until water-tight.
Electrical opening
3. Strip the electrical wires back 1/4". Connect the wires by screwing the
end of each wire into the power connection.
Quarter-turn latches
on an 2706-P74 sign
Power line
Serial
filter
connection
Front view
Sign case,
inside
Power
connection
Electrical
opening
Serial
device
opening
Rubber gasket
Conduit
Connector,
outside end
Connector nut, with teeth
facing the sign case
