Step 4 — (Optional) Wire Power Connector; Connecting Additional Extron Devices; Step 5 — (Optional) Mount Unit In Wall Box; Step 6 — Connect Peripheral Devices - Extron electronics USB HUB4 Series Setup Manual

USB HUB4 Series • Setup Guide (Continued)

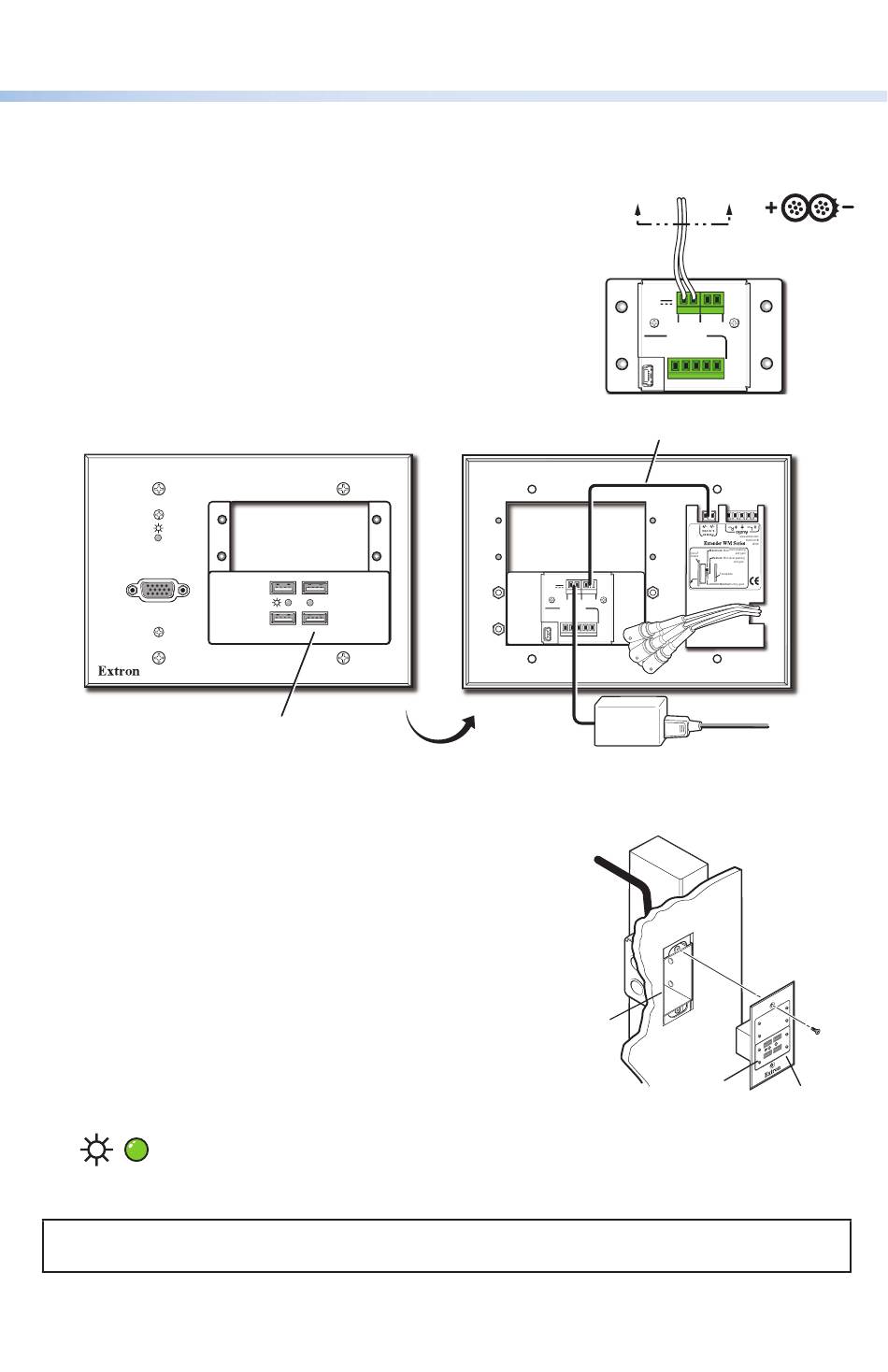

Step 4 — (Optional) Wire power connector
The USB HUB4 can be powered by the host computer.
However, if the USB peripheral devices connected to the
USB HUB4 require more power than the USB HUB4 can
provide, wire an optional Extron PS 1215 1.5 A, 12 VDC
power supply to the 12 VDC Power In ports 1 and 2 on the
rear panel, as shown at right.

Connecting additional Extron devices

If using an additional Extron device, such as a WM Series
Extender, with the external power supply, connect the device
power cord to the 12 VDC Power Out ports 3 and 4 (see
image below).
AUDIO IN
Extender WM AAP
Step 5 — (Optional) Mount unit in wall box
If using an electrical box, mount the USB HUB4 and
the attached mounting frame onto the box (see the
image at right). If using a mounting bracket, this step
is not needed.
Step 6 — Connect peripheral devices
Attach the peripheral USB devices to the front panel
USB Type A ports.
Step 7 — Power on
Power on the host computer and the desktop power
supply (if applicable). Check the front panel power
indicator LED to verify that the HUB4 is receiving
power.
