Removing a Power Supply Unit

Before you remove a power supply unit, we recommend that you make sure that
either:
• A second power supply of the same type (AC or DC) is installed and
connected to a working power source
Or
•
Shutdown the appliance
To remove a power supply unit:
1. Remove the power cord from the power supply unit.
2. If the alarm sounds, press the alarm off button to the right of the power
supply units.
The alarm stops.

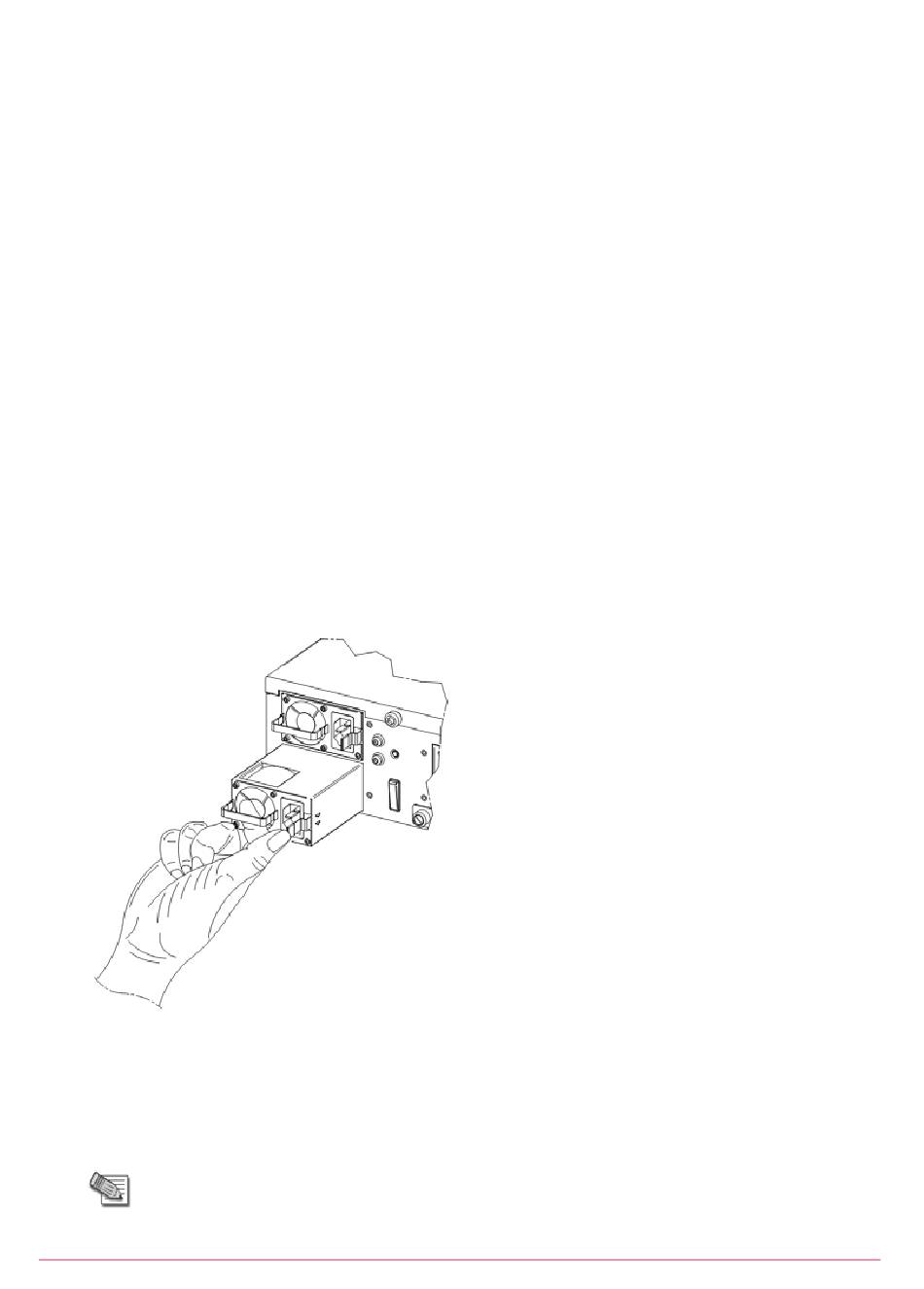

3. Press and hold the release lever down as shown.
The illustration shows AC PSUs, but the same procedure applies to
appliances with DC PSUs.
4. While holding the release lever, pull the extraction handle to remove the
power supply unit.
Note - Remove the power supply unit only with the extraction handle
to prevent any possible damage.
