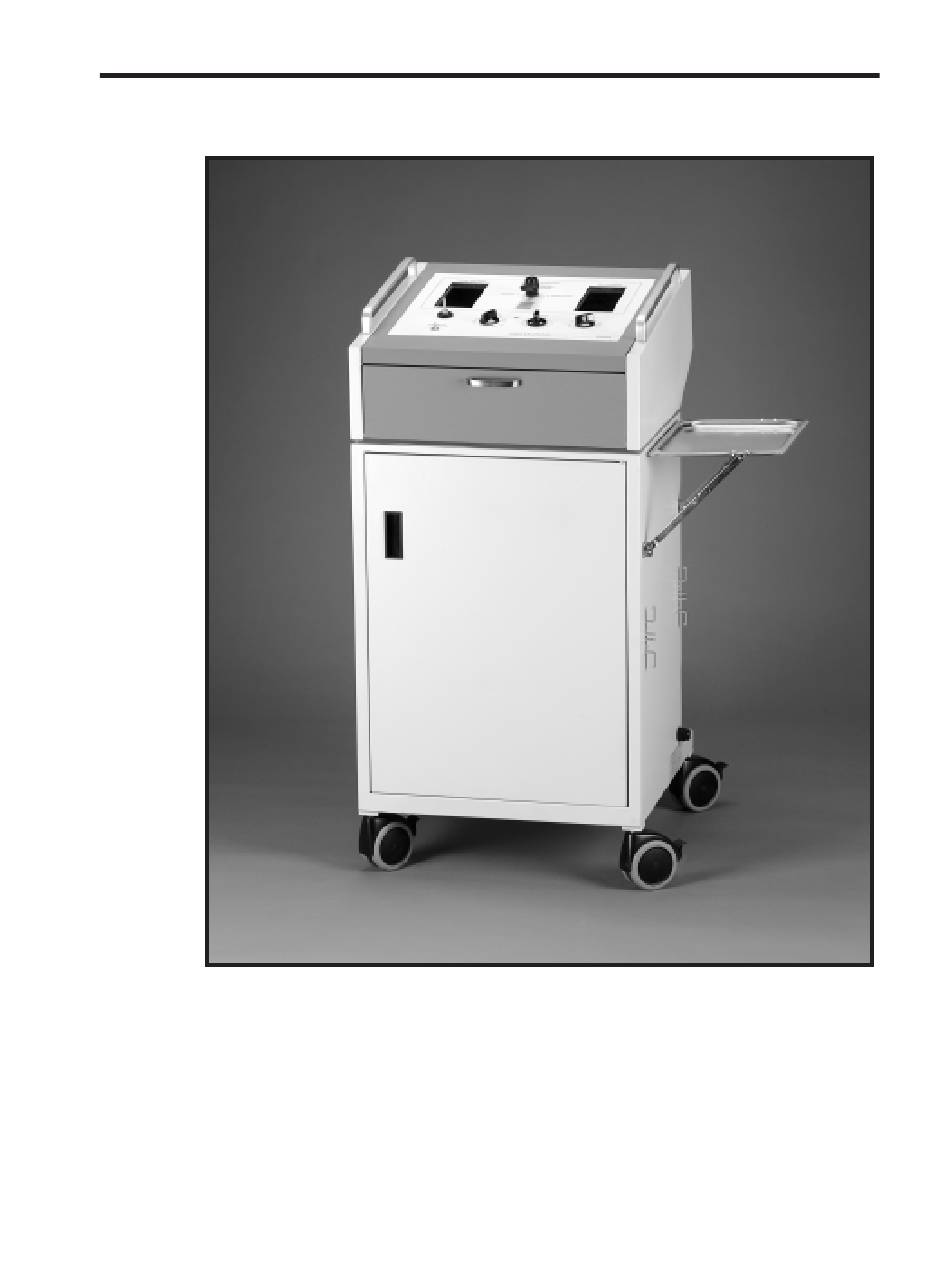

- Page 1 PULMONEX II XENON SYSTEMS OPERATION MANUAL 132-502 132-503 132-522 132-523 IODEX Biodex Medical Systems, Inc. 20 Ramsay Road, Shirley, New Y ork, 11967-4704, Tel: 800-224-6339 (In NY and Int’l, call 631-924-9000), Fax: 631-924-9338, Email: sales@biodex.com, www.biodex.com FN: 05-241 8/05...
- Page 2 PULMONEX II XENON SYSTEMS This manual covers installation and operation procedures for the following Biodex products: #132-502 Xenon System, Pulmonex II, Single Trap, 115 VAC #132-503 Xenon System, Pulmonex II, Double Trap, 115 VAC #132-522 Xenon System, Pulmonex II, Single Trap, 230 VAC...
-
Page 3: Table Of Contents
• Maximizing Charcoal Trap Efficiency.............................8 • Charcoal Trap Replacement Procedure ..........................9 • Upper Blower Replacement ..............................10 • Lower Blower Replacement ..............................11 • Leak Tests....................................12 • Pulmonex II Tubing Set-Up..............................12 • Manual Trap Test (without monitor) .............................13 5. Trouble-shooting..................................14 6. Specifications ...................................17 7. Replacement ....................................18 8. -
Page 4: Introduction
The result is a system that provides maximum, reliable test results with minimal effort. For departments performing up to 15 Xenon studies per month (upper dosage = 10 - 12 mCi), the Single-Cartridge Pulmonex II is ideal. -
Page 5: Set-Up Procedure
As a safety precaution you can connect a hose from your room vent to the exhaust port locat- ed just below the overhang on the patient side of the Pulmonex II. CAUTION: Some patients are sensitive to Oxygen. Consult a physician before using Oxygen. -
Page 6: Performing A Study
NOTE: To perform a study using ambient air, turn the Pulmonex II ON using the timer and proceed to handle position #2 before connecting the patient to the system. When the “To Patient” bag is one-quarter full, switch the handle back to position #1. To add ambient air, turn the Air Flow up to 100, add the desired volume, and turn the Air flow back to 30. - Page 7 11. Switch the handle to single breath, "Equilibrium" position #2. Use either the DuPont Calidose Gun or a syringe filled with Xenon, and puncture the injection site of the face mask or mouthpiece. Add the Xenon as you have the patient take a deep breath.
-
Page 8: Maintenance
We recommend using an injection adapter as close to the patient as possible. Biodex carries an entire line of disposable Xenon circuits, some with injection adapters, with luer lock fittings, or injection ports (see catalog). -
Page 9: Charcoal Trap Replacement Procedure
Charcoal Trap Replacement Procedure for Single Trap Units (See Figure 5.) Tools Required: Screwdriver, pliers and/or vice grip. 1. Open the door to the trap and, using a screwdriver (or, if need be, a pair of pliers,) disconnect hose clamps and tubes connected to the top of the lead cartridge. -
Page 10: Upper Blower Replacement
10. With flat-head screwdriver, remove three screws from blower bracket and remove the Upper Blower. To Attach the New Blower: Position new blower so that hose fittings face front of Pulmonex II cabinet. With flat-blade screwdriver, install three screws in bracket to attach new blower. -
Page 11: Lower Blower Replacement
Lower Blower Replacement (See Figure 6.) Tools Required: Slip-joint pliers and flat-blade screwdriver. The Lower Blower is located in the lower cabinet and accessible from the lower cabinet door. To Remove the Old Blower: 1. Unplug the Pulmonex from the wall. -
Page 12: Leak Tests
5. If a leak is found in the tubing, replace the entire section. Occasionally, one of the breathing bags will tear or a hole will develop in it. These bags are Biodex Medical Systems (catalog #130-610 and are easily replaced. If the leak is in one of the fittings, they can be easily sealed with silicone. -
Page 13: Manual Trap Test (Without Monitor)
Manual Trap Test (Without Monitor) Trap exhaust is monitored by using the gamma camera without a collimator. The following simple technique is used: 1. Remove the collimator from the camera. 2. With a five percent window, calibrate for Xe-133. 3. Fill a large plastic bag with a known volume of air (typically, 50 liters). 4. -
Page 14: Troubleshooting
TROUBLESHOOTING Problem/Probable Cause Solution No Power 1. Timer not ON. 1. Turn timer ON. 2. Power cord cut or broken. 2. Replace cord. 3. No power in outlet. 3. Try different outlet. 4. Incorrectly connected the 4. Connect properly. transformer. 5. - Page 15 3. Call Biodex Medical Systems. when handle is turned. 4. Bacteria filter absorbs Xenon. 4. Change filter type to recommended filters supplied by Biodex Medical Systems. 5. System leaks. 5. See leak test. 6. Y fitting not set up properly.
- Page 16 “From Patient” bag not emptying during washout 1. Shipping cap not removed from 1. Remove cap from exhaust port. exhaust port. 2. Upper blower speed set too low. 2. Turn speed up to 100. 3. Lower blower speed set too low. 3.
-
Page 17: Specifications
Electrical Requirements: 115 VAC, 1 amp or 230 VAC, 0.5 amp, 50/60 Hz Shipping Weight: 132-502: 300 lb (138 kg) 132-503: 375 lb (172.5 kg) ETL and cETL Listed Mfg: Biodex Medical Systems 20 Ramsay Road Shirley, NY 11967 Classification: Class 1, Type B ordinary equipment CAUTION: Refer to instructions manual before operating or servicing system. -
Page 18: Replacement
REPLACEMENT PULMONEX II CONTROL PANEL ASSEMBLY, 132-502-A020 -18- EPLACEMENT... - Page 19 PULMONEX CABINET ASSEMBLY, 132-502-A010 -19- EPLACEMENT...
- Page 20 -20- EPLACEMENT...
-
Page 21: Schematics
SCHEMATICS -21- CHEMATICS... - Page 22 -22- CHEMATICS...
- Page 23 NOTES -23- OTES...
- Page 24 IODEX Biodex Medical Systems, Inc. 20 Ramsay Road, Shirley, New Y ork, 11967-4704, Tel: 800-224-6339 (In NY and Int’l, call 631-924-9000), Fax: 631-924-9241, Email: sales@biodex.com, www.biodex.com...
