GS2055
GSM W
A
C
IRELESS
LARM
OMMUNICATOR
TL255GS
E
/I
-
A
C
THERNET
NTERNET AND DUAL
PATH
LARM
OMMUNICATOR
NOTE: This manual covers the following models for the North America:
GS2055-NA
TL255GS-NA
Installation Manual
v2.5
Warning: This manual contains information on limitations regarding product use and function and information on the limitations
as to liability of the manufacturer.
firealarmresources.com
Advertisement
Table of Contents
Related Manuals for Tyco DSC GS2055
Summary of Contents for Tyco DSC GS2055
- Page 1 GS2055 GSM W IRELESS LARM OMMUNICATOR TL255GS THERNET NTERNET AND DUAL PATH LARM OMMUNICATOR NOTE: This manual covers the following models for the North America: GS2055-NA TL255GS-NA Installation Manual v2.5 Warning: This manual contains information on limitations regarding product use and function and information on the limitations as to liability of the manufacturer.
- Page 2 firealarmresources.com...
-
Page 3: Table Of Contents
2G Alarm Communicator Installlation Manual ABLE OF ONTENTS Warning: Installer Please Read Carefully ............. . . 4 General Information . -
Page 4: Warning: Installer Please Read Carefully
Warning: Installer Please Read Carefully 2G Alarm Communicator Installlation Manual WARNING: I NSTALLER LEASE AREFULLY Note to Installers Motion Detectors The Warnings on this page contain vital information. As the only individual in Motion detectors can only detect motion within the designated areas as shown in contact with system users, it is the installer’s responsibility to bring each item in their respective installation instructions. -
Page 5: General Information
2G Alarm Communicator Installlation Manual Keypad Data Display ENERAL NFORMATION Domain Name Service (DNS) programming is not permitted in UL/ULC listed systems. EYPAD ISPLAY • Section-Toggle Options: The number is displayed when Toggle is ON, the number is not displayed when Toggle is OFF. (e.g., Tog- gle Options displays: “[--3--6--]”. -
Page 6: Communicator Technical Specifications

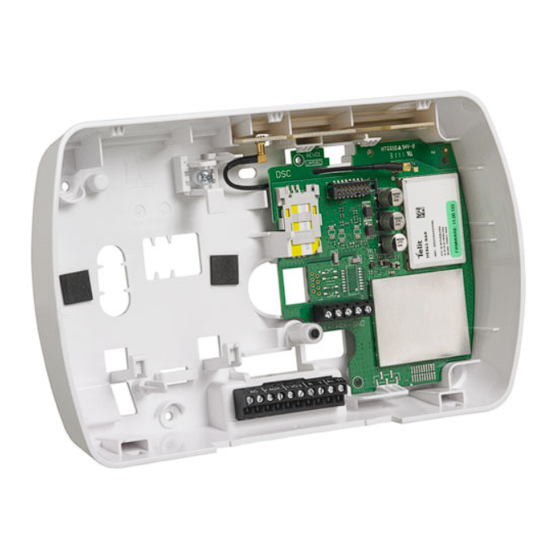

General Information 2G Alarm Communicator Installlation Manual OMMUNICATOR ECHNICAL PECIFICATIONS ENERAL NFORMATION All versions of the GSM and Ethernet Alarm Communicator, operate on a GSM network and are housed inside the Self Contained Wireless Alarm System Model SCW9055/9057. The Communicators use an Internal Antenna only. Each version of Alarm Communicators covered by this Installation Manual are described below: GS2055: A High Speed Packet Access/Global System for Mobile (GSM) wireless Alarm Communicator that sends alarm communication to Sur-Gard System I, II, III (SG-DRL3IP), and IV (SG-DRL4IP) central station receivers via a GSM digital cellular network. -
Page 7: Ratings
Confirm all information is entered correctly before submitting. 5. Repeat Step 4 to program another SIM card (i.e. another Subscriber), or log out from Connect24. 1. Connect24, DSC, and DLS IV are Registered Trademarks of Tyco International Ltd. and its respective Companies. All Rights Reserved. firealarmresources.com... -
Page 8: Encryption
Encryption 2G Alarm Communicator Installlation Manual 6. Power up the communicator. The Communicator will automatically connect and download its programming from Connect24 once the unit is initialized. NOTE: Following initial installation, the Connect24 website can be used to re-configure the Communicator remotely, using the account created for this installation. -
Page 9: Communicator Reset
2G Alarm Communicator Installlation Manual Inserting/Removing the SIM Card SIM C NSERTING EMOVING THE Figure 3: SIM Card Pinouts 1. Remove the front cover of the SCW9055/SCW9057 Control Panel to access SIM card holder. DG0009396 2. Remove power from the SCW9055/SCW9057 and disconnect SIM Card Pinouts the backup battery connections. -
Page 10: Label Programming For Sms Message
SMS Command and Control Functions 2G Alarm Communicator Installlation Manual 5. Panel Section [350]: If any of the phone numbers have been programmed as DCAA, DCBB, DCCC, DCDD, or DCEE, panel Sec- tion [350] must be set to [04] if SIA format or [03] if Contact ID (CID) format is used by control panel. 6. -
Page 11: Ethernet/Cellular Programming Options
2G Alarm Communicator Installlation Manual System Options THERNET ELLULAR ROGRAMMING PTIONS The Programming Sections described in this document can be viewed at the SCW9055/SCW9057 LCD. To start programming enter: [*][8][installer code] [851][# # # ], Where # # # is the 3 digit Section number referenced in this section. The Programming Worksheets at the end of this document can be used to record the new values when programming changes have been made from the default values. - Page 12 System Options 2G Alarm Communicator Installlation Manual [4] Primary Path Default (OFF - TL255GS) (ON - GS2055) ON: Cellular channel is the primary path. Ethernet channel is the secondary path, if it exists. OFF: Ethernet channel is the primary path in a dual Communicator. Cellular channel is the secondary path. [5] Redundant Communications Default (OFF) (TL255GS only) ON: Events will be communicated to Ethernet Receiver 1 and Cellular Receiver 1 at the same time.
-
Page 13: Programming Options
2G Alarm Communicator Installlation Manual Programming Options NOTE: If no value is programmed and DHCP is used, the DHCP Server will configure the address. If an address is programmed and DHCP is used, the address that you program will be used instead of the DHCP address. [008] DNS Server IP 2 ... - Page 14 Programming Options 2G Alarm Communicator Installlation Manual Table 7: World Wide Time Zones Offset Offset Location Location Value Hours Abbrev Value Hours Abbrev Pacific Standard Time Cococ Islands Time Pitcarirn Standard Time Myanmar Time Clipperton Island Standard CIST Christmas Island Time Time Mountain Standard Time KOVT...
- Page 15 2G Alarm Communicator Installlation Manual Programming Options Table 7: World Wide Time Zones Offset Offset Location Location Value Hours Abbrev Value Hours Abbrev Australian Eastern Standard Eastern Greenland Time AEST Time Cape Verde Time Guam Standard Time AZOST Azores Standard Time YAPT Yap Time Western Europian Time...
-
Page 16: Communications Reporting Codes
Communications Reporting Codes 2G Alarm Communicator Installlation Manual Table 7: World Wide Time Zones Offset Offset Location Location Value Hours Abbrev Value Hours Abbrev CAST Chinese Atlantic Standard Time WKST West Kazakhstan Standard Time Pakistan Time YEKT Yekaterinburg Time Uzbekistan Time Turkmenistan Time Tajikistan Time French Southern and Antarctic... - Page 17 2G Alarm Communicator Installlation Manual System Test Options [026 - 029] [026 - 029] YSTEM PTIONS Test Transmissions to Primary Receiver, with Backup to Secondary Receiver: Set Ethernet Section [026] to (FF); [027] to (00). Set Cellular Section [028] to (FF); [029] to (00). •...
-
Page 18: Ethernet Receiver 1 Options
Ethernet Receiver 1 Options 2G Alarm Communicator Installlation Manual Table 10: Panel Tamper Alarm Restore Contact ID Contact ID Contact ID Contact ID Event Reporting Reporting Identifier Qualifier Event Code User/Zone Code Code [033] Comm. FW Update Begin [034] Comm. FW Update Suc- cessful [035] Panel FW Update Begin [036] Panel FW Update Suc-... -
Page 19: Ethernet Options
2G Alarm Communicator Installlation Manual Ethernet Options [112] Ethernet Receiver 2 DNIS Default (000000) The DNIS is used in addition to the account code to identify the Communicator module at the central station. Valid range: 000000 - 099999. Value is entered as leading 0 followed by the 5 digit DNIS. Format is BCD. NOTE: Each Ethernet/Cellular receiver must be programmed with a unique DNIS. -
Page 20: Cellular Receiver 2 Options
Cellular Receiver 2 Options 2G Alarm Communicator Installlation Manual [203] Cellular Receiver 1 Address Default (000.000.000.000) Enter the Cellular Receiver 1 IP address. This information will be provided by your central station system administrator. Each 3 digit segment of the address must be within a valid range of 000-255. NOTE: When a valid IP address has been entered, the Cellular is enabled and will communicate events over the Cellular channel. - Page 21 2G Alarm Communicator Installlation Manual Command and Control Options [222] Cellular Login User Name Default ( ) Some network carriers require you to provide login credentials when connecting to an APN. Program your login User Name in this Sec- tion. Format is up to 32 ASCII characters. NOTE: This Section is not accessible via PC1616/PC1832/PC1864 keypad programming.
- Page 22 2G Alarm Communicator Installlation Manual [311] - [318] SMS Phone Number 1 - 8 Default ( ) These Sections may be programmed through DLS IV or the keypad. Up to 8 SMS telephone numbers (4 - 32 digits) can be programmed in Section [31x] Where x is an SMS telephone number from 1 to 8.
- Page 23 2G Alarm Communicator Installlation Manual SMS Command and Control Response [616] Alarm Memory Request Default (Alarm Memory Request) Send this command to the system to request the alarm memory from the system. This command may be followed by a Partition Label or partition number, and Access Code.
-
Page 24: System Information (Read Only)
System Information (Read Only) 2G Alarm Communicator Installlation Manual Table 13: Error Code Format Class Definition Error Definition Bad SMS format Session failed due to local network issues Unable to connect to remote server Bad DLS access code DLS lockout active Bad SMS format Session failed due to local network issues Unable to connect to remote server... -
Page 25: System Reset Defaults
2G Alarm Communicator Installlation Manual System Reset Defaults [996] Cellular Telephone Number NOTE: This Section will display the Cellular telephone number of the SIM. This telephone number is required by the Installer for DLS and remote firmware (flash) update. User can access this telephone number by entering [*] [6] < > “Cellular Phone No.” to dis- play the phone number. - Page 26 Communicator Troubleshooting 2G Alarm Communicator Installlation Manual Communicator Troubleshooting [984] Communicator Status The communicator status sections are intended to provide the installer with real-time status of the communicator’s functionality, opera- tional readiness, failures, and potential malfunctions that may affect flawless operation of the communicator and its primary function of sending signal to the central station in case the monitored event occurs.
- Page 27 2G Alarm Communicator Installlation Manual Communicator Troubleshooting The following table shows each digit position in the status code, each digit’s value and its assigned meaning in the eight-digit code: Table 15: Radio Initialization Status - 1-8 bits completion Not Completed Completed For example, the radio initialization status code 12-45--- indicates that Radio has been powered up, it has received SMS signal from C24, the radio is attached to the network, and Receiver 1 has been initialized.
- Page 28 Communicator Troubleshooting 2G Alarm Communicator Installlation Manual Communicator Troubleshooting The status code for the radio signal strength, its typical troubles, possible causes and troubleshooting instructions is displayed in the table below. Table 17: Radio Signal Strength Signal Signal Signal Signal Level Signal Level CSQ Level Action Required...
-
Page 29: Ethernet/Cellular Programming Worksheets
2G Alarm Communicator Installlation Manual System Options THERNET ELLULAR ROGRAMMING ORKSHEETS [020] Time Zone YSTEM PTIONS Default (CAFE) Valid range: 0000 - FFFF. [001] Ethernet IP Address |____|____|____|____| Default (000.000.000.000) [022] Communications Format |____|____|____||____|____|____||____|____|____|____|____|____| Default (04) Program 03 (CID), 04 (SIA). [002] Ethernet IP Subnet Mask |____|____| Default (255.255.255.000) -
Page 30: Ethernet Receiver 1 Options
Ethernet Receiver 1 Options 2G Alarm Communicator Installlation Manual [202] Cellular Receiver 1 DNIS THERNET ECEIVER PTIONS Default (000000) Valid range: 000000 - 0FFFFF. [101] Ethernet Receiver 1 Account Code |____|____|____|____|____|____| Default (0000000000) Valid range: 0000000001 - FFFFFFFFFE. [203] Cellular Receiver 1 Address |____|____|____|____|____|____|____|____|____|____| Default (000.000.000.000). - Page 31 2G Alarm Communicator Installlation Manual Cellular Options [224] Cellular Test Transmission Time of Day [605] - [608] Activate Command Output 1 - 4 Default (Activate Command Output n); Default (9999) Valid range: 00 - 23 hrs. (HH) 00 - 59 min. (MM). Send this command to the system to activate a command output.
-
Page 32: System Information (Read Only)
System Information (Read Only) 2G Alarm Communicator Installlation Manual [625] System Away Armed [901] Diagnostic Test Transmission Default (Away Arm) |___| [1] Ethernet 1 Default (OFF). Included in the response to a status request command if a partition is |___| [2] Ethernet 2 Default (OFF). away armed. -
Page 33: End User Licence Agreement
SOFTWARE and any related PRODUCT (including but not limited to any images, photographs, and text incor- HARDWARE) and Digital Security Controls (DSC), a division of Tyco Safety porated into the SOFTWARE PRODUCT), the accompanying printed materials, Products Canada Ltd., the manufacturer of the integrated security systems and the... -
Page 34: Limited Warranty
Limited Warranty 2G Alarm Communicator Installlation Manual IMITED ARRANTY Digital Security Controls (DSC) warrants the original purchaser products disassembled or repaired in such a manner as to that for a period of twelve (12) months from the date of purchase, adversely affect performance or prevent adequate inspection or the product shall be free of defects in materials and workmanship testing to verify any warranty claim. - Page 35 firealarmresources.com...
- Page 36 Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. 2 9 0 0 8 2 1 8 R 0 0 2 © 2011 Tyco International Ltd. and its Respective Companies. All Rights Reserved. Toronto, Canada · www.dsc.com...
