USER GUIDE
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE •
Harvest-1 Cycle
• Temperature control terminals 2 and 3 are open - 2 and
1 close.
• No power to the compressor or condenser fan.
• If bin arm is down, power goes through bin arm switch
to the ice maker motor. If bin arm is up, the ice maker
will not harvest.
ON
OFF
black
SWITCH
black
LIMIT
SWITCH
black
black
FAN
MOTOR
COMP.
OVER
START
LOAD
RELAY
WATER
C FILL NC
SWITCH
black
orange
black
MOLD HEATER

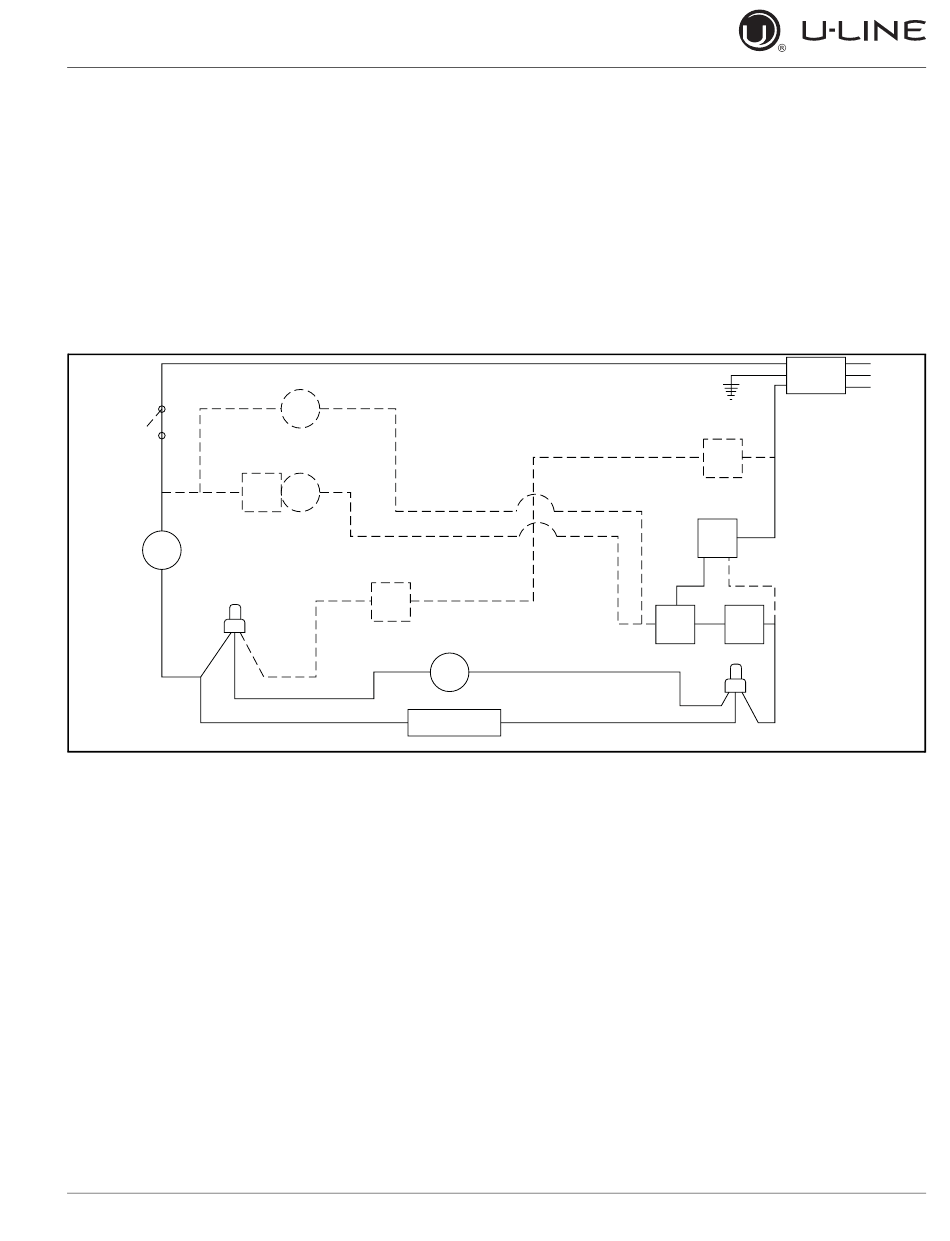

Figure 2. Harvest-1 Cycle (Hold Switch in Normal Position)
black
brown
black
blue
ICE
orange
MAKER
MOTOR
black
39
ground
WATER
white
VALVE
HOLD
C
SWITCH
NC NO
yellow
2
TEMP.
red NO C
BIN
CONTROL
3
1
SWITCH
orange
Troubleshooting - Extended 5
