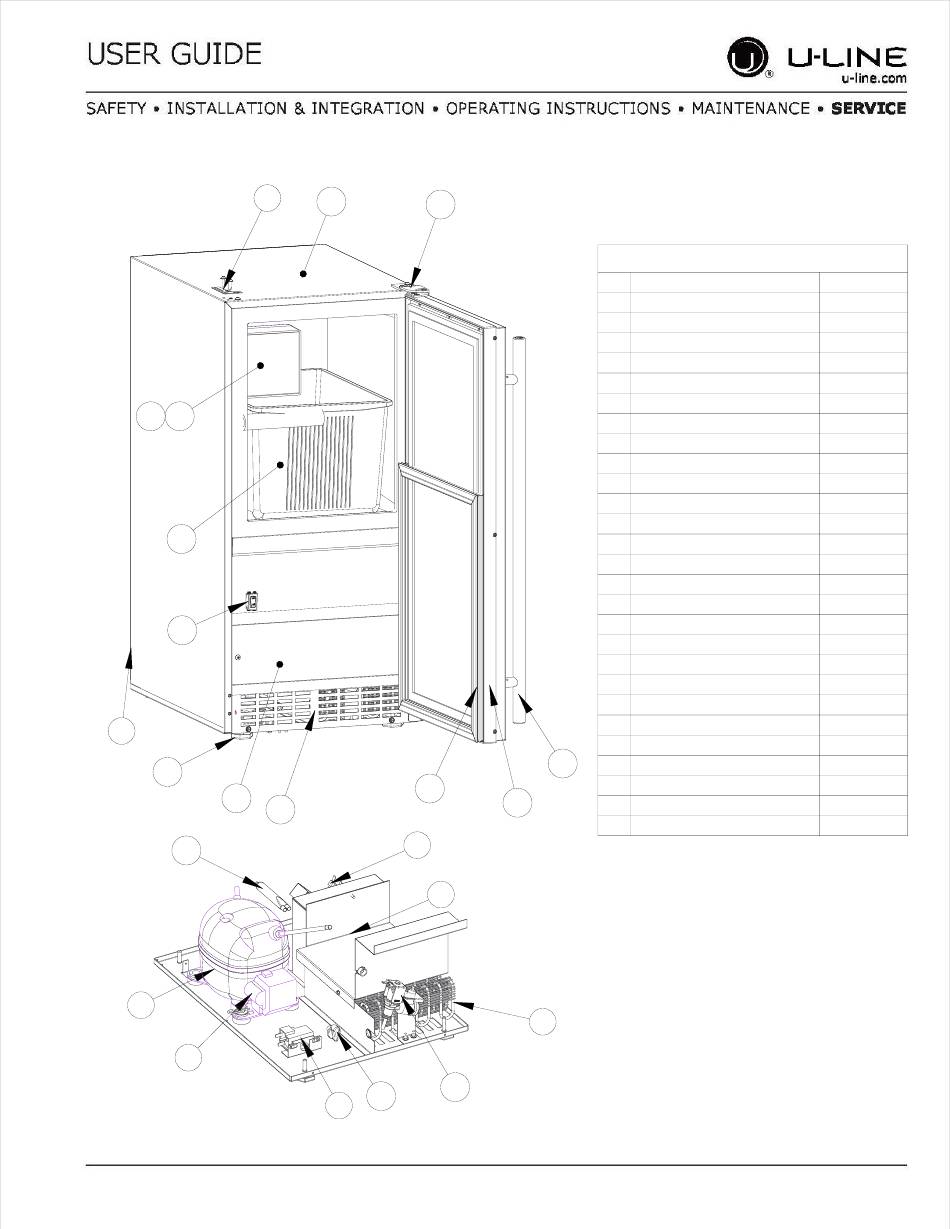

Parts - U-Line ADA UACR115 User Manual & Service Manual

Parts

27 20
19
24
2
21
14
12
5
4
1
13
18
15
16
7
8
10
9
Item Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
17
24
25
11
26
27
6
26
31
U-ADA15IMB-00B
Anti tip brackets w/screws
Back panel
Compression nut/sleeve
Compressor electricals only
Compressor w/electricals
Condenser assembly
Condenser fan
Condenser fan blade
Control assembly
Control knob
Door assembly w/hinges
Drier
Evap/cabinet assembly
Front panel w/screws
Gasket, door
Grille w/ screws
Handle w/logo
Hinges (2) w/screws
Ice bucket
Ice maker assembly
Leg Levelers (4)
Packaging
Power cord
Rocker switch
Water line assembly
Water valve assembly
Faceplate 115V
U-Line P/N
80-54221-00
80-54384-00
80-54355-00
80-54377-00
80-54376-00
80-54322-00
80-54378-00
80-54379-00
80-54381-00
80-54382-00
80-54374-00
80-54055-00
80-54388-00
80-54371-00
80-54375-00
80-54385-00
80-54214-00
80-54373-00
80-54386-00
80-54372-00
80-54201-00
80-54387-00
80-54380-00
80-54105-00
80-54383-00
80-54356-00
80-54523-00
