USER GUIDE
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE •

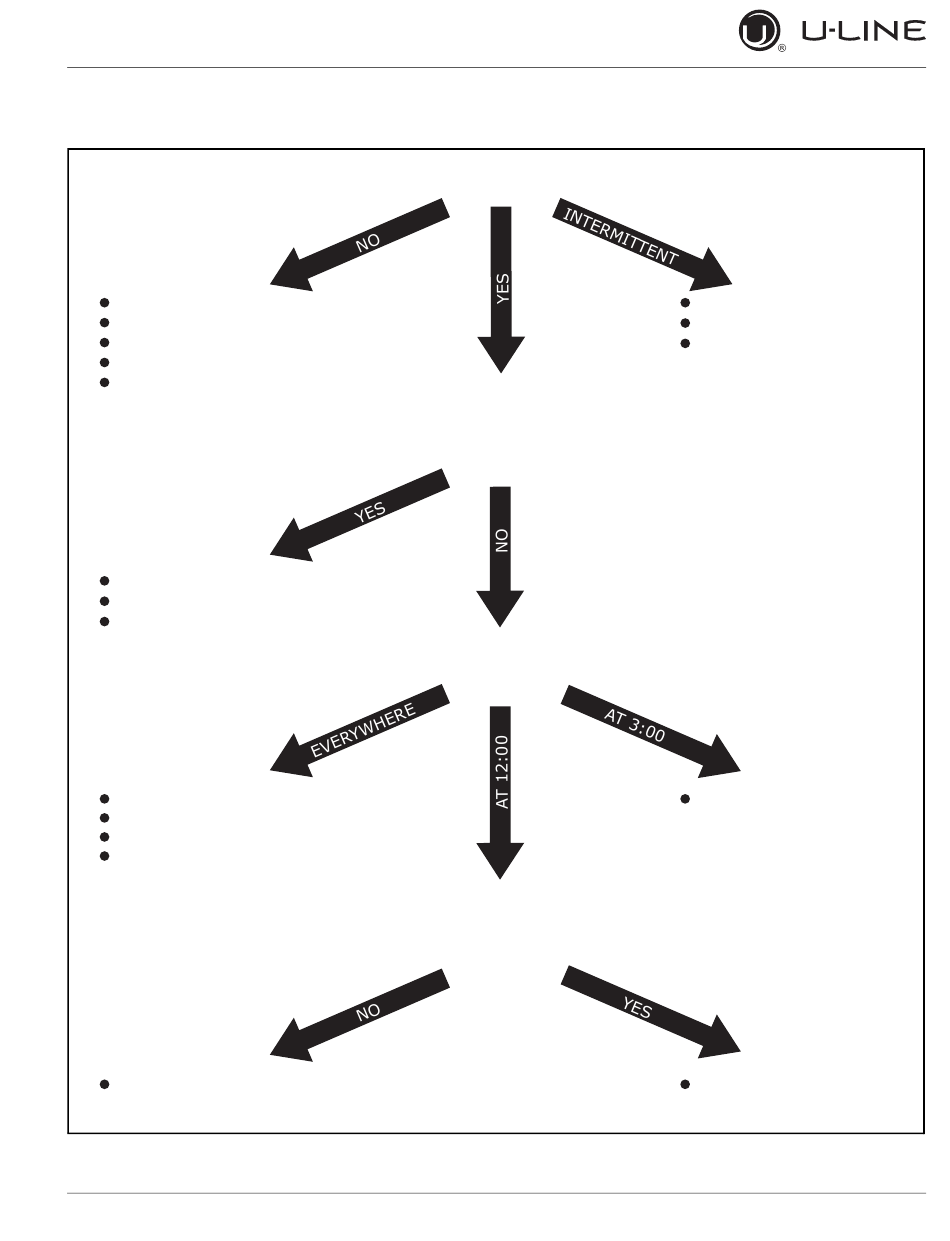

ICE MAKER DIAGNOSIS FLOW CHART
Sealed System Leak
Electrical Failure
Compressor Failure
Fan Motor Failure
Defrost System Failure
Temperature Control Failure
Water Adjustment
Bin Switch Failure
Ice Motor Failure
Hold Switch Failure
Limit Switch Failure
Binding Cam/Ejector
Water Switch Failure
DOES THE UNIT REFRIGERATE?
DOES THE UNIT HARVEST ICE
IF THE EJECTOR BLADES ARE
MOVED BY HAND OR WITH A
WRENCH ?
WHERE DO THE
EJECTOR BLADES
STOP?
IS THERE VOLTAGE AT THE
SOLENOID VALVE TERMINALS
DURING HARVEST?
37
u-line.com
SERVICE
Low Voltage
Voltage Drop
Wiring
Mold Heater Failure
Solenoid Valve Failure
UL183-11
Troubleshooting - Extended 3
