- Page 1 LIP-9070-ipKTS Quick Start Guide Please read this manual carefully before operating your set. Retain it for future reference.
-
Page 2: Table Of Contents
CONTENTS BASICS ..........3 Phone Layout ..............3 Phone Display Screen ...........5 Home Screen ..............7 Viewing the Extended Home Screen ......8 Touch-screen Navigation ..........10 Function Keys ..............11 Dock Bar ................12 Customize the Home Screen ........14 Work with Menu ............16 Onscreen Keyboard .............17 Using microSD Card ...........19 INSTALLATION ........ - Page 3 INFORMATIONS ......27 Accessories ..............27 Important Safety Informations .......28 Regulatory Notes ............32 Specification ..............34 Open Source Software Notice .........36 Caring for the Environment by Recycling ...37 CONTENTS...
-
Page 4: Basics

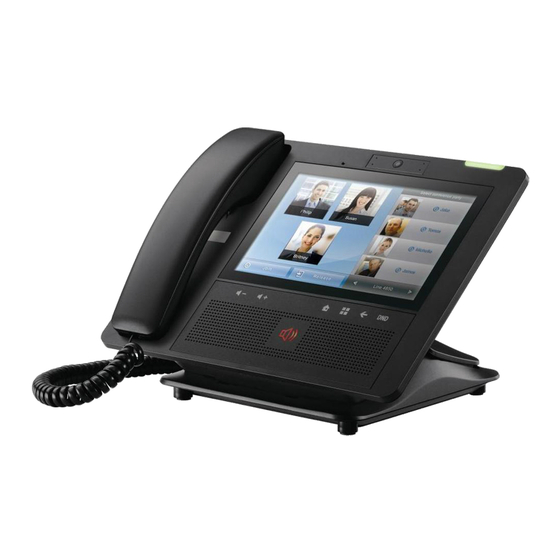

BASICS Phone Layout The illustration below outline your phone’s basic layout. Front views Ring LED Camera Microphone 7” LCD Tuchscreen Function Keys Speaker Phone Key Volume Keys Speaker Back views Micro SD slot mini USB port LIP-9070 IP Gigabit Video Phone Handset Jack Headset jack Power Adapter... - Page 5 Key Features The important keys and connectors ● Ring LED blinks when you receive a call. ● Camera lets you take pictures and video calls. ● Microphone transmits your voice to the other caller. ● 7” LCD Touchscreen displays all the information needed to operate your phone.
-
Page 6: Phone Display Screen
Phone Display Screen Your phone’s display screen provides information about your phone’s status and options. Status icons The icons in the status bar at the top of the screen give informa- tion about The following icons indicate the status of your phone: Icon It means Bluetooth... - Page 7 Notification icons The following icons indicate that you have received a notifica- tion. See “Using the Notifications Panel” for information about responding to these notifications. Icon It means IP Crash IP Address collision occurs between the nodes. Warning External SD card unexpectedly removed without unmounted from the phone.
-
Page 8: Home Screen
Home Screen The Home screen is the starting point of your phone, press access or return to the Home screen. Getting to Know the Home Screen Status Bar Dock Bar Onscreen Dots Shortcut Widget ● Status Bar lets you quickly see both the notifications that you have received (on the left) and the phone’s status (on the right), along with the current time. -
Page 9: Viewing The Extended Home Screen
Viewing the Extended Home Screen There are four additional screens in addition to the main Home screen provides more space for widgets, shortcuts, and other items. To view extended screens: ► Slide your finger left or right across the Home screen. To view thumbnails of the five Home screen panels: ►... - Page 10 Using the Notifications Panel The Notification area indicates new message events (new mes- sages, calendar events, call status, etc). You can open this panel to view a list of all your notifications. To see notifications: Touch the status bar to reveal the Notifications tab, and then drag it down to open the Notifications panel.
-
Page 11: Touch-Screen Navigation
Touch-screen Navigation Your phone’s touch-screen lets you control everything using your fingers. Choose one of the following touch gestures. Touch To select items such as applica- tion and settings icons, to press onscreen buttons, or to type using the onscreen keyboard, you simply touch them with your finger. -
Page 12: Function Keys
Function Keys Your phone has four fixed-function keys that can be used on any screen. Home Key The Home key ( ) returns to the main Home screen. If you are viewing the left or right extended Home screen, opens the central Home screen (#3 of the 5 total available screens). -
Page 13: Dock Bar
Dock Bar You can easily add, change or remove applications, except four primary applications in the Dock bar. Opening the Application On the Dock bar, touch the applica- tion icon to open it. • When you have added applica- tions, slide the Dock bar up or down to bring more applications into view. - Page 14 Changing an Application Touch and hold the application you want to change. From the Dock Setting window touch Change Choose the application to which you wish to replace the Dock bar from the Change window. Touch OK to confirm the replace- ment.
-
Page 15: Customize The Home Screen
Customize the Home Screen You can customize your Home screen by creating Shortcuts, adding and removing Widgets, repositioning Widgets and changing the Wallpapers. For an introduction to the Home screen, see “Home screen” . Creating Shortcuts Shortcuts can access a specific contact, activate a feature or launch an applications you have. - Page 16 Adding and Removing Widgets Widgets are self-contained applications that can be placed on either the Home screen or an extended screen. To add a widget: Press to activate the Home screen. Touch and hold on an empty area of the screen. From the Add to Home screen window touch Widgets Touch an available widget to place it on your current screen.
-
Page 17: Work With Menu
Work with Menu There are two kinds of menus: options menus and context menus. Using Option Menus Options menus contain tools that apply to the activities of the current screen or application, not to any specific item on the screen. Some applications have more options menu items than can fit in the options menu;... -
Page 18: Onscreen Keyboard
Onscreen Keyboard You can enter text using the onscreen keyboard which appears automatically or when you touch a text field where you want to enter text to open the keyboard. Keyboard Overview Recipient Entry Field Text Mode Caps Lock/Alr Key Delete Key Space Key Entry field a field where text, number, or other characters can... - Page 19 Entering Text Entering text, numbers, symbols, and other special characters with onscreen keyboard just touchs the key to enter text. From the screen where you can enter text, touch the text field to reveal the onscreen keyboard. Select one of following text mode options: • ABC to use alphabetic characters from the onscreen key- board.
-
Page 20: Using Microsd Card
Using microSD Card You can use a microSD card to expand the memory of your phone. Connecting the microSD Card To connect the microSD card: Uncover the microSD slot located on the left side of the phone. Position the microSD card with the gold strips facing down and slide it into place until it is fully inserted and locked in place. - Page 21 To remove the microSD card: To safely remove the microSD card from your device, first you need to unmount the microSD card. Press > > System Settings > Storage > Unmount SD card. Confirm you can safely remove the microSD card. •...
-
Page 22: Installation
INSTALLATION Desktop Installation Your phone should be placed on a level surface near an electri- cal outlet, such as a desk or table top. The angle of the phone is set by the attachment of the provided stand in one of two positions (40°... - Page 23 Connecting the Handset and Headset To connect the headset: Connect the end of the handset cord to the handset jack marked with the symbol. To connect the headphones (Optional): Connect the headset cord to the headset jack marked with the symbol.
- Page 24 To connect to the network: Connect one end of the supplied CAT5 Ethernet cable to the phone marked with the symbol. Connect the other end of the cable to your LAN Ethernet con- nection. (Do not extend the LAN Ethernet cable to the outside of the building.) Note: Skip instructions 5 and 6, if you are connected to a PoE.
- Page 25 To connect power supply (Optional): Connect the AC adapter (not included) to the AC adapter jack. Plug the AC adapter to the outlet. LIP-9070 IP Gigabit Video Phone Power Adapter 48V DC (Optional) To attach the line code cover: ● Ensure all cables are properly routed to where the space be- tween the cover and the pedestal stand, as shown below.
-
Page 26: Call Application
CALL APPLICATION Call Application Screen The Call Application Screen is arranged to help you make and answer a phone call efficiently, touch to display the Call Ap- plication. Note: The on-screen buttons for this application can be different depending on the system. Extension Number Four Function Buttons Dial Buttons... - Page 27 Recent Call Log shows a list of all the calls you have dialed, re- ● ceived, or missed. It offers a convenient way to redial a number, or add a number to your Contacts. Dialed indicates all outgoing calls made from your phone. Received indicates any received calls that were answered.
-
Page 28: Informations
INFORMATIONS Accessories Before using the phone, ensure that you have the following con- tents. If something is missing or not functioning, contact your local distributor. Supplied Items These accessories were supplied with the LIP-9070. • LIP-9070 Station • Corded Handset • Pedestal Stand (with the Line Cord Cover) • LAN Ethernet Cable • Quick Installation Guide... -
Page 29: Important Safety Informations
Important Safety Informations Improtant safety informations that will help you safely use your phone. Failure to read and follow the important safety informa- tion in this guide may result in serious bodily injury, death, or property damage. WARNING: Violation of the instructions may cause serious injury of death. - Page 30 • Avoid installing the product on a shelf or a slanted surface. If not, the product could fall, causing personal injuries or defects on the phone. • Avoid installing the product close to other electronic prod- ucts such as TV, audio instruments, etc. It may cause some noises due to electromagnetic interference.
- Page 31 CAUTION: Operation • Do not let anybody disassemble or alter the device other than qualified service personnel. Contact the distributor and the customer service center for the inspection and repair. Fire, an electric shock or problems could be caused. • Do not touch the power plug during lightning storms. It can cause an electric shock or death.
- Page 32 • Avoid using the phone where there is a gas leakage. If there is a gas leakage, do not touch the phone, phone cord and receptacle with hands and open the window for ventilation. Flames may cause explosion, resulting in fire or burn injury. • When the charging contacts are wet with water or stained with foreign materials, use the product after wiping them with dry towel.
-
Page 33: Regulatory Notes
Regulatory Notes FCC/IC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protec- tion against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the in- structions, may cause harmful interference to radio communica-... - Page 34 CAUTION: Any changes or modifications in construction of this device which are not expressly approved by the party respon- sible for compliance could void the user’s authority to operate the equipment. European Union Declarations of Conformity Ericsson-LG Co.,Ltd. declare that the equipment specified in this document bearing the “CE”...
-
Page 35: Specification
Specification Please note that all specifications are subject to change without notice due to product improvements. Phone Architecture Cortex A8 1Ghz Operating System Android 2.3 (Gingerbread) Flash Storage E-MMC 4GB Flash DDR Memory (RAM) 512MB (DDR2) External Memory mini SD/MMC (tFlash) Interface Network LAN: Two port Ethernet switch... - Page 36 RF/Codec Bluetooth Bluetooth 2.1 + EDR Codec G.711/G.722/G.729AB Audio Dynamic range > 70dB at 1khz Frequency Range 200 to 15khz at Media 200 to 7khz at voice Acoustic Echo cancellation Dynamic Noise Reduction Security LLDP-MED OpenVPN WPA(802.1x) MD5 mechanism (RFC1321) EAP - Extensible Authencitication Protocol HTTPS Temperature...
-
Page 37: Open Source Software Notice
Open Source Software Notice This following GPL (General Public License) software used in this product are subject to the GPL License Agreements. You can obtain a copy of the GPL licenses from Ericsson-LG Web Site (http://www.ericssonlg.com). GPL License: appweb bash ntpclient bluez openlldp... -
Page 38: Caring For The Environment By Recycling
Caring for the Environment by Recycling This symbol means that your phone or other electrical accessories should not be disposed of with household waste. Do not throw your phone or battery in the trash. Disposal of your old appliance When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Direc- tive 2002/96/EC. - Page 39 The contents of this document are subject to revision without notice due to continued progress in methodology, design and manufacturing. Ericsson-LG shall have no liability for any error or damage of any kind resulting from the use of this document. ISSUE 1.0 www.ericssonlg.com Posted in Korea...
