Page 1 Ser[LOG] Operator’s Manual · Version 17.21 From firmware: 1.200 LAMBRECHT meteo GmbH · Friedlaender Weg 65-67 · 37085 Goettingen Phone: +49 551 4958-0 · E-Mail: info@lambrecht.net LAMBRECHT meteo GmbH Ser[LOG] Manual Page 1 of 129...
Page 2: Table Of Contents
Jumper field terminating resistor and interface driver RS485 / RS422 ..... 117 Warranty ......................... 119 Change history ....................... 120 Ser[LOG] sensor assignment ................121 ASCII character table ..................... 126 Technical data ......................127 Disposal........................129 LAMBRECHT meteo GmbH Ser[LOG] Manual Page 2 of 129...
Page 3 © Copyright 2017-2021 by LAMBRECHT meteo GmbH, Germany Copyright & Disclaimer All information published in this manual’s contents is subject to copyright and other laws for protection of intellectual property. The use, storage, modification, copying and distribution of any content require our prior written consent.
Page 4 Description Ser[LOG] for serial sensors ................12 Description AnDiMod · Measurement module for analogue / digital sensors ....... 15 Description Ser[LOG]Plus · Combined logger for serial, digital and analogue sensors ..16 Wiring - Device Connection ..................17 Supply voltage ........................17 Connection - Serial devices ....................
Page 5 Display Off ..........................31 General Operation of the Ser[LOG]-Commander ............32 Safety properties for Ser[LOG] and Ser[LOG]_Cmd ............. 33 Configuring the "Ser[LOG] function" ..................34 Function „Tools“ ........................37 Function „Display instantaneous values“ ................37 Function “Retrieve measured values“ ................... 38 Function “Display measurement data“...
Page 6 Data Record Setup Logger Configuration (MQTT / HTTPS Post) ......77 6.1.1.9 Settings for IP communication via mobile radio modem ......... 78 6.1.1.10 Setting SMS alarm ....................79 Configuration of the switching outputs and alarms ..........80 LAMBRECHT meteo GmbH Ser[LOG] Manual Page 6 of 129...
Page 7 Setting the logger safety register ................... 96 12.5 Activating the logger safety ....................99 12.6 Deactivating the safety settings ..................... 99 Connection diagrams .................... 100 13.1 Overview - Terminal assignment Ser[LOG]Plus..............100 Supported serial protocols ................... 108 14.1 NMEA ..........................108 14.2 RPT350 ..........................108 14.3 PTB330 ..........................
Page 8 Warranty ......................... 119 Change history ....................... 120 Ser[LOG] sensor assignment ................121 19.1 Sensor assignment - AnDiMod or Ser[LOG]Plus analog section ........122 19.2 Sensor assignment - AnDiMod or Ser[LOG]Plus analog section ........123 19.3 Sensor assignment - AnDiMod or Ser[LOG]Plus analog section ........124 ASCII character table .....................
Page 9 Technical data ......................127 Disposal........................129 LAMBRECHT meteo GmbH Ser[LOG] Manual Page 9 of 129...

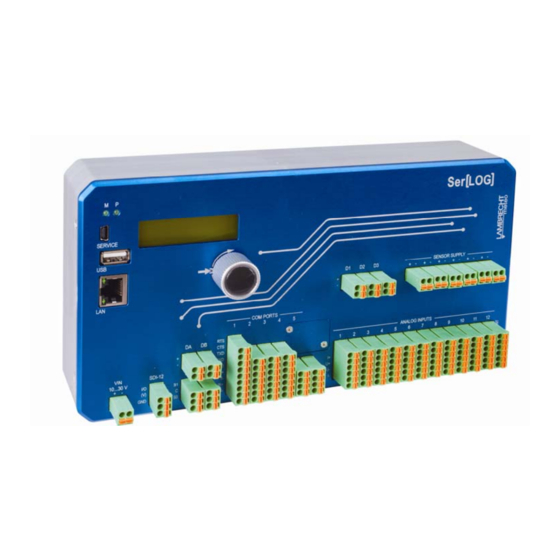

Page 10: Description Ser[Log]
A maximum of 60 channels are supported, wherein each respective channel corresponds to one measured parameter. The Ser[LOG]Plus already includes an AnDiMod module with the address 1 in its housing and can be extended by 2 more AnDiMod modules (address 2 and 3) each extension offering up to 36 analogue and 11 digital channels.
Page 11 Ser[LOG] can be easily and quickly assigned by "point and click" with sensors from the LAMBRECHT product range. In addition, users can add their own sen- sors and thus extend the sensor library.
Page 12: Description Ser[Log] For Serial Sensors
Export of data and Ser[LOG] configuration, • • Import of a Ser[LOG] configuration, Update of the device firmware, • Activation of a Bluetooth stick and • Reading of device information. • LAMBRECHT meteo GmbH Ser[LOG] Manual Page 12 of 129...
Page 13 The supply of the SDI-12 bus must take place separately. Status Inputs The two status inputs "DA" and "DB" can be used for registration of states (switch ON / OFF). LAMBRECHT meteo GmbH Ser[LOG] Manual Page 13 of 129...
Page 14 AnDiMod ter- If the Ser[LOG] is extended with one or more AnDiMod modules, the con- minal clamp nection is made via the 4-pin terminal on the bottom of the housing. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 14 of 129...
Page 15: Description Andimod · Measurement Module For Analogue / Digital Sensors
(upon extending a Ser[LOG]) must carry address 1. The first module (upon extending a Ser[LOG]Plus) must carry address 2, since AnDiMod with address 1 in Ser[LOG]Plus is already inte- grated. The respective address of AnDiMod is fixed and cannot be customized by the user.
Page 16: Description Ser[Log]Plus · Combined Logger For Serial, Digital And Analogue Sensors
AnDiMod Terminal clamp AnDiMod The Ser[LOG]Plus consists of a Ser[LOG] and a AnDiMod module (address 1) in a housing. Controls, interfaces and label are mostly identical. Since the Ser[LOG]Plus already has an integrated AnDiMod module has the COM6 interface is occupied by the AnDiMod module and COM6 terminal (unlabeled) is disabled.
Page 17: Wiring - Device Connection
Example of lower jumper field: RS485 hardware driver for COM2 to COM6 activated. Note: In order to use the occupied COM interfaces, they must be switched on and configured with the Ser[LOG]-Commander. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 17 of 129...
Page 18: Special Case - Sensors With Rs485 Interface In Talker Mode Rs422
Some sensors transmit their readings automatically within a fixed time interval; they are operating in the so-called talker mode. LAMBRECHT meteo sensors that have an RS485 interface and are operated in talker mode, can be connected to the Ser[LOG] and to the "R +" and "R" terminal (Read-lines) of a RS422 configured interface.
Page 19: Special Case Sensors With Rs422 Interface In Talker Mode On Rs485
Some sensors transmit their measured values automatically in a fixed time interval; they are then oper- ated in the so-called talker mode. Sensors from LAMBRECHT meteo, which have an RS422 interface that is operated in talker mode, can also be connected to the "D+" and "D-" terminals of an interface configured as RS485 on the Ser[LOG].
Page 20: Connection - Modem With Rs232 Interface
RS232 RS232 R+/D+ R+/D+ with hand- no hand- shake shake R-/D- R-/D- Note: In order to use the occupied COM interfaces, they must be switched on and configured with the Ser[LOG]-Commander. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 20 of 129...
Page 21: Connection Of Analogue Sensors
Connection - Sensors with voltage signal Voltage signals can be measured by the Ser[LOG]Plus or AnDiMod up to a maximum of 5V. If sensors with higher voltages (e. g. 10 V) are to be measured, suitable voltage dividers must be used. For the measurement of millivolts (mV) signals, the analogue inputs can be set to the measuring range ±...
Page 22: Connection - Resistance Measurement Pt100, Pt1000, Potentiometer
2.3.3 Connection - Resistance measurement Pt100, Pt1000, potentiometer Ser[LOG]Plus or AnDiMod can measure resistors in the measuring ranges 500 Ω and 5000 Ω. Typical sensors with resistance outputs are e. g. temperature sensors with Pt-100 or Pt-1000 or wind direction sensors with 1000 Ω...
Page 23: Connection - Sensors With Pulse Signals (Counter)
Connection - Sensors with pulse signals (counter) Sensors with pulse outputs (e. g. precipitation meter with tilting scale) can be connected to the inputs "D1","D2" and "D3" of the Ser[LOG]Plus or AnDiMod. Note: No pulses can be measured with the digi- tal inputs "DA" and "DB"!
Page 24: Connection - Relay Outputs
(numbering following). The first module that can be used to expand a Ser[LOG] must have the address 1. The first module that can be used to expand a Ser[LOG]Plus must have the address 2, since an AnDiMod with the address 1 is already integrated in the Ser[LOG]Plus. An AnDiMod module with address 3 can only be connected to the Ser[LOG] if the AnDiMod modules with address 1 and address 2 have already been connected to the Ser[LOG] bus.
Page 25 Ser[LOG]Plus + AnDiMod 2 Ser[LOG] + AnDiMod 1 + AnDiMod 2 + AnDiMod 3 Ser[LOG]Plus + AnDiMod 2 + AnDiMod 3 Note: Do not connect more than 3 AnDiMod to the Ser[LOG] resp. 2 AnDiMod to the Ser[LOG]Plus. Data+ Data+ Data+ Data-...
Page 26: Display Menu
By turning the rotary pushbutton, it is possible to switch between the individual sensors. The number of the measuring channel (01), the configured sensor designation and the current measured value are displayed. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 26 of 129...
Page 27: Data Export
The configuration to be imported can have been saved by a Ser[LOG] via the "Data Export" function on the USB stick or was created using the Ser[LOG]Commander. The configuration file "serlog cfg" must be stored on a USB memory stick in the "serlog" directory. The import is started by the Config Import function.
Page 28: Firmware Update
Note: The input cannot be cancelled. If an incorrect password has been set by mistake, the function is aborted, and the display returns to the basic menu. Insert USB Stick LAMBRECHT meteo GmbH Ser[LOG] Manual Page 28 of 129...
Page 29: Bluetooth On
The Info function can be used to query the station number (station ID), the current firmware version and the time of the last configuration in the format JJMMTTT/hhmmss (JJ=year, MM=month, TT=day, hh=hour, mm=minute, ss=second). LAMBRECHT meteo GmbH Ser[LOG] Manual Page 29 of 129...
Page 30 < Date and time of the last configuration MAC Address: 00:50:c2:cd:04:56 < MAC address of the Ethernet adapter IP Address: 192.168.100.179 < IP address of the Ethernet adapter SubNet Mask: 255.255.255.0 < Subnet mask of the Ethernet adapter LAMBRECHT meteo GmbH Ser[LOG] Manual Page 30 of 129...
Page 31: Display Off
As of now, all menu items are available. Logoff: Activating this menu item locks the operating unit of Ser[LOG]. You can activate this function by pressing the rotary pushbutton. Ser[LOG] returns: Logoff Done. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 31 of 129...
Page 32: General Operation Of The Ser[Log]-Commander
If you want to copy the Ser[LOG]-Commander to a USB stick or a PC, all files contained in the Ser[LOG]_Cmd folder must be copied as well. The files must always be in the same shared directory. You start the Ser[LOG]-Commander by calling the "SerLog_Cmd. exe". After starting, the following main...
Page 33: Safety Properties For Ser[Log] And Ser[Log]_Cmd
When starting Ser[LOG]_Commander, the user is asked to identify himself. Since the Ser[LOG]_Commander is a tool that grants full access to the logger, the administrator is sug- gested as the user. With freshly installed software, the password admin is assigned to the administrator.
Page 34: Configuring The "Ser[Log] Function
. Point the mouse at the area and hold down the left mouse button. completes the change, rejects the change. Configuring the "Ser[LOG] function" Use the button to start the configuration tool of the Ser[LOG]-Commander. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 34 of 129...
Page 35 Wind data Up to 2 pairs of wind sensors can be defined The data calculated here can be for which the moving average value is calcu- visualized with the LAMBRECHT MeteoWare-CS4 software. lated. Outputs Configuration of up to 10 switching channels and actuators for "process control", "error...
Page 36 New record Saves the current configuration loaded in the display. Exits the configuration tool and closes the window. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 36 of 129...
Page 37: Function „Tools
The information content corresponds to the nection via UDP "standard format". UDP is only possible via net- work / Ethernet Stops data retrieval Exit function Exits the tool and closes the window. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 37 of 129...
Page 38: Function "Retrieve Measured Values
Opens the measured value selection for the graphic Goes back one day Goes on one day Turns on the vertical zoom Shows a reading ruler on the graphic Exit function. Exits the tool and closes the window. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 38 of 129...
Page 39: Function "Sensor Definition
Copies the currently opened actuator definition and displays a window for assigning a new name to the actuator. Saves the currently opened actuator. Changes in factory defined actuators cannot be saved. Exit function. Exits the tool and closes the window. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 39 of 129...
Page 40: Commissioning / Basic Configuration
After the sensors have been connected, connect them to the supply voltage. Note: Please note that the Ser[LOG] must be supplied with 10...30 VDC and that this supply voltage is transmitted via the Ser[LOG]-Bus to the "SENSOR SUPPLY" terminals of the AnDiMod. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 40 of 129...
Page 41: Configuration Of The Ser[Log]
"driver" from the company "ELMO" and the interface is then called "ELMO GMAS". To uniquely identify the USB interface as Lambrecht service port, please update the driver for this in- terface via the device manager by "updating" the driver. Depending on your operating system please...
Page 42: Configuration Via Usb Bluetooth Stick
Select the "LAMBRECHT Service Port". 5.3.1.2 Configuration via USB Bluetooth stick Note: At present, the Ser[LOG] only supports Bluetooth sticks with a Bluetooth chip from CSR. Plug a suitable Bluetooth stick into the USB-HOST connector of the Ser[LOG] and activate the Bluetooth connection by navigating to the menu item "Bluetooth ON"...
Page 43: Activating Andimod Extension Modules
The number of measuring modules can be set in the frame "Analog Measuring Modules". With a Ser[LOG], the number of measurement modules is set to "0". With a Ser[LOG]Plus, an AnDiMod meas- urement module is already integrated in the housing. Therefore, check whether the number of meas- urement modules in the Ser[LOG]Plus is set to "1".
Page 44: Setting Instantaneous Values As 3-Second Moving Averages
LAMBRECHT MeteoWare CS-4. On the other hand, too large timeout times and too many repetitions lead to long waiting times in the event of connection errors, e.g. when retrieving the configuration, during which time the Ser[LOG] Commander cannot be operated, for example! In the "Advanced network settings"...
Page 45: Communication Via Serial Interface Rs232 / Rs485 / Rs422
5.3.5 Configuration of the sensors The Ser[LOG]-Commander offers an extensive library of preconfigured sensors from the LAMBRECHT meteo product portfolio. The sensor library can be extended by the user with own sensors. The measurement channels are assigned via the "Measurement channels 1...40" and "Measurement channels 41...60"...
Page 46 It is also possible to enter a linear correction for each sensor according to the formula Y=A*X+B, where X is the measured value and Y is the corrected value. The Y- value is processed further in each case. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 46 of 129...
Page 47: Configuration Global Radiation Sensors
3. Afterwards, the transmitted parameters/measured values must be assigned to the internal measurement channels. 5.3.5.3.1 Configuration of the serial interface for sensors For the sensor assignment of the interfaces, please open the register selection "Interfaces" of the con- figuration window. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 47 of 129...
Page 48: Setting The Data Retrieval Interval For Sdi-12, Modbus Rtu And Modbus Tcp Sensors
The measured values of sensors with SDI-12, Modbus RTU or Modbus TCP are not transmitted auto- matically, but must be called up by the Ser[LOG]. For this purpose, the respective call-off interval must LAMBRECHT meteo GmbH Ser[LOG] Manual Page 48 of 129...
Page 49: Assignment Of Serial Sensors To The Measurement Channels
Note: Modbus sensors often supply several parameters. For the Ser[LOG], each parameter must be treated as a single sensor. Note: The Modbus register containing the respective value is specified in the respective sensor defini- tion. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 49 of 129...
Page 50: Assignment Of Modbus Tcp Sensors To The Measurement Channels
When selecting virtual sensors, the window "Definition of virtual sensors" is opened, in which the pa- rameters for calculating the respective value are defined. A list of available virtual sensors can be found in chapter 14.4.6 and chapter 14.4.7. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 50 of 129...
Page 51: Configuration Of Sensors With Look-Up Table
"nonsensical" sensor config- urations that could interfere with the operation of the Ser[LOG]. It is therefore recommended to work with the predefined sensors if possible or to derive new sensors from existing sensors! LAMBRECHT meteo GmbH Ser[LOG] Manual Page 51 of 129...
Page 52 The "Abbreviation" is the text that appears on the display of the data logger and is used by the LAMBRECHT programs "MeteoWare_CS" or "MeteoWare_Net_Center". Only a restricted charac- ter set (ASCII) is available for this field. A table with the permitted characters can be found in Chapter Enter the unit of the sensor in the "Unit"...
Page 53 Please also enter the rocker factor (mm per pulse) for this application. In addition, the Ser[LOG] calculates a frequency-dependent correction of the precipitation quantity. (The correction is only valid for LAMBRECHT precipitation sensors without integrated correction.) Harmonic mean Calculates and stores the harmonic mean value of the measured value.
Page 54: Channel Type - Analog
Select the required measuring range. If you want to measure a voltage greater than 5 V, apply the voltage via a suitable voltage divider which generates a voltage suitable for Ser[LOG]. The scaling of the measuring signal is carried out according to the following "scaling modes": LAMBRECHT meteo GmbH Ser[LOG] Manual Page 54 of 129...
Page 55 Scaling with the use of up to 15 calibration points • Look_Up_Table_2 in table 2. See also chapter 5.3.6.4 Configuration of sen- sors with look-up table Example: Sensor type “Polynom” LAMBRECHT meteo GmbH Ser[LOG] Manual Page 55 of 129...
Page 56: Channel Type - Status
0 or 100. This means that an average value can be displayed for the sta- tus in %. A value of 50% then means that the status was 50% of the measurement interval active and 50% inactive. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 56 of 129...
Page 57: Channel Type - Digital
The upper figure shows the scaling for a precipitation sensor with reed switch. The pulses are recalcu- lated minute by minute according to the correction of the intensity characteristic curve and multiplied by the rocker factor. In this case, a pulse = 0.1 mm/m² precipitation. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 57 of 129...
Page 58: Channel Type - Modbus
Since there is no standardized value for the timeout in the Modbus protocol, a timeout time for the measured value can be defined in steps of 250 ms in the field "Timeout". LAMBRECHT meteo GmbH Ser[LOG] Manual Page 58 of 129...
Page 59: Channel Type - Sdi-12
Several protocols for serial sensors are implemented in Ser[LOG]. Most serial sensors are already avail- able as predefined sensors. To be able to access measured values retrieved with these protocols, a sensor is defined for each measured value. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 59 of 129...
Page 60 Vessel Speed kt from this protocol VBW Vessel Course Vessel Course from this protocol VBWVessel Speed kt Vessel Speed kt from this protocol Various values such as temperature, humidity, air pressure, etc. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 60 of 129...
Page 61: Channel Type - Virtual
Horizontal visibility Calculation based on suitable measuring devices (FS11) Runway visibility RVR Calculation based on suitable measuring devices (FS11) Standard deviation (wind direction) Calculation of the standard deviation of the wind direction. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 61 of 129...
Page 62: Special Function For Sensor Definition
180°. Service switch If a status input is defined as a "service switch", the mean value storage is sus- pended as long as the service state is > LAMBRECHT meteo GmbH Ser[LOG] Manual Page 62 of 129...
Page 63: Displaying Instantaneous Values
On the analog channels it is determined that no sensor is connected, and the channel is open. This cannot be detected on the digital channels. Serial channels indicate that no serial data is present. The button stops the data retrieval. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 63 of 129...
Page 64: Display Of The Current Electrical Raw Values
5.3.4.1) of the PC setting (chapter 5.3.4). Pressing the "Start UDP instantaneous values" button starts the fast instantaneous value retrieval via UDP and the current scaled instantaneous values are displayed. The button stops the data retrieval. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 64 of 129...
Page 65: Display Of Moving Wind Data
Over-Flow - The maximum permissible measurement value has been exceeded. Un-Flow Under-Flow - The measured value has fallen below the minimum permissible value. No-Value No-Value - There is no valid measured value or no valid value can be supplied. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 65 of 129...
Page 66: Recalling And Saving Measured Values
Attaching the data to existing files is not possible. The used field separators and the decimal characters that are used can be set under "Other functions" , "CSV settings". LAMBRECHT meteo GmbH Ser[LOG] Manual Page 66 of 129...
Page 67: Display Measurement Data
Display measurement data graphically The call of starts the graphical evaluation. After selecting the data file to be evaluated, two measured value series are selected for display. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 67 of 129...
Page 68 This choice leads to the following graph: LAMBRECHT meteo GmbH Ser[LOG] Manual Page 68 of 129...
Page 69: Ip Communication
In the sub-tabs "GPRS", "NTP", "FTP", "Email", "MQTT", "HTTPS post", "SMS", "Export Format" and "Dataset MQTT / HTTPSPost" the configuration of the corresponding functions is done. These are de- scribed in the following subchapters. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 69 of 129...
Page 70: Synchronization Of The Clock Via Ntp
_YYYYYMMDDD_HHmm in the field "Name extension". This means that the main component is extended by the date and time of the transmission each time the data is saved. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 70 of 129...
Page 71 Settings for the export format.) The sequence of the data and its information content for FTP export is defined in the settings for the "Export format". See chapter 6.1.1.4. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 71 of 129...
Page 72: Transmission Of Measured Values Via Email / Email Alarm
11:00 23:00 • • Note: If the function is used in conjunction with mobile communication, a transmission interval of less than 30 minutes is not recommended for a poor network connection. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 72 of 129...
Page 73: Setting The Export Format For Ftp And Email
Note: If you want to transfer the extreme values minimum and maximum, then the checkbox "Extreme value storage" must be activated in the "General" tab of the operating modes. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 73 of 129...
Page 74: 6.1.1.5 Ser[Log] & Synmet_Iia - Neue Features Mqtt & Https Post
4 lines - Station identification / Sensor identification / Sensor type / Unit 6.1.1.5 Ser[LOG] & SYNMET_IIA – Neue Features MQTT & HTTPS Post The firmware of the Lambrecht data loggers Ser[LOG] and SYNMET_IIA is now extended by communi- cation protocols MQTT and HTTPS Post.
Page 75: 6.1.1.7 Settings Https Post
MQTT Logger Configuration (Target): Lambrecht data logger support MQTT with realtime values (interval: 1, 2, 5, 10, 15, 20, 30 60 second) depending on the quality of data transmission (Ethernet connections support the shorter intervals). Realtime values are using its own topic on the Broker. They are transmitted with quality of service 0.
Page 76 HTTPS Post Logger Configuration (Target): Lambrecht data logger support HTTPS Post with realtime values (interval: 1, 2, 5, 10, 15, 20, 30 60 second) depending on the quality of data transmission (Ethernet connections support the shorter inter- vals). Average and extreme values are transmitted to the roker in intervals of 1, 2, 3, 5, 6, 10, 15, 20, 30 and 60 minutes.
Page 77: Data Record Setup Logger Configuration (Mqtt / Https Post)
6.1.1.8 Data Record Setup Logger Configuration (MQTT / HTTPS Post) Lambrecht data logger support up to 60 sensors (measuring channels). Some of channels may be used for holding intermediate results for calculation of virtual sensors. These results are not of interest in the data record for MQTT or HTTPS Post.
Page 78: Settings For Ip Communication Via Mobile Radio Modem
• • „GPRS on demand“. With the "virtual leased line", the Ser[LOG] establishes a connection to the Lambrecht application "Me- teoWare CS4" or "MeteoWare-Net-Center". With "GPRS on demand" only one connection to the Internet is established. For both types, Ser[LOG] can use "NTP","FTP"...
Page 79: 6.1.1.10 Setting Sms Alarm
FTP or e-mail. From a cost point of view, it can also be cheaper to use the alarm via email instead of the SMS alarm. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 79 of 129...
Page 80: Configuration Of The Switching Outputs And Alarms
"Channel" selection box. The following 4 control and monitoring functions are available for each switching channel: • Process control Cycle control • fault monitoring • Area monitoring • LAMBRECHT meteo GmbH Ser[LOG] Manual Page 80 of 129...
Page 81: Process Control
The time after the cycle time at which the respective switching channel is set to 0 (OFF) is set in the fields next to "Run-on" in hours (HH), minutes (MM) and seconds (SS). The duration of the switching process (time period) results from the sum of pre run + post run. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 81 of 129...
Page 82 Example of a combination of process control and cycle control In the example above, relay 1 switches on every minute for 20 seconds (10 seconds advance + 10 seconds follow-up) from 7:00 to 17:00. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 82 of 129...
Page 83: Error Monitoring
Note: Error monitoring can be combined with process control and area monitoring. A simultaneous cycle control together with error monitoring at the same switching output is not possible! LAMBRECHT meteo GmbH Ser[LOG] Manual Page 83 of 129...
Page 84: Area Monitoring
25 °C of global radiation (S 06) when the set maximum limit value is exceeded: 700 W/m². with a switch-on delay of 30 seconds or a switch-off delay of one minute. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 84 of 129...
Page 85: Group-Related Area Monitoring (And Operation)
"ON outside" must be set here. For the 135 to 225 degree segment, however, the switching logic must be set to "ON within". LAMBRECHT meteo GmbH Ser[LOG] Manual Page 85 of 129...
Page 86: Modbus Relay
(Modbus actuator bus) must be configured on a COM interface. For this purpose, the standard:"RS485" and the protocol: "Modbus relay" must be selected in the Ser[LOG] configuration under the register selection "Interface" for the COM interface used. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 86 of 129...
Page 87: Definition Of New Modbus Relays
"new" definition window. In this mode, the "Modbus Relay" selec- tion box is an input field in which you can enter the name of the Modbus relay. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 87 of 129...
Page 88: Configuration Of Wind Data Processing
WG Vector averaging with linked wind speed measurement. vectorial with WG = 1 m/s Vector averaging with a unit wind speed of 1 m/sec. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 88 of 129...
Page 89: Dialogue - Tool
It has been proven to calculate the wind direction vectorially with a virtual speed of 1 m/s and to consider the wind speed as a scalar value. The data calculated here can be displayed with the LAMBRECHT application MeteoWare-CS4.
Page 90: Firmware Update
5.3.1.1, chapter 5.3.1.2 and chapter 5.3.4. Malfunctions or damaged firmware cannot affect the Ser[LOG]. If no valid, valid firmware is delivered, the Ser[LOG] ignores the update attempt and continues to work with its existing firmware. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 90 of 129...
Page 91: Other Functions - Usb Stick Readout
Important note: The application asks after downloading the data whether the USB stick should be deleted! It is therefore recommended to use a USB stick that is only intended for data export and does not contain any other important data! LAMBRECHT meteo GmbH Ser[LOG] Manual Page 91 of 129...
Page 92: Managing The Safety Settings
Managing the safety settings LAMBRECHT meteo GmbH Ser[LOG] Manual Page 92 of 129...
Page 93: Register User Accounts
LAMBRECHT meteo GmbH Ser[LOG] Manual Page 93 of 129...
Page 94: Register "Password Guidelines
The following two registers describe the activation of a protection mechanism that merges Ser[LOG] and the application software (Ser[LOG]_Cmd and MeteoWare_CS_4) into one unit. Only programs and loggers in which the code for the fusion of software and hardware is stored can then communicate with each other.
Page 95: Register Hardware-Software Fusion Key
Lambrecht's experience, follow the factory default almost 100% of the time. Locking the operating unit prevents unauthorized persons from making direct changes to the logger. 12.3 Register Hardware-Software Fusion Key The key for fusion of software and hardware is entered in the corresponding field. A 12-digit numerical code is entered in the Administrator master key field, which can be used to unlock the service unit on the logger if the logger has been protected.
Page 96: Setting The Logger Safety Register
12.4 Setting the logger safety register Any communication with the data logger performed under this tab is done via Lambrecht Service Port (USB). Query the current security status: Select the interface "Lambrecht Service Port". retrieves the safety setting from the Ser[LOG] There is no safety setting so far The logger is protected and is not yet ready for communication.
Page 97 After the logger operating unit has been enabled, the check can be continued. In this case, the logger is protected. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 97 of 129...
Page 98 If the logger has an active protection that does not match the current fusion code, please enter the correct code in the Hardware-Software Fusion Key tab and retrieve the security settings again. If this issue still appears, please contact LAMBRECHT meteo. LAMBRECHT meteo GmbH...
Page 99: Activating The Logger Safety
Only if the retrieval of the security settings was successful and the set fusion code is identical to the current fusion code, the administrator can deactivate the security settings. deactivates the security setting LAMBRECHT meteo GmbH Ser[LOG] Manual Page 99 of 129...
Page 100: Connection Diagrams
Connection diagrams Overview - Terminal assignment Ser[LOG]Plus 13.1 LAMBRECHT meteo GmbH Ser[LOG] Manual Page 100 of 129...
Page 101 LAMBRECHT meteo GmbH Ser[LOG] Manual Page 101 of 129...
Page 102 LAMBRECHT meteo GmbH Ser[LOG] Manual Page 102 of 129...
Page 103 LAMBRECHT meteo GmbH Ser[LOG] Manual Page 103 of 129...
Page 104 LAMBRECHT meteo GmbH Ser[LOG] Manual Page 104 of 129...
Page 105 LAMBRECHT meteo GmbH Ser[LOG] Manual Page 105 of 129...
Page 106 LAMBRECHT meteo GmbH Ser[LOG] Manual Page 106 of 129...
Page 107 LAMBRECHT meteo GmbH Ser[LOG] Manual Page 107 of 129...
Page 108: Supported Serial Protocols
Proprietary protocol of Vaisala's LD-40 cloud height meter. The sensor is no longer available. 14.6 CL31 msg 2_base Proprietary protocol of the CL31 cloud height measuring device from Vaisala. 14.7 FS11 Proprietary protocol of the Vaisala FS11 visual range finder. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 108 of 129...
Page 109: Rain[E] 'Sdi-12 On Rs485
SDI-12 sensors are configured in the Ser[LOG]-Commander via the COM5 interface. The Ser[LOG] supports only a subset of the SDI-12 specification. Only measured values from sensors generated with the CC command can be recorded. Predefined sensors in the sensor library are available for the LAMBRECHT rain[e]. LAMBRECHT meteo GmbH Ser[LOG] Manual...
Page 110: Snap
"Modbus Actuator" must be selected accordingly. 14.20 Ser[LOG] – AnDiMod-Bus (only COM6) If the Ser[LOG] is extended by an AnDiMod module, the LAMBRECHT specific protocol "Ser[LOG] - AnDiMod-Bus" must be selected on the COM6 interface. LAMBRECHT meteo GmbH...
Page 111: List Of Predefined Sensors
0 (wrong) at high level, e. g. 5V or switch open Serves as a basis for the definition of your own sensors. 15.1.2 LAMBRECHT status sensors E_16203.XX0004_Sunshine_duration Sunshine duration sensor (16203) with status output. 0 V = Sun does not shine and 1 V = Sun shines Service Status sensor that prevents the storage of all averages at values >...
Page 112: Predefined Analog Sensors
Standard sensor for resistance measurements in the measuring range up to 500 Ω. Serves as a basis for the definition of own sensors. 15.3.2 LAMBRECHT analog sensors E_08091.000042_Humidity 4-20mA Humidity of the combined TH sensor 00.08091.000042 with 0…100%rh = 4…20 mA signal output E_08091.000042_T_4-20mA_-30-70°C...
Page 113 µV/(W/m²)] must be specified individually for each sensor.) E_16131.X00000_Radiation First Class – Global radiation sensor with mV output. (EMK [in µV/(W/m²)] must be specified individually for each sensor.) D_16321.010342_Helligkeit_4-20mA Brightness sensor with 4…20 mA = 0…100 kLux LAMBRECHT meteo GmbH Ser[LOG] Manual Page 113 of 129...
Page 114: Available Serial Sensors
Air temperature from $WIMTA in °C NMEA TP Dew point from $WIMHU in °C NMEA TS Ground temperature from $WIMTS (LAMBRECHT specific) in °C NMEA TW Water temperature from $WIMTW °C in °C NMEA WG m/s MWV Wind speed from $WIMWV in m/s (Ser[LOG] converts, if delivered in "kt")
Page 115: Additional Serial Sensors (Proprietary)
P2_Container_EZ P2_Container_NEZ Pluvio 2 precipitation sensor in SDI-12 mode. For detailed infor- P2_Int_EZ mation on the parameters, please refer to the instructions of the re- spective sensors. P2_Amount_by_total_NEZ P2_Amount_EZ-NEZ P2_Amount_NEZ P2_Total_amount_NEZ LAMBRECHT meteo GmbH Ser[LOG] Manual Page 115 of 129...
Page 116: Virtual Sensors
If the primary sensor does not work or returns invalid values, the secondary sensor value is redundant air pressure processed further. If both sensors do not work, an error is displayed. redundant dew point LAMBRECHT meteo GmbH Ser[LOG] Manual Page 116 of 129...
Page 117: Jumper Field Terminating Resistor And Interface Driver Rs485 / Rs422
4-pin terminal on the bottom of the housing. The AnDiMod modules occupy the COM6 interface and the COM6 connection is deactivated. Since the Ser[LOG]Plus already has an integrated AnDiMod module, COM6 is not available from the outset. COM2 to COM6 can be switched from RS485 (factory setting) to RS422 via jumper.
Page 118: Switching The Com2 To Com6 From Rs485 To Rs422
By loosening the two Torx screws (size Tx6) the small cover on the right above the COM ports can be removed and the jumper fields underneath can be reached. LAMBRECHT meteo GmbH Ser[LOG] Manual Page 118 of 129...
Page 119: Warranty
Please note the loss that unauthorized manipulation of the system shall result in the loss of warranty and non-liability. Changes to system components require express written permission from LAMBRECHT meteo GmbH. These activities must be performed by a qualified technician. The warranty does not cover: 1.
Page 120: Change History
Change history 28.08.2018 Chapter 2.2.5 Connection – Sensors with SDI-12-Interface - page 19 pasted. M. Müller 28.08.2018 Edits according to Dr. Henn B. Schulz LAMBRECHT meteo GmbH Ser[LOG] Manual Page 120 of 129...
Page 121: Ser[Log] Sensor Assignment
SDI-12  RS 422  RS 485 COM6   AnDiMod to Ser[LOG] bus Note: With Ser[LOG]Plus the COM6 is already occupied by an AnDiMod module! Digital sensors Interface Description Lambrecht Id No. Measurement range  Status high-active / low- ...
Page 122: Sensor Assignment - Andimod Or Ser[Log]Plus Analog Section
19.1 Sensor assignment - AnDiMod or Ser[LOG]Plus analog section  AnDiMod Address 1  AnDiMod Address 2  AnDiMod Address 3  Ser[LOG]Plus (analog) Analog sensors Scaling Interface Description Lambrecht Id No. Measurement range Unit Signal: Signal:  Value: Value:...
Page 123: Sensor Assignment - Andimod Or Ser[Log]Plus Analog Section
 Frequency  (e.g. precipitation) tive 19.2 Sensor assignment - AnDiMod or Ser[LOG]Plus analog section  AnDiMod Address 1  AnDiMod Address 2  AnDiMod Address 3  Ser[LOG]Plus (analog) Analog sensors Scaling Interface Description Lambrecht Id No. Measurement range...
Page 124: Sensor Assignment - Andimod Or Ser[Log]Plus Analog Section
 Frequency  (e.g. precipitation) tive 19.3 Sensor assignment - AnDiMod or Ser[LOG]Plus analog section  AnDiMod Address 1  AnDiMod Address 2  AnDiMod Address 3  Ser[LOG]Plus (analog) Analog sensors Scaling Interface Description Lambrecht Id No. Measurement range...
Page 125 Digital sensors Interface Description Lambrecht Id No. Measurement range Unit  Status high-active / low-ac-  Pulse  Frequency  (e.g. precipitation) tive  Status high-active / low-ac-  Pulse  Frequency  (e.g. precipitation) tive  Status high-aktiv / low-ak- ...
Page 126: Ascii Character Table
"E" , "u" "F" , "v" "G" , "w" "H" , "x" "I" , "y" "J" , "z" "K" , "{" "L" , "|" "M" , "}" "N" , "~" "O" LAMBRECHT meteo GmbH Ser[LOG] Manual Page 126 of 129...
Page 127: Technical Data
NMEA, Modbus-RTU, Modbus-TCP, SDI12 and numerous proprietary protocols (other proto- cols available on request) Memory: 1 year in ring memory (8-byte IEEE real format) • independent of configuration Scope of delivery: USB cable • Configuration software Ser[LOG] Commander LAMBRECHT meteo GmbH Ser[LOG] Manual Page 127 of 129...
Page 128 Ser[LOG] extension: up to 3 AnDiMod Ser[LOG]Plus extension: up to 2 AnDiMod Ser[LOG] and Ser[LOG]Plus are max. expandable to: 36 analog / 11 digital inputs Resolution: 16-bit ADC (SAR) with up to 1024x oversampling Measurement data processing: 8-byte IEEE real format Power supply: via Ser[LOG] or Ser[LOG]Plus 10...30 VDC...
Page 129: Disposal
Disposal LAMBRECHT meteo GmbH is registered at the Foundation Elektro-Altgeräte Register ear under: WEEE-Reg.-No. DE 45445814 In the category “Monitoring and control instruments”, device type: “Industrial monitoring and control in- struments“. Disposal within the EU The device must be disposed of acc. to the European regulations 2002/96/EG and 2003/108/EG (electronics and electronic waste).
