________________________________________________________________________________________________

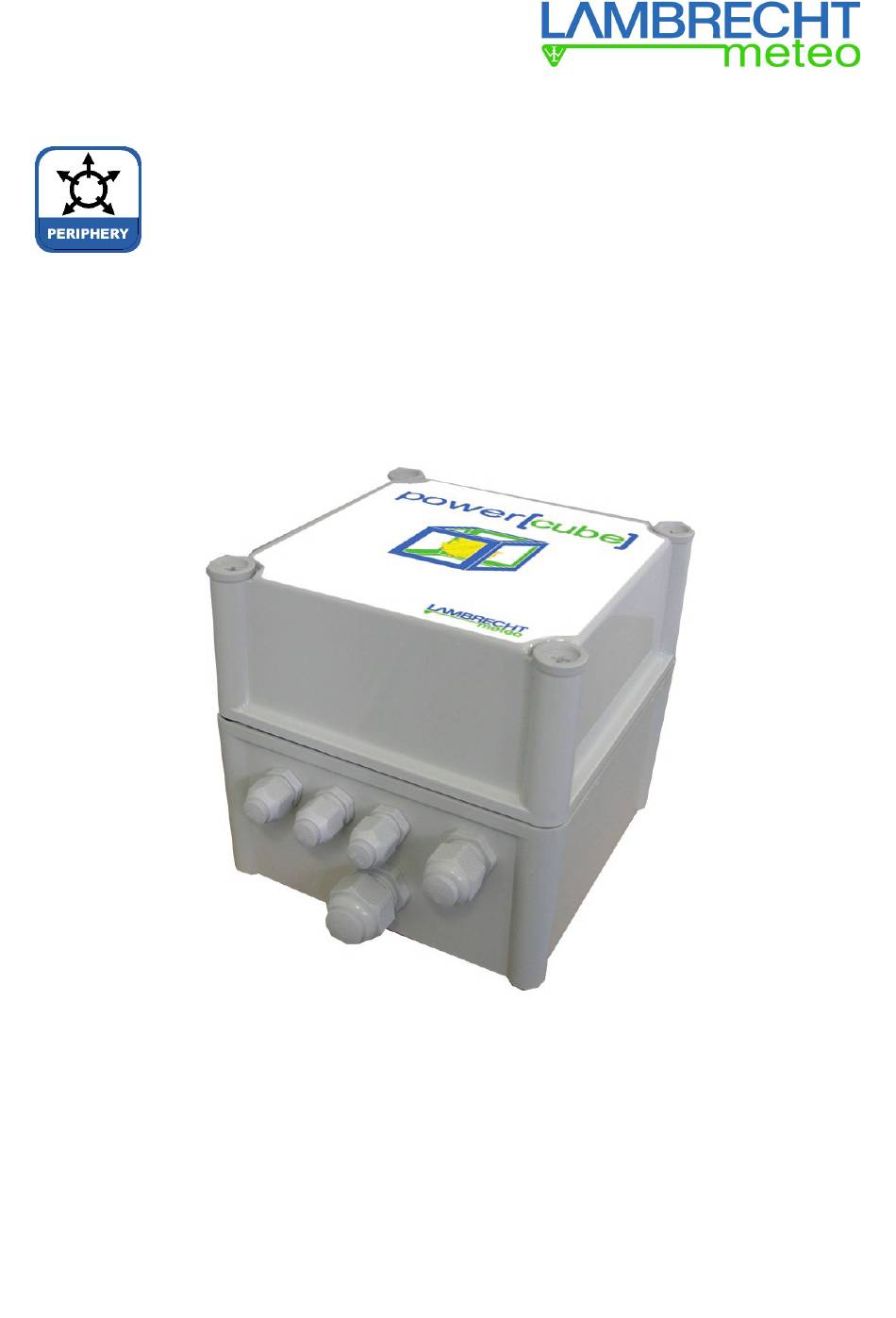

Manual
power[cube] incl. Data Logger met[LOG]
Id-No. 30.95800.015000
power[cube] incl. Data Logger met[LOG]
with Wi-Fi Router
Id-No. 30.95800.115000
________________________________________________________________________________________________
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the power[cube] 30.95800.015000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lambrecht power[cube] 30.95800.015000

Summary of Contents for Lambrecht power[cube] 30.95800.015000

  • Page 1 ________________________________________________________________________________________________ Manual power[cube] incl. Data Logger met[LOG] Id-No. 30.95800.015000 power[cube] incl. Data Logger met[LOG] with Wi-Fi Router Id-No. 30.95800.115000 ________________________________________________________________________________________________...
  • Page 2 ________________________________________________________________________________________________ Power[cube] Wi-Fi with met[LOG] When met[LOG] is delivered it has an automatic reference to an IP address via a DHCP server. The Wi-Fi module is pre-configured to create an own, (initially) unsecured Wi-Fi network. In a few steps this network can be: ⇒...
  • Page 3 ________________________________________________________________________________________________ Setting of a secured Wi-Fi with met[LOG] 1.) The USR-WIFI232-630 Wi-Fi module in power[cube] can be reached under IP address 10.10.100.254 via a browser. 2.) Log in at the website of the Wi-Fi module as user „admin“ with the password „admin“. 3.) The website of the Wi-Fi module is available in English and Chinese.
  • Page 4 ________________________________________________________________________________________________ 8.) To save the configuration press „Apply“. 9.) All other settings in the quick configuration can remain unchanged. 10.) Scroll until the end of the page and restart the Wi-Fi module by pressing „Restart“. By doing the restart the changed configuration will work. 11.) After restart you reach the met[LOG] via the secured Wi-Fi network with afore set name and password, e.g.: Network name: Met[LOG]-Wi-Fi...
  • Page 5 ________________________________________________________________________________________________ Integration in an existing network with an own DHCP server via Wi-Fi Following the previous chapter the network in the following configuration example has the Wi-Fi name „FB- LM“ and the address area 192.168.100.1 - 192.168.100.254. The password of the network is „1234567890“. These data have to be replaced with the data of the existing network in which the power[cube]-Wi-Fi is integrated.
  • Page 6 ________________________________________________________________________________________________ 6.) Start the search for available networks by confirming the button „Search“ next to „AP‚s SSID). Another window will open. 7.) Choose the Wi-Fi network in which the power[cube] Wi-Fi shall be integrated. In the present example it is the network with SSID (Name) „FB-Lm“.
  • Page 7 ________________________________________________________________________________________________ 11.) Open the page „AP Interface Setting“ via the corresponding link. 12.) Change the LAN settings (LAN Setup) of the Wi-Fi module: IP Address (Default Free IP address (fix) in destination Wi-Fi for DHCP Gateway) Wi-Fi module Subnet Mask Subnet mask of destination network (e.g.
  • Page 8 ________________________________________________________________________________________________ 15.) Scroll until the end of the page and restart the Wi-Fi module by pressing „Restart“. By doing the restart the changed configuration will work. 16.) Disconnect the met[LOG] or the complete power[cube] Wi-Fi from mains power supply (e.g. by opening the fuse terminal) and wait until all LEDs have gone out.
  • Page 9 ________________________________________________________________________________________________ Return Wi-Fi module to factory settings There are 2 ways to return the Wi-Fi module to factory settings: via software button on the configuration webpage of the Wi-Fi module via hardware button at the outside of the housing below the green 3-pole terminal Factory setting via configuration webpage If the Wi-Fi module can still be reached via the browser you can return to factory setting with the „Load Default Button“...

  • Page 10: Technical Data

    Data logger met[LOG] and Wi-Fi router Ident-Nr. 30.95800.115000 power[cube] power[cube] incl. Data logger met[LOG] Ident-Nr. 30.95800.015000 Subject to change without notice. BA_WiFi_powercube_metLOG_e (13.20) ______________________________________________________________________________________ LAMBRECHT meteo GmbH +49-(0)551-4958-0 Friedlaender Weg 65-67 +49-(0)551-4958-312 37085 Goettingen E-Mail info@lambrecht.net Germany Internet www.lambrecht.net...
