10. Erasing the flash memory (using the WriteEZ4)
If the preprogrammed software is written to the flash it is mandatory to erase the flash of the device before it
is possible to use the Applilet EZ or the IAR Embedded Workbench with the TK-78K0RKE3L board. To
erase the flash please perform following steps.
1.
Make sure that the TK-78K0RKE3L board is in the Debugging/Writing mode.
It! Switch and Jumper
2.
If not already connected, connect the TK-78K0RKE3L board via USB1 connector to the
target device.
3.
Run the WriteEZ4 flash programming software.
4.
Select the right .prm file as explained in chapter
78F1009.prm file can be found on the CDROM in the folder "CDROM\WRITEEZ4\PRM
files"
5.
Click the erase button
6.
After finishing the flash erase following message shall apply
If so the device flash is successfully erased.
_______________________________________________________________________________________________
settings)

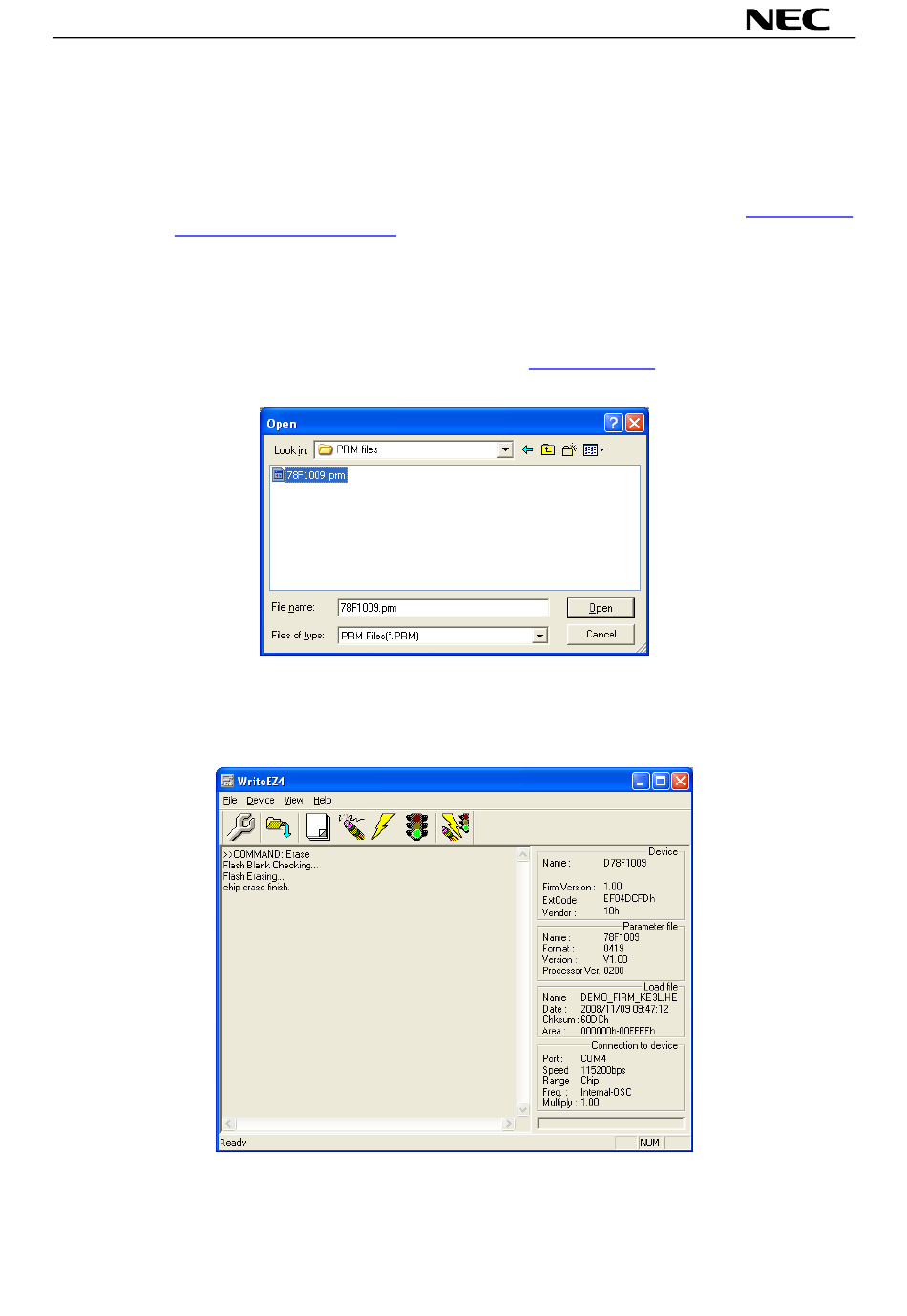

Figure 30: WriteEZ4 open .prm file
Figure 31: WriteEZ4 flash erase successful
