78K0R – Save It!

9. Flash Programmer WriteEZ4

WriteEZ4 is flash programming software to flash hex files to the related device. For installation information
refer to the chapter WriteEZ4 installation.

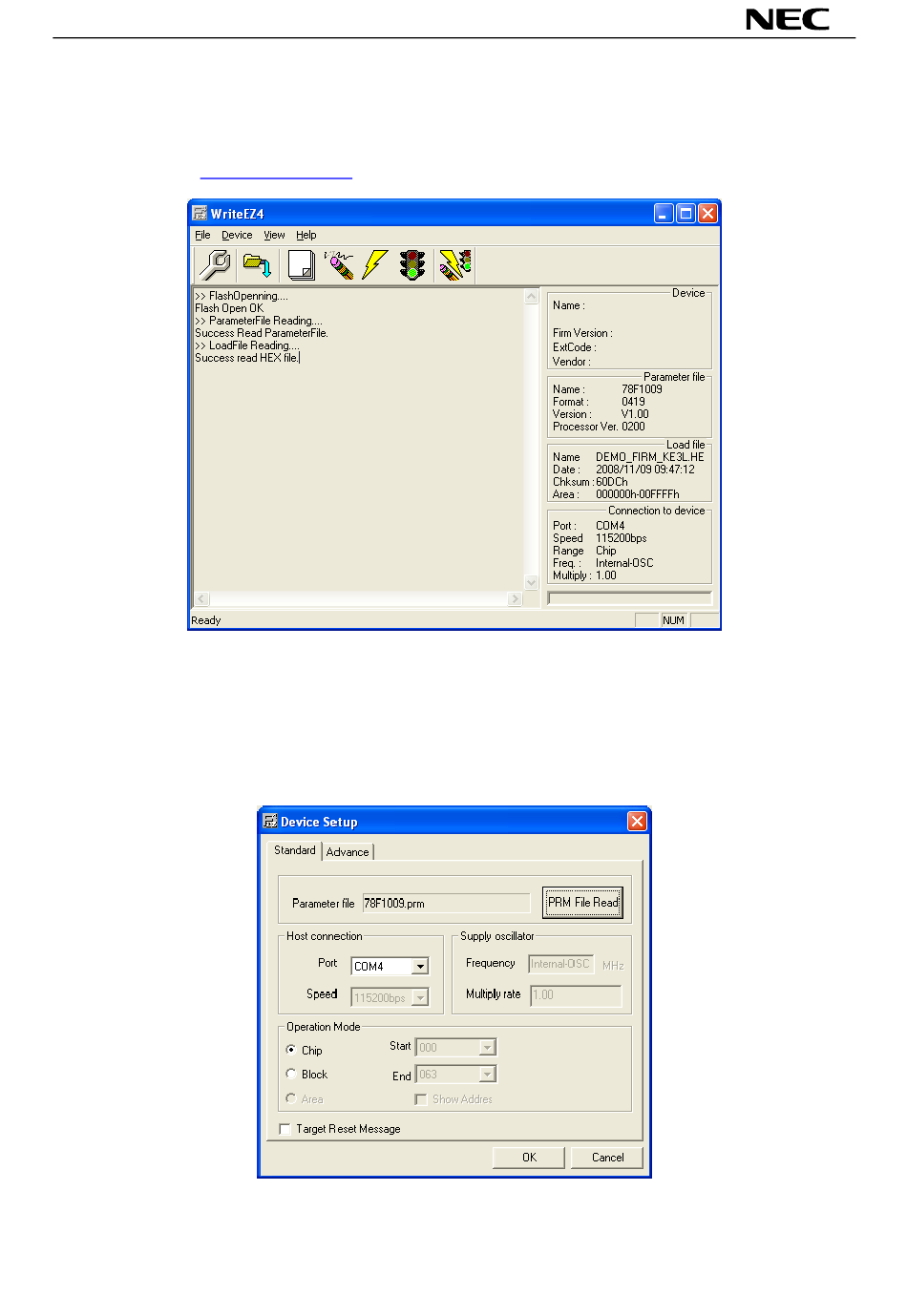

Figure 27: WriteEZ4 Startup

9.1 Device Setup

To provide all necessary information about the device to be programmed, only the corresponding flash
parameter file must be loaded. The parameter file (*.prm) for the µPD78F1009 is located on the CDROM, in
the same folder as the WriteEZ3 setup file. Please use the menu "Device -> Setup..." to open the following
dialogue and the button "PRM File Read" to select the parameter file.

Figure 28: WriteEZ4 Device Setup Dialogue
