78K0R – Save It!

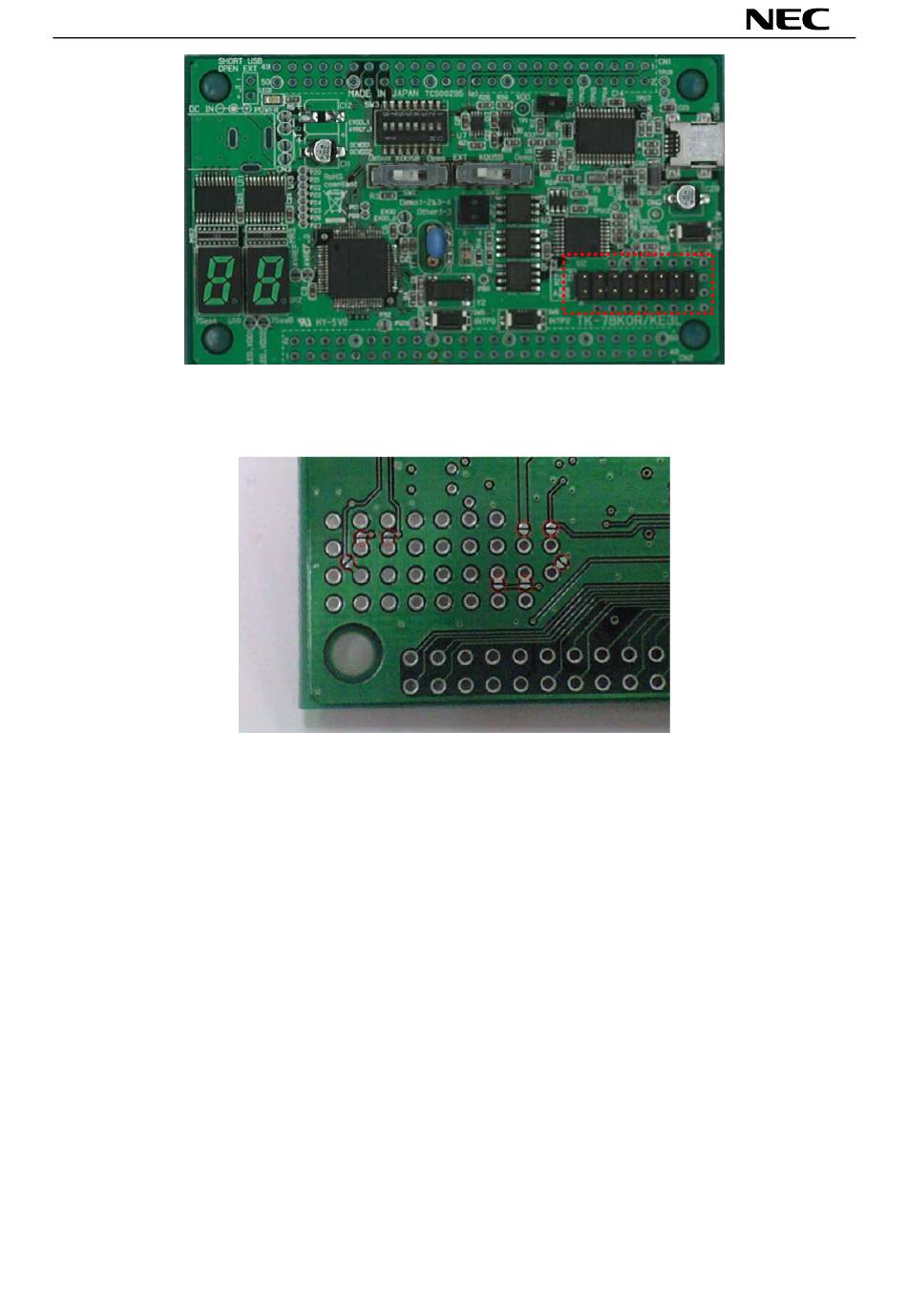

Figure 4: 78K0R – Save It! MiniCube2 connector
Furthermore some solder bridges have to be shorted to connect the connector to the target device.
Figure 5: 78K0R – Save It! Minicube2 connection solder bridges
