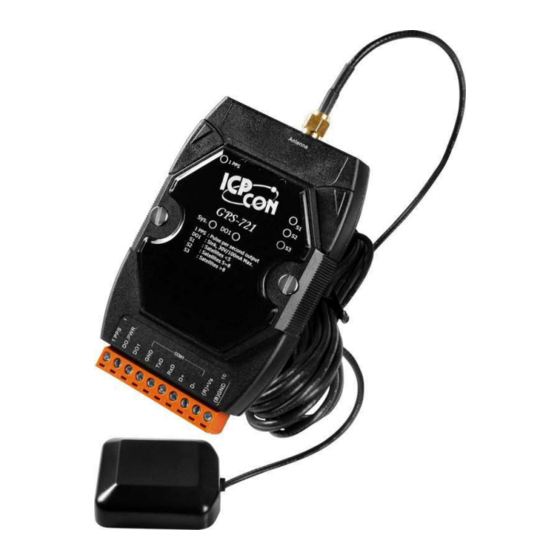

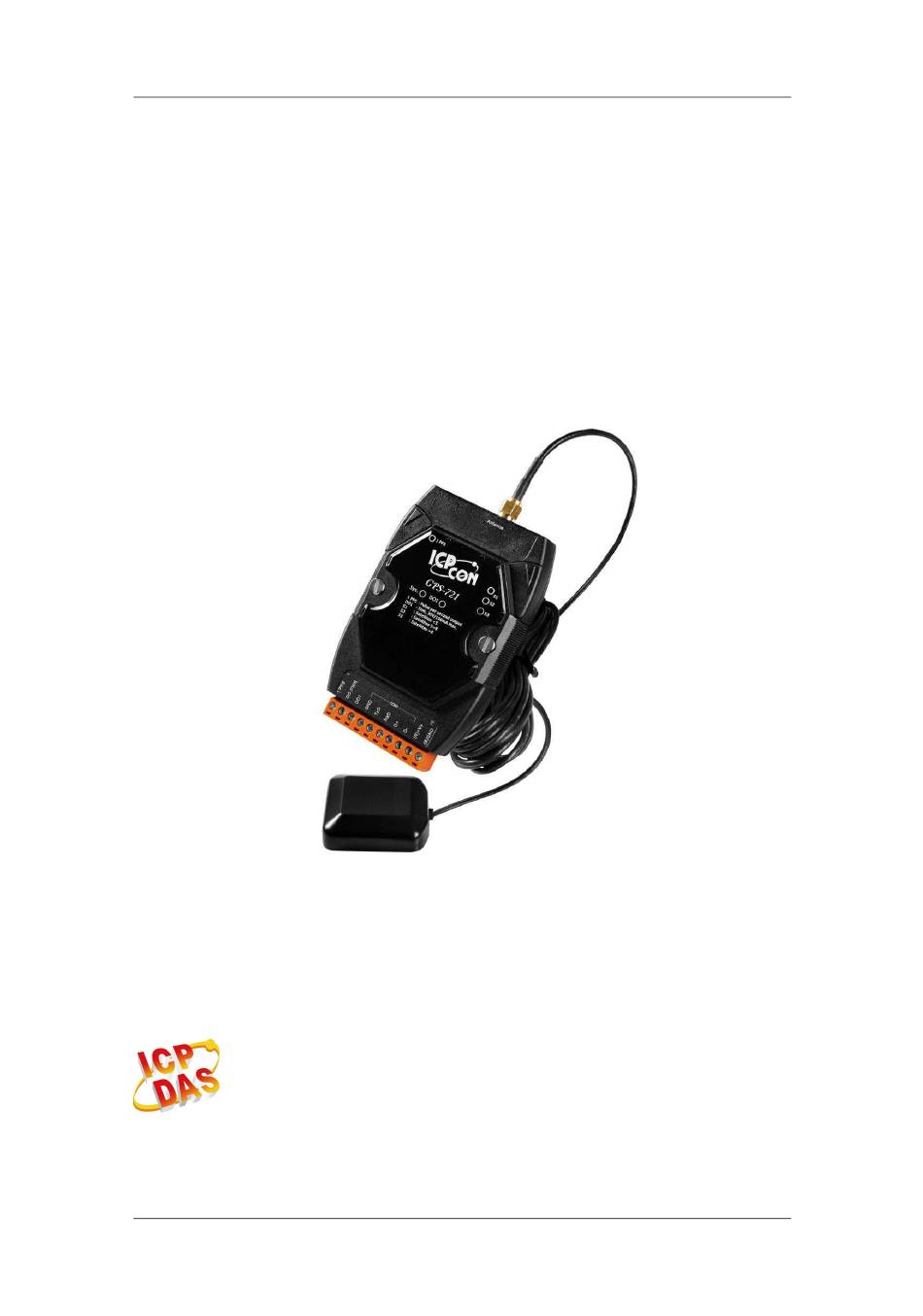

GPS-721 User Manual
GPS-721
User Manual v2.0
High-quality Industrial Data Acquisition and Control Products
1/98 GPS-721 User Manual V2.0, Oct. 2010
