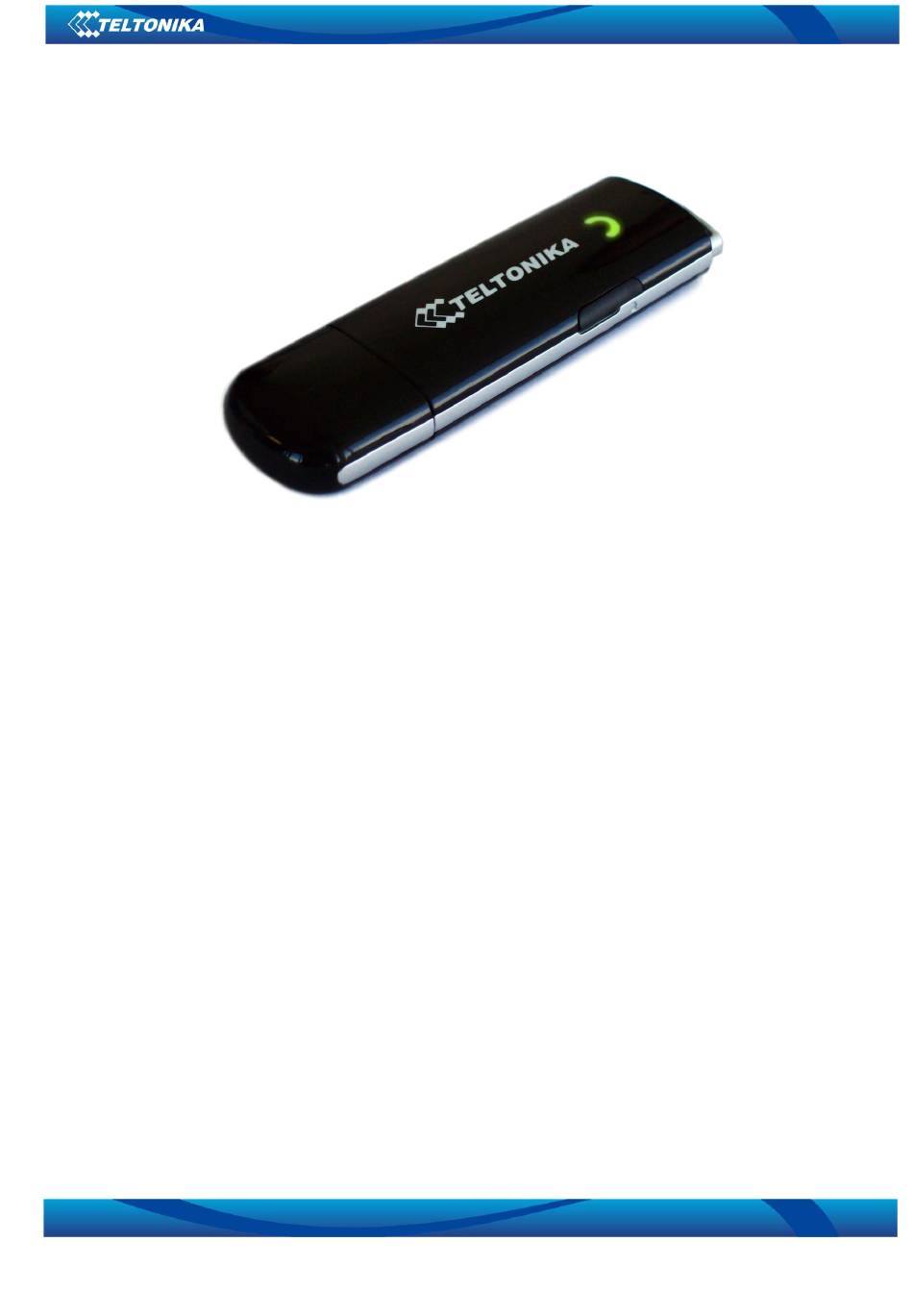

- Page 1 TELTONIKA 3.5G MODEM CONTROL TOOL User Manual...
-
Page 2: Table Of Contents
User Manual INDEX INSTALLING TELTONIKA MODEM CONTROL TOOL ..............3 UNINSTALLING TELTONIKA MODEM CONTROL TOOL..............7 3.5G CONNECT INTRODUCTION......................8 INTERNET SERVICE ..........................10 SMS SERVICE ............................11 CONTACTS...............................13 SETTINGS..............................15 FAQS .................................17... -
Page 3: Installing Teltonika Modem Control Tool
User Manual INSTALLING TELTONIKA MODEM CONTROL TOOL 1. Plug in the modem. 2. Go to My Computer, after several seconds you should see the drive named If drive haven‘t appeared unplug and plug modem. If this did not help restart your PC. - Page 4 User Manual 5. Then choose installation folder by pressing Browse or just press Next: 6. Select checkbox if needed or just press Next:...
- Page 5 User Manual 7. Press Install: 8. Wait till installation progress will finish:...
- Page 6 User Manual 9. Press Finish:...
-
Page 7: Uninstalling Teltonika Modem Control Tool
User Manual UNINSTALLING TELTONIKA MODEM CONTROL TOOL 1. Go to Start/Programs/Teltonika MCT and choose Teltonika MCT Unistall. 2. In the appeared window press Yes: 3. Press OK:... -
Page 8: 3.5G Connect Introduction
User Manual 3.5G CONNECT INTRODUCTION 1. To launch the Network Connect, double click the shortcut on the desktop. It should be noted that: If the PIN code enabled, enter the correct one, then click OK. The (U)SIM will be locked after 3 retries of incorrect PIN code input;... - Page 9 User Manual Connect /disconnect to the internet Access to the SMS service interface Access to the Phonebook interface Set parameters 3. Status information: Status Description New message New message(s) arrived. Message full Indicates the (U)SIM’s storage of SMS is full. No device Indicates that system cannot find the device.
-
Page 10: Internet Service
User Manual INTERNET SERVICE 1. Connecting with the default connection profile Click to set up the connection; 2. Connect to the internet with the user defined profile Click , select Connection Profile; Click New, fill in all the parameters, and then click OK; Click Import, Select one item from the list and click OK. -
Page 11: Sms Service
Delete : Delete the selected message. Note: • The new message will be saved in PC when 3.5G Connect running only, else in (U)SIM instead; • You can use “Shift” or “Ctrl” to selected several messages; 3. Outbox The message in the Outbox can be deleted or forwarded. - Page 12 User Manual 4. Draft The MSG sent unsuccessfully will be saved in the Draft; Click the selected message; Confirm the recipient and the content, and click Send or Save to Draft. 5. Recyle All deleted information will be saved in the Recyle. 6.
-
Page 13: Contacts
User Manual CONTACTS Click to enter Contacts interface. 1. New Click Enter the Name and Mobile, save it in the (U)SIM card or PC. 2. Searching a contact Click Enter the key characters of you want to find in the The result will be displayed in turn. - Page 14 User Manual 5. Export Right-click the selected contact; Click Contacts Export; You can save the contact file as *.csv file or *.vcf file; Confirm the name and the path the file saved, then click Save.
-
Page 15: Settings
User Manual SETTINGS Click to list the functions. PIN Management Enable PIN • Click Enable PIN; • Enter the correct PIN code and click OK. Note: The PIN code should be a numeric string of 4-8 digits. Disable PIN • Click Disable PIN; •... - Page 16 User Manual Profile Management For more details refer to INTERNET SERVICE section 2. Network Network Type • You can choose Auto or Only UMTS/HSPA or Only GPRS/EDGE. The device will register network according to the selected mode. • The default mode is Auto. Registration Mode •...
-
Page 17: Faqs
A: Open Settings->Network Selection, check the network setting. 5. Q: Why the software doesn’t run automatically when the device is plugged in? A: Click My computer->data card disk->StartModem.exe. Or run the 3.5G Conncet from Start of the OS if 3.5G Conncet was installed.
