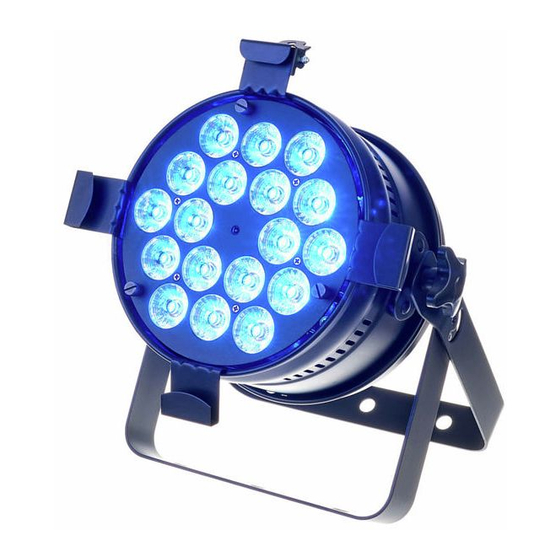

thomann STAIRVILLE 18x10W RGBWA UV User Manual

Led par
Hide thumbs
Table of Contents

Advertisement

Quick Links

Retro Flat Par
18x10W RGBWA UV,
18x12W RGBW
LED PAR
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAIRVILLE 18x10W RGBWA UV and is the answer not in the manual?

Questions and answers

Related Manuals for thomann STAIRVILLE 18x10W RGBWA UV

Summary of Contents for thomann STAIRVILLE 18x10W RGBWA UV

  • Page 1 Retro Flat Par 18x10W RGBWA UV, 18x12W RGBW LED PAR user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 08.02.2017, ID: 404358, 404364...

  • Page 3: Table Of Contents

    Table of contents Table of contents General notes............................... 6 1.1 Further information........................... 7 1.2 Notational conventions........................8 1.3 Symbols and signal words....................... 9 Safety instructions..........................12 Features............................... 17 Installation..............................18 Starting up..............................22 Connections and controls........................25 Operating..............................28 7.1 Operating mode ‘Manual’......................29 7.2 Operating mode ‘Auto Run Mode’.....................
  • Page 4 Table of contents 7.6 Settings menu........................... 36 7.7 Information menu..........................43 7.8 Operating mode ‘DMX’........................44 7.9 Menu overview..........................46 7.10 Functions in 6-channel DMX mode (Retro Flat Par 18x10W RGBWA UV, item no. 404358).............................. 50 7.11 Functions in 8-channel DMX mode (Retro Flat Par 18x10W RGBWA UV, item no. 404358)..............................
  • Page 5 Table of contents Cleaning............................... 66 Protecting the environment......................67 Retro Flat Par 18x10W RGBWA UV, 18x12W RGBW...

  • Page 6: General Notes

    General notes General notes This manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the device. If you sell the unit please make sure that the buyer also receives this manual.

  • Page 7: Further Information

    General notes 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.

  • Page 8: Notational Conventions

    General notes 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Displays Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’...

  • Page 9: Symbols And Signal Words

    General notes Instructions The individual steps of an instruction are numbered consecutively. The result of a step is indented and highlighted by an arrow. Example: Switch on the device. Press [Auto]. ð Automatic operation is started. Switch off the device. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual.
  • Page 10 General notes Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
  • Page 11 General notes Warning signs Type of danger Warning – danger zone. Retro Flat Par 18x10W RGBWA UV, 18x12W RGBW...

  • Page 12: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended to be used as an electronic illumination effect using LED technics. The device is designed for professional use and is not suitable for use in households. Use the device only as described in this user manual. Any other use or use under other operating con‐ ditions is considered to be improper and may result in personal injury or property damage.
  • Page 13 Safety instructions Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit.
  • Page 14 Safety instructions DANGER! Electric shock caused by short-circuit Always use proper ready-made insulated mains cabling (power cord) with a pro‐ tective contact plug. Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a regis‐ tered electrician.
  • Page 15 Safety instructions NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture.
  • Page 16 Safety instructions NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.

  • Page 17: Features

    Features Features The LED PAR is particularly suitable for professional lighting tasks, for example at events, on rock stages and in theatres and musicals. The device is characterised by compact design and particularly high light output. Special features of the device: –...

  • Page 18: Installation

    Installation Installation Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 19 Installation NOTICE! Risk of overheating Always ensure sufficient ventilation. The ambient temperature must always be below 40 °C (104 °F). NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand.
  • Page 20 Installation NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. Please note that this device must not be connected to a dimmer. Mounting options You can install the unit in hanging or standing position.
  • Page 21 Installation Always work from a stable platform whenever installing, moving or servicing the unit. In doing so, the area underneath the unit must be cordoned off. Additionally secure the device by a safety-rope against falling. Retro Flat Par 18x10W RGBWA UV, 18x12W RGBW...

  • Page 22: Starting Up

    Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. LED PAR...
  • Page 23 Starting up Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device. Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain.
  • Page 24 Starting up Connections in master/slave When you configure a group of devices in master/slave mode, the first unit will control the mode other units for an automatic, sound-activated, synchronized show. This function is ideal when you want to start a show immediately. Connect the DMX output of the master device to the DMX input of the first slave device.

  • Page 25: Connections And Controls

    Connections and controls Connections and controls Retro Flat Par 18x10W RGBWA UV, 18x12W RGBW...
  • Page 26 Connections and controls 1 Display 2 [Setup] Selects an option of the respective operating mode. 3 [Up] Increases the displayed value by one. 4 [DMX Out] DMX output 5 Fuse holder. Should the fuse have blown, disconnect the unit from the power supply and replace the fuse with a new fuse of the same type.
  • Page 27 Connections and controls 8 [Power In] Lockable powerCON input socket (NAC3FA) for mains connection. 9 [DMX In] DMX input. 10 [Down] Decreases the displayed value by one. 11 Locking screws for the mounting brackets. 12 [Mode] Activates the main menu, saves changes. 13 Infrared sensor for the signals of an IR remote control.

  • Page 28: Operating

    Operating Operating Connect the device to the power supply to start operation. After a few seconds, the display indicates that a reset is in progress. The device is then ready for use. Press [Mode] to activate the main menu and select an operating mode. Use [Setup] to select further options.

  • Page 29: Operating Mode 'Manual

    Operating 7.1 Operating mode ‘Manual’ This operating mode can only be activated when the unit is operating in stand alone mode or as master in a master / slave combination. This setting is only relevant if the device is not con‐ trolled via DMX.
  • Page 30 Operating Settings for program 01 When you have selected programme 01 and confirmed with ‘Setup’ , you can use [Up] and [Down] to select a static colour setting for all LEDs, see the following chart: Colour Display Retro Flat Par 18x10W RGBWA UV (item Retro Flat Par 18x12W RGBW (item no.
  • Page 31 Operating Colour Display Retro Flat Par 18x10W RGBWA UV (item Retro Flat Par 18x12W RGBW (item no. no. 404358) 404364) Yellow ‘Yellow’ ‘Yellow’ Purple ‘Purple’ ‘Purple’ Pink ‘Pink’ ‘Pink’ Cyan ‘Cyan’ ‘Cyan’ Light red ‘Light Red’ ‘Light Red’ Light green ‘Light Green’...

  • Page 32: Operating Mode 'Auto Run Mode

    Operating Settings for programmes When you have selected one of programmes 02 … 14 you can adjust the following settings: 02 … 14 After selecting the programme, press again [Setup] and adjust the programme speed with [Up] and [Down] in a range from ‘001’ … ‘100’ (slow … fast). Press again [Setup] and adjust the frequency of the strobe effect with [Up] and [Down] in a range from ‘000’...

  • Page 33: Operating Mode 'Sound Mode

    Operating 7.3 Operating mode ‘Sound Mode’ This setting is only relevant if the device is working as Slave in a Master / Slave configuration and is not controlled via DMX. In this operating mode, the device responds to acoustic pulses which are recorded by the integrated microphone.

  • Page 34: Operating Mode 'Static Colour

    Operating Press [Mode], use [Up] and [Down] to select the menu item ‘SLAVE’ and confirm with [Setup]. ð The device follows the ‘Master's’ actions. 7.5 Operating mode ‘Static Colour’ This setting is only relevant if the device is working in Stand Alone mode and is not controlled via DMX.
  • Page 35 Operating Press [Mode], use [Up] and [Down] to select the menu item ‘DIMMER’ and confirm with [Setup]. Use [Up] and [Down] to set the intensity for each basic colour in a range from ‘000’ … ‘255’ (bright … dark) and confirm with [Setup]. Retro Flat Par 18x10W RGBWA UV (item no.

  • Page 36: Settings Menu

    Operating 7.6 Settings menu Dimmer curve Press [Mode], use [Up] and [Down] to select the menu item ‘SETTINGS’ and confirm with [Setup]. Use [Up] and [Down] to select the menu item ‘Curves Select’ and confirm with [Setup]. With [Up] and [Down] you can select one of the following dimmer curves. The dimmer curve determines how the brightness increases or decreases depending on the set DMX value.
  • Page 37 Operating The below figure schematically shows the adjustable dimmer curves. Depending on the selected DMX value (1) the device lights with a brightness (2) between 0 % and 100 %. Confirm the selection with ‘Setup’ . Press [Mode]. ð The selection is applied. Retro Flat Par 18x10W RGBWA UV, 18x12W RGBW...
  • Page 38 Operating Dimmer speed Press [Mode], use [Up] and [Down] to select the menu item ‘SETTINGS’ and confirm with [Setup]. Use [Up] and [Down] to select the menu item ‘Dimmer Speed’ and confirm with [Setup]. With [Up] and [Down] you can choose between the following options: ‘D-Speed Fast’...
  • Page 39 Operating Display illumination Press [Mode], use [Up] and [Down] to select the menu item ‘SETTINGS’ and confirm with [Setup]. Use [Up] and [Down] to select the menu item ‘LCD back light’ and confirm with [Setup]. With [Up] and [Down] you can set the time after which the display will be darkened auto‐ matically.
  • Page 40 Operating Reset Press [Mode], use [Up] and [Down] to select the menu item ‘SETTINGS’ and confirm with [Setup]. Use [Up] and [Down] to select the menu item ‘Factory Reset’ and confirm with [Setup]. With [Up] and [Down] you can choose between ‘Yes’ (perform reset) and ‘No’ (no reset) Select ‘Yes’...
  • Page 41 Operating Behaviour when DMX transmis‐ sion is interrupted Press [Mode], use [Up] and [Down] to select the menu item ‘SETTINGS’ and confirm with [Setup]. Use [Up] and [Down] to select the menu item ‘DMX Fail’ and confirm with [Setup]. With [Up] and [Down] you can choose how the device behaves in case of a disturbed DMX transmission: ‘Hold’...
  • Page 42 Operating DMX synchronisation Press [Mode], use [Up] and [Down] to select the menu item ‘SETTINGS’ and confirm with [Setup]. Use [Up] and [Down] to select the menu item ‘DMX Synchronous’ and confirm with [Setup]. With [Up] and [Down] you can choose how connected devices behaves in case of a dis‐ turbed DMX transmission: ‘ON’...

  • Page 43: Information Menu

    Operating 7.7 Information menu Device temperature Press [Mode], use [Up] and [Down] to select the menu item ‘INFO’ and confirm with [Setup]. Use [Up] and [Down] to select the menu item ‘Temperature’ and confirm with [Setup]. ð The display shows whether the unit's temperature is within the normal range (dis‐ play is ‘Normal’...

  • Page 44: Operating Mode 'Dmx

    Operating Software version Press [Mode], use [Up] and [Down] to select the menu item ‘INFO’ and confirm with [Setup]. Use [Up] and [Down] to select the menu item ‘Software-Version’ and confirm with [Setup]. ð The display shows the current software version used by the device. Press [Mode].
  • Page 45 Operating Use [Up] and [Down] to select the desired DMX mode: Retro Flat Par 18x10W RGBWA UV (item no. 404358): 6-channel, 8-channel or 10- channel Retro Flat Par 18x12W RGBW (item no. 404364): 4-channel, 6-channel or 8-channel Confirm with [Setup]. Press [Mode].

  • Page 46: Menu Overview

    Operating 7.9 Menu overview Retro Flat Par 18x10W RGBWA UV (item no. 404358), part 1 LED PAR...
  • Page 47 Operating Retro Flat Par 18x10W RGBWA UV (item no. 404358), part 2 Retro Flat Par 18x10W RGBWA UV, 18x12W RGBW...
  • Page 48 Operating Retro Flat Par 18x12W RGBW (item no. 404364), part 1 LED PAR...
  • Page 49 Operating Retro Flat Par 18x12W RGBW (item no. 404364), part 2 Retro Flat Par 18x10W RGBWA UV, 18x12W RGBW...

  • Page 50: Functions In 6-Channel Dmx Mode

    Operating 7.10 Functions in 6-channel DMX mode (Retro Flat Par 18x10W RGBWA UV, item no. 404358) Channel Value Function 0…255 Intensity red (0 % to 100 %) 0…255 Intensity green (0 % to 100 %) 0…255 Intensity blue (0 % to 100 %) 0…255 Intensity white (0 % to 100 %) 0…255...

  • Page 51: Functions In 8-Channel Dmx Mode

    Operating 7.11 Functions in 8-channel DMX mode (Retro Flat Par 18x10W RGBWA UV, item no. 404358) Channel Value Function 0…255 Dimmer (0 % to 100 %) 0…255 Intensity red (0 % to 100 %) 0…255 Intensity green (0 % to 100 %) 0…255 Intensity blue (0 % to 100 %) 0…255...

  • Page 52: Functions In 10-Channel Dmx Mode (Retro Flat Par 18X10W Rgbwa Uv, Item No. 404358)

    Operating 7.12 Functions in 10-channel DMX mode (Retro Flat Par 18x10W RGBWA UV, item no. 404358) Channel Value Function 0…255 Dimmer (0 % to 100 %) 0…255 Intensity red (0 % to 100 %) 0…255 Intensity green (0 % to 100 %) 0…255 Intensity blue (0 % to 100 %) 0…255...
  • Page 53 Operating Channel Value Function 17…33 Programme 02 34…50 Programme 03 51…67 Programme 04 68…84 Programme 05 85…101 Programme 06 102…118 Programme 07 119…135 Programme 08 136…152 Programme 09 153…169 Programme 10 170…186 Programme 11 187…203 Programme 12 204…220 Programme 13 221…237 Programme 14 Retro Flat Par 18x10W RGBWA UV, 18x12W RGBW...
  • Page 54 Operating Channel Value Function 238…255 Sound control Colour selection, If channel 8 = 1…16 0…14 R (0), G (0), B (0), W (0), A(0), I(0) 15…29 R (255), G (0), B (0), W (0), A(0), I(0) 30…44 R (0), G (255), B (0), W (0), A(0), I(0) 45…59 R (0), G (0), B (255), W (0), A(0), I(0) 60…74...
  • Page 55 Operating Channel Value Function 165…179 R (0), G (255), B (255), W (0), A(0), I(0) 180…194 R (255), G (0), B (0), W (210), A(0), I(0) 195…209 R (0), G (255), B (0), W (210), A(0), I(0) 210…224 R (0), G (0), B (255), W (210), A(0), I(0) 225…239 R (255), G (200), B (40), W (90), A(0), I(0) 240…255...

  • Page 56: Functions In 4-Channel Dmx Mode

    Operating 7.13 Functions in 4-channel DMX mode (Retro Flat Par 18x12W RGBW, item no. 404364) Channel Value Function 0…255 Intensity red (0 % to 100 %) 0…255 Intensity green (0 % to 100 %) 0…255 Intensity blue (0 % to 100 %) 0…255 Intensity white (0 % to 100 %) 7.14...

  • Page 57: Functions In 8-Channel Dmx Mode

    Operating Channel Value Function 0…255 Intensity blue (0 % to 100 %) 0…255 Intensity white (0 % to 100 %) 0…255 Stroboscope effect (0 % to 100 %) 7.15 Functions in 8-channel DMX mode (Retro Flat Par 18x12W RGBW, item no. 404364) Channel Value Function...
  • Page 58 Operating Channel Value Function Programme Blackout 1…16 Programme 01 colour selection with channel 7 17…33 Programme 02 34…50 Programme 03 51…67 Programme 04 68…84 Programme 05 85…101 Programme 06 102…118 Programme 07 119…135 Programme 08 136…152 Programme 09 153…169 Programme 10 170…186 Programme 11 LED PAR...
  • Page 59 Operating Channel Value Function 187…203 Programme 12 204…220 Programme 13 221…237 Programme 14 238…255 Sound control Colour selection, If channel 6 = 1…16 0…15 R (0), G (0), B (0), W (0) 16…31 R (255), G (0), B (0), W (0) 32…47 R (0), G (255), B (0), W (0) 48…63...
  • Page 60 Operating Channel Value Function 128…143 R (255), G (0), B (255), W (0) 144…159 R (255), G (0), B (140), W (0) 160…175 R (0), G (255), B (255), W (0) 176…191 R (255), G (0), B (0), W (210) 192…207 R (0), G (255), B (0), W (210) 208…223...

  • Page 61: Technical Specifications

    Technical specifications Technical specifications Retro Flat Par 18x10W RGBWA UV (item no. 404358) LEDs 18 × 12 W RGBWA UV Number of DMX channels 6, 8, 10 Power consumption 160 W Operating supply voltage AC 100–240 V 50/60 Hz Fuse 5 mm ×...
  • Page 62 Technical specifications Retro Flat Par 18x12W RGBW (item no. 404364) LEDs 18 × 12 W RGBW Number of DMX channels 4, 6, 8 Power consumption 220 W Operating supply voltage AC 100–240 V 50/60 Hz Fuse 5 mm × 20 mm, 1.5 A, 250 V, slow-blow Dimensions (W ×...

  • Page 63: Plug And Connection Assignments

    Plug and connection assignments Plug and connection assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’...

  • Page 64: Troubleshooting

    Troubleshooting Troubleshooting NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. In the following we list a few common problems that may occur during operation.
  • Page 65 The unit is overheated. Switch it off and let it cool down. ‘Temp Error’ . If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. Retro Flat Par 18x10W RGBWA UV, 18x12W RGBW...

  • Page 66: Cleaning

    Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device.

  • Page 67: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 68 Notes LED PAR...
  • Page 69 Notes Retro Flat Par 18x10W RGBWA UV, 18x12W RGBW...
  • Page 70 Notes LED PAR...
