- Page 1 201-USB Play Mixer...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 06.03.2024, ID: 441273 (V2)
-
Page 3: Table Of Contents
Table of contents Table of contents General information......................5 1.1 Symbols and signal words.................... 5 Safety instructions......................... 6 Features............................8 Installation..........................9 Connections and controls....................10 Technical specifications..................... 13 Plug and connection assignment................. 14 Cleaning............................ 16 Protecting the environment................... 17 201-USB Play Mixer... - Page 4 201-USB Play Mixer...
-
Page 5: General Information
Our products and documentation are subject to a process of continuous develop‐ ment. They are therefore subject to change. Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document. -
Page 6: Safety Instructions
Safety instructions 2 Safety instructions Intended use This device is intended to be used for amplification, mixing and playback of signals from musical instruments and microphones. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. - Page 7 Safety instructions NOTICE! Damage to the device due to high voltages! The device can be damaged if it is operated with the incorrect voltage or if high voltage peaks occur. In the worst case, excess voltages can also cause a risk of injury and fires. Make sure that the voltage specification on the device matches the local power grid before plugging in the device.
-
Page 8: Features
Features 3 Features 2-channel DJ mixer with two USB / SD / Bluetooth players 1 × microphone input with talk over (1/4" phone jack) 1 × headphones output (stereo, as 1/4" phone jack) 2 × master outputs (XLR and RCA sockets) for left and right channel 1 ×... -
Page 9: Installation
Installation 4 Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. -
Page 10: Connections And Controls

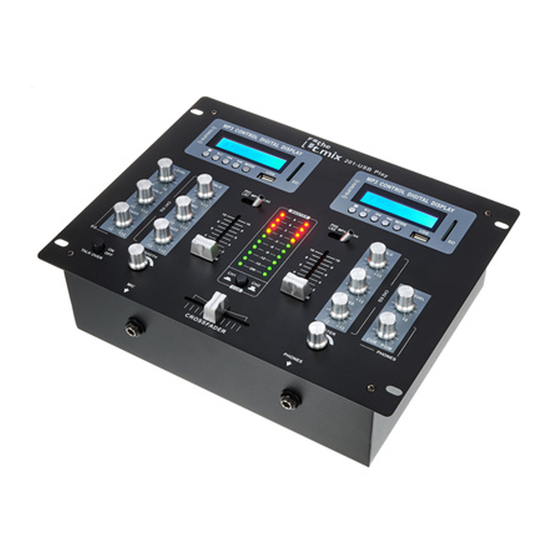

Connections and controls 5 Connections and controls Front ö ö & TALK OVER 1 MP3 player with left and right channel display 2 [PH1/LN1/MP3-A]/[PH2/LN3/MP3-B] | Selector switch for selecting the input source for left and right channels. 3 [CH1 EQ/CH2 EQ] | Rotary control for direct tone control of the left and right channels (bass, mids, treble). 4 [CUE LEVEL] | Rotary control for adjusting the headphone volume. - Page 11 Connections and controls Display 5 6 7 8 9 18 Display 19 [SD] | SD card slot. Before you eject the SD card, activate pause or select another playback source (USB or Bluetooth). | Stops playback. | Starts or pauses playback. | Selects the previous track for playback.
- Page 12 Connections and controls Back ; < > POWER 230V~50Hz FUSE T0.5AL250V 26 [Power] | Main switch. Turns the device on and off. 27 Rubber panel plug for power supply with fuse holder. Should the fuse have blown, disconnect the device from the power supply and replace the fuse with a new fuse of the same type.
-
Page 13: Technical Specifications
Technical specifications 6 Technical specifications Input connections Power supply C14 rubber panel plug Microphone Type 6.3-mm jack socket input Level 3 mV Impedance 2.2 kΩ Phono/line Type 8 × Cinch sockets input Level 3.2 mV, phono 150 mV, line Impedance 47 kΩ Output connections Master output Type... -
Page 14: Plug And Connection Assignment
Plug and connection assignment 7 Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equipment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... - Page 15 Plug and connection assignment RCA connection Drawing and table indicate the pin assignment of an RCA plug. Signal Ground, shielding 201-USB Play Mixer...
-
Page 16: Cleaning
Cleaning 8 Cleaning Fan grids The fan grids of the device must be cleaned of any contamination, such as dust, etc. on a regular basis. Before cleaning, switch off the device and disconnect mains- operated devices from the mains. Only use pH-neutral, solvent-free and non-abrasive cleaning agents. -
Page 17: Protecting The Environment
Repairing a device or passing it on to another user is an ecologically valuable alternative to disposal. You can return your old device to Thomann GmbH at no charge. Check the current conditions on www.thomann.de. If your old device contains personal data, delete those data before disposing of it. - Page 18 Notes 201-USB Play Mixer...
