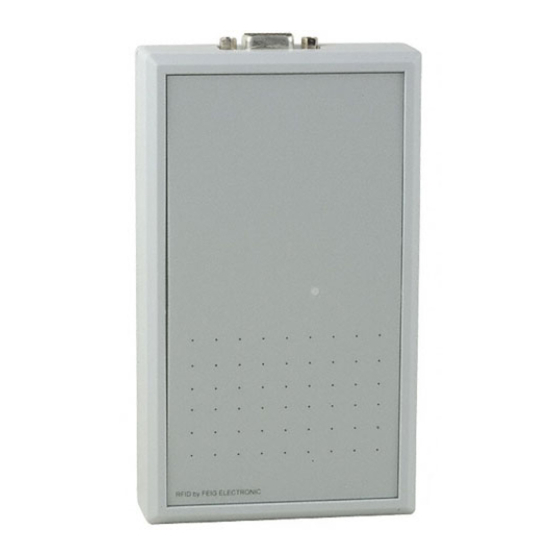

Related Manuals for Feig Electronic OBID i-scan ID ISC.PR101
Summary of Contents for Feig Electronic OBID i-scan ID ISC.PR101
- Page 1 ® APPLICATION-NOTE OBID i-scan ID ISC.PR/MR101 Update USB-Controller preliminary public (B) 2005-04-29 N50402-0e-ID-B.doc...
- Page 2 ELECTRONIC GmbH does not give any guarantee promise for perfect function in cross environ- ments. FEIG ELECTRONIC GmbH assumes no responsibility for the use of any information contained in this document and makes no representation that they free of patent infringement. FEIG ELECTRONIC GmbH does not convey any license under its patent rights nor the rights of others.
- Page 3 1. Safety Instructions / Warning - Read before start-up ! Programming of the USB Controller Firmware 1.1. Installation USB_UpdateTool ..................5 1.2. Delete the old USB-Controller Firmware..............6 1.3. Install Device Driver ......................7 1.4. Start Update-Software „CYFX2Mfg“ ................8 FEIG ELECTRONIC GmbH Page 3 of 8 N50402-0e-ID-B.doc...
- Page 4 Use of the device and its installation must be in accordance with national legal requirements and local electrical codes . • When working on devices the valid safety regulations must be observed. FEIG ELECTRONIC GmbH Page 4 of 8 N50402-0e-ID-B.doc...
- Page 5 “OBIDFirmwareUpdateTool” via the USB-Interface. This is described in the Applica- tion Note „N30300-0e-ID-B.pdf“. 1.1. Installation USB_UpdateTool Unzip the „USB_UpdateTool_PR_MR101.zip“ with the option „use path specification“ After that you will get the following tree: FEIG ELECTRONIC GmbH Page 5 of 8 N50402-0e-ID-B.doc...
- Page 6 The protocol “07 E0 E0 00 00 7F BD” must be selected and then press the “Start”-button. If an OK appears in the ProtocolWindow the EEPROM has been deleted successfully : • Please unplug the USB-cable for about 10 seconds. FEIG ELECTRONIC GmbH Page 6 of 8 N50402-0e-ID-B.doc...
- Page 7 The driver you need now are stored in the folder „Driver“: • After a successful installation the USB-Controller “Cypress Manufacturing Driver FX2 (no EEPROM) appears in the Device Manager of Windows • Please unplug the USB-Cable. FEIG ELECTRONIC GmbH Page 7 of 8 N50402-0e-ID-B.doc...
- Page 8 To get the hole functionality (Scan Mode) you have to check if there is at least installed the reader firmware version 1.01. If it is not please install the reader firmware version 1.01 by using the “OBIDFirmwareUpdateTool“. FEIG ELECTRONIC GmbH Page 8 of 8 N50402-0e-ID-B.doc...
