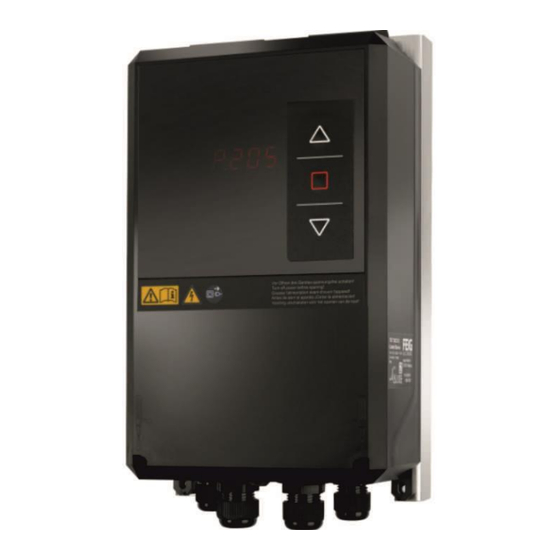

Feig Electronic TST FUZ2 Assembly Instructions Manual

Feig Electronic TST FUZ2 Assembly Instructions Manual

Intelligent door management
Hide thumbs
Table of Contents

Advertisement

Quick Links

Assembly instructions
Installation, commissioning, utilization and maintenance
DE
ACHTUNG! WICHTIGE SICHERHEITSANWEISUNGEN!
Den Hinweisen auf Seite 2 dieser Montageanleitung ist Folge zu leisten.
EN
ATTENTION! IMPORTANT SAFETY INFORMATION!
Follow the instructions on page 2 of this manual.
FR
ATTENTION! IMPORTANTES INDICATIONS DE SÉCURITÉ!
Les instructions de la page 2 de cette notice de montage doivent être
observées strictement,
NL
LET OP! BELANGRIJKE VEILIGHEIDSINSTRUCTIES!
Volg de instructies op pagina 2 van deze montagehandleiding op.
IT
ATTENZIONE! INDICAZIONI SULLA SICUREZZA IMPORTANTI!
Prestare attenzione alle note alla pagina 2 delle presenti istruzioni di
montaggio.
ES
ATENCIÓN INDICACIONES IMPORTANTES DE SEGURIDAD!
Deben seguirse las indicaciones detalladas en página 2 de estas
instrucciones de montaje.
DA
PAS PÅ! VIGTIGE SIKKERHEDSANVISNINGER
Oplysningerne på side 2 i denne monteringsvejledning skal følges.
TST FUZ2
Variants
-A / -B / -C /
-CX / -G / -L
ATTENTION!
IMPORTANT SAFETY
INFORMATION
The specifications of
these instructions
require compliance to
ensure personal safety.
Store these instructions
safely.
Original operating instructions
