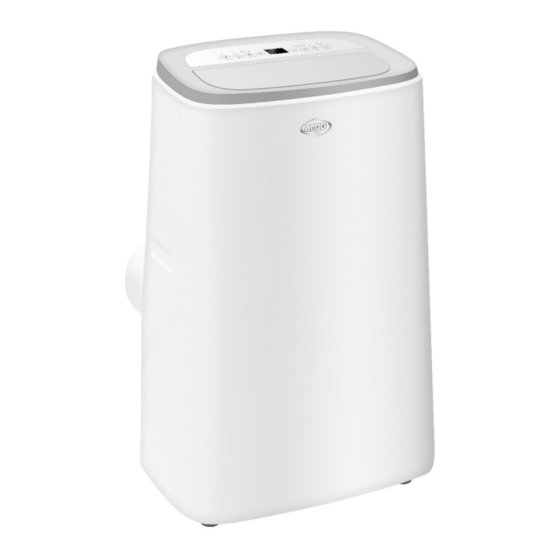

PORTABLE AIR CONDITIONER (LOCAL)
ERIS & ERIS PLUS
SERVICE MANUAL
Read the instructions carefully before operating the appliance or carrying out maintenance work.
Observe all the safety instructions; failure to observe the instructions may lead to accidents and/or
damage. Store these instructions in a safe place for future reference.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argo ERIS
Summary of Contents for Argo ERIS
- Page 1 PORTABLE AIR CONDITIONER (LOCAL) ERIS & ERIS PLUS SERVICE MANUAL Read the instructions carefully before operating the appliance or carrying out maintenance work. Observe all the safety instructions; failure to observe the instructions may lead to accidents and/or damage. Store these instructions in a safe place for future reference.
- Page 2 Ⅰ. Remove filter frame, filter screen 1. hold the two cards above the frame by hand and pull them out. II. Removing back panels 1. first remove the two screws of the left and right handle position with a screwdriver; the upper three screws, the net frame left and right two screws, the middle drain cover side one screw, the heat drain tube side one screw, the lower rear outlet left and right sides altogether six screws...
- Page 3 2. slightly lift the back plate handle position with your hand and pull out.
- Page 4 Remove front panel, top cover assembly 1. first remove the bottom three screws with a screwdriver, then remove the two screws behind the top cover assembly, and pull out the connecting terminals of the top cover connection 2. horizontally remove top cover assembly and front panel 3.
- Page 5 IV. Split top cover, control panel 1. open the outlet swing blade, hold the end of one side of the swing blade, pull out its access to the top cover fixed hole, and then pull out the other end of the swing blade top cover limit. 2.
- Page 6 IV. Split top cover, control panel 1. open the outlet swing blade, hold the end of one side of the swing blade, pull out its access to the top cover fixed hole, and then pull out the other end of the swing blade top cover limit. 2.
- Page 7 VI. Split air supply duct components 1. remove the two screws connected to the top of the evaporator and the two screws connected to the middle partition, and move out horizontally. 2. remove the WIFI components fixed in the duct volute with two screws and five volute screws.
- Page 8 VII. Lower framework component splitting 1. remove 1 screw that connects the partition to the condenser in the front of the air conditioner 2. remove 1 screw left and right between the middle partition and the side of the evaporator, then remove 2 fixed screws connected between the middle partition and the exhaust duct assembly 3.
- Page 9 VIII. Dismantling of exhaust duct assemblies 1. remove the 2 fixing screws attached to the chassis at the bottom of the exhaust duct assembly.
- Page 10 4. loosen the nut fixed on the motor shaft, remove the nut, pull out the exhaust air wheel with both hands; remove the 4 screws fixed on the other side, remove the motor IX. Dismantling of the refrigeration system 1. first remove 2 screws connecting the end plate of the lower condenser to the base 2.
- Page 11 X. Removal of chassis assemblies 1. remove 2 screws for magnetic ring switch assembly 2. remove 1 screw of main bracket. 3. remove 4 screws linking the water puller assembly to the chassis 4. remove 4 universal wheels fixed with chassis, each with only 2 screws fixed with chassis, a total of 8 screws;...
- Page 13 0.22 = 0.00066 Tons CO equiv. Do not release R290 into the atmosphere. ERIS PLUS REGULATION (EU) No. 517/2014 – F-GAS The unit contains R290, a natural greenhouse gas with global warming potential (GWP) = 3 - Kg. 0.23 = 0.00069 Tons CO equiv.
