Controls

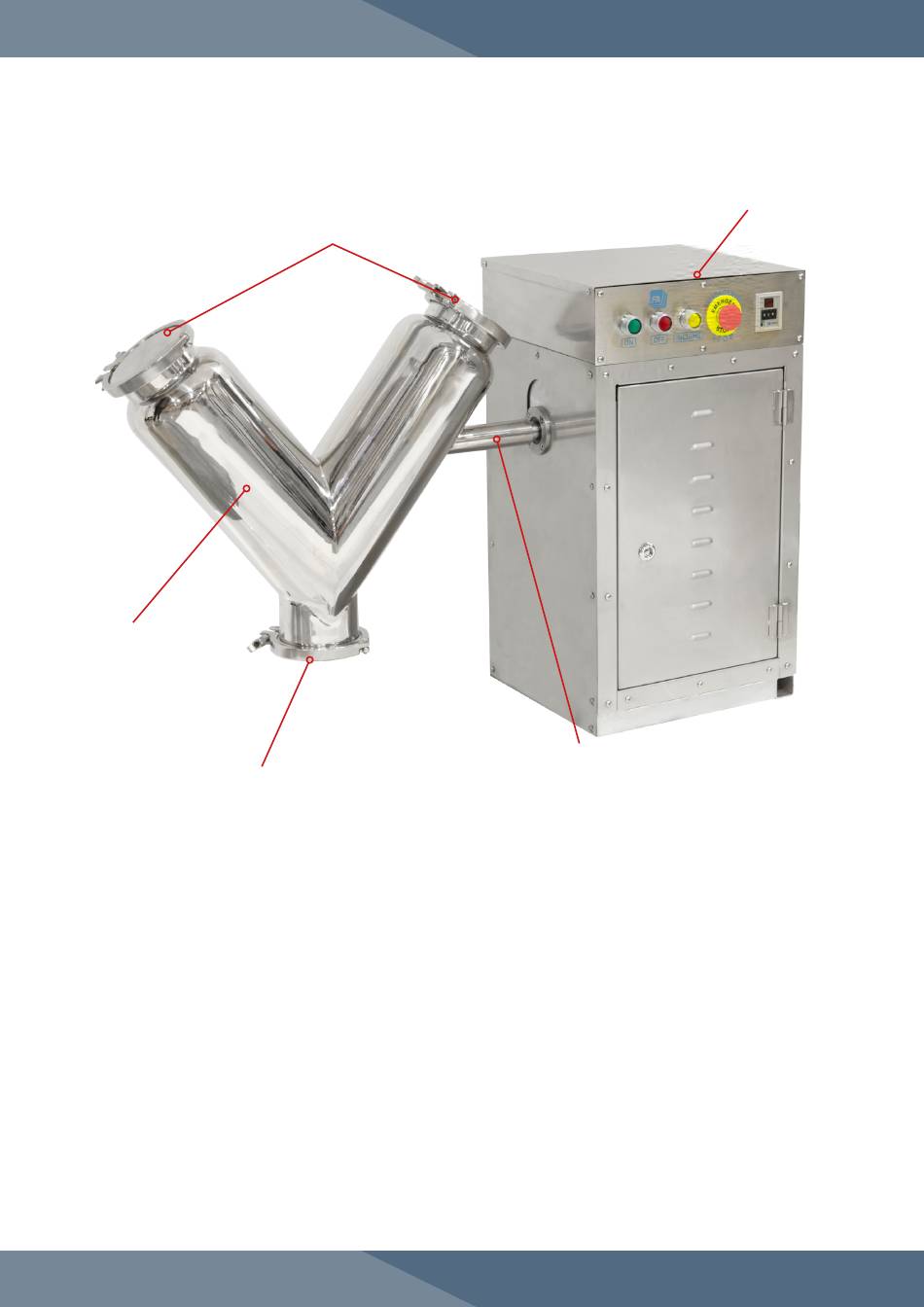

Basic Components
Hopper
Discharge Chute
A description of the principal components follows:
• The Feeder Points are where the dry materials to be mixed are poured.
• The Hopper contains the powder that is mixed.
• The Discharge Chute allows the mixed powder to be expelled from the Hopper.
• The Main Cam Drive Shaft connects the Hopper to the main base of the machine.
• The VM Base has a control console and also contains the Motor, V Belt, and Drive Belt
®
Pulleys.
14
Feeder Points
Main Cam Drive Shaft
VM Base
®
