Code Alarm PROFESSIONAL ca6554 Installation Manual page 38

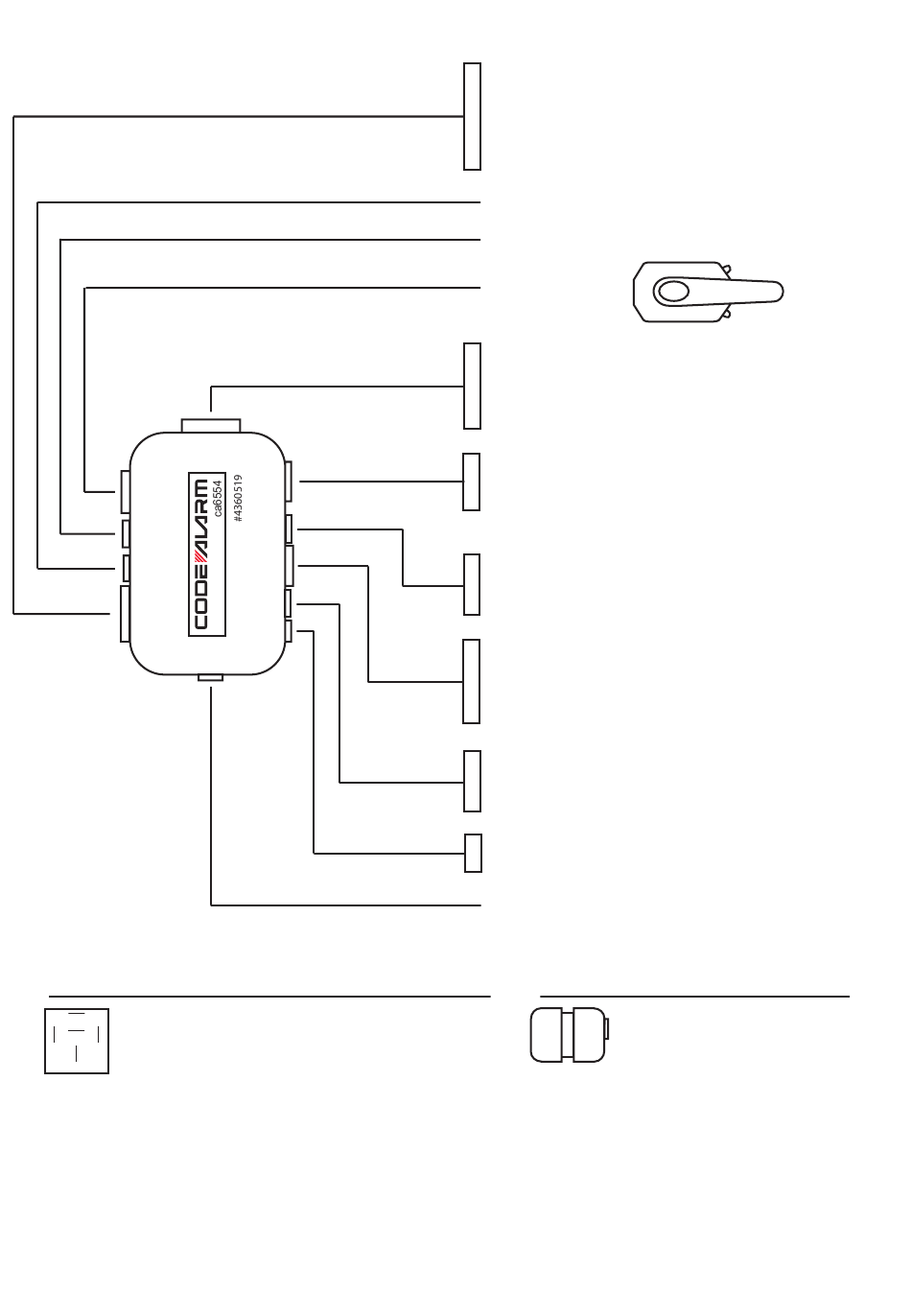

STARTER INTERUPT RELAY & HARNESS
ORANGE
87
RED
87a
BLACK
86 85
WHITE / BLACK
30
OPEN
38
#4120290
#4120291
#4120110
#4120145
#4120184
#1032714
#4120102
#1031423
#1024405
86 - ARMED OUTPUT ( - )
85 - IGNITION ( + )
87A - STARTER OUTPUT - MOTOR SIDE
30 - STARTER INPUT - KEY SIDE
87 - OPEN
BLUE/WHITE INSTANT TRIGGER INPUT ( - )
GREEN DOOR TRIGGER INPUT ( - )
PURPLE DOOR TRIGGER INPUT ( + )
WHITE/BLUE EXTERNAL START INPUT ( - )
GRAY HOOD INPUT ( - )
GRAY/RED PARKING BRAKE INPUT ( - )
BROWN/RED BRAKE INPUT ( + )
PURPLE/WHITE TACH INPUT
SHOCK SENSOR PORT
TELEMATIC PORT
ANTENNA
LED
VALET
PURPLE STARTER OUTPUT - MOTOR SIDE ( + )
RED BATTERY 12V ( + )
ORANGE ACCESSORY 1 ( + )
PINK/WHITE IGNITION 2 ( + )
RED/WHITE BATTERY 12V ( + )
PINK IGNITION 1 ( + )
WHITE/RED PARKING LIGHT INPUT
WHITE PARKING LIGHT OUTPUT
BLACK GROUND
BROWN SIREN OUTPUT ( + )
PINK/BLACK AUX 5 OUTPUT ( - )
ORANGE/BLACK AUX 4 OUTPUT ( - )
GRAY/BLACK AUX 3 OUTPUT ( - )
WHITE/BLACK AUX 2 OUTPUT ( - )
BROWN/BLACK HORN OUTPUT ( - )
BLUE/BLACK START STATUS / ACTIVE OUTPUT ( - )
VIOLET/BLACK AUX 1 OUTPUT ( - )
RED/WHITE TRUNK RELEASE OUTPUT ( - )
LT GREEN/BLACK FACTORY DISARM / PULSE BEFORE START ( - )
ORANGE GROUND WHEN ARMED ( - )
BLACK/YELLOW PULSE DURING CRANK ( - )
GREEN/WHITE PULSE AFTER SHUTDOWN ( - )
LT BLUE FACTORY ARM / PULSE AFTER START ( - )
LT GREEN/BLACK FACTORY DISARM / PULSE BEFORE START ( - )
BLUE UNLOCK ( - )
OPEN
GREEN LOCK ( - )
DBI PORT
SHOCK SENSOR & HARNESS
RED
BLACK
BLUE
GREEN
#4180053
#4700023
BATTERY 12V ( + )
GROUND WHEN ARMED ( - )
FULL TRIGGER ( - )
WARN AWAY TRIGGER ( - )
ca6554 Install revA
