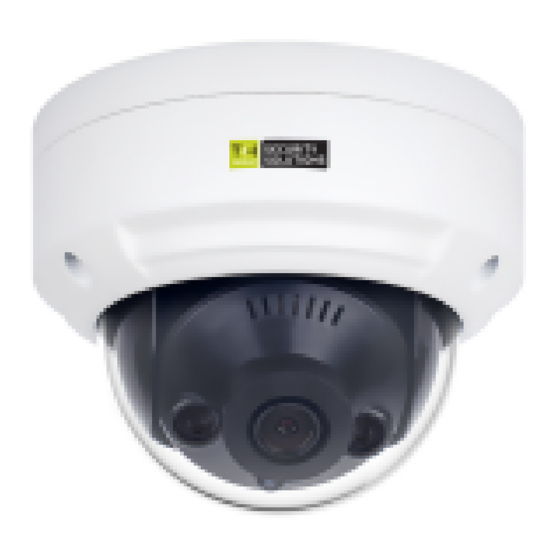

- Page 1 User manual Network dome TKID45F2S / TKID85F2S TKID45M1S / TKID85M1S tkhsecurity.fr V.201910.01...
- Page 2 User Manual - Network Dome - TKID45F2S - TKID85F2S - TKID45M1S - TKID85M1S Precautions Fully understand this document before using this device, and strictly observe rules in this document when using this device. If you install this device in public places, provide the tip "You have entered the area of electronic surveillance"...
- Page 3 User Manual - Network Dome - TKID45F2S - TKID85F2S - TKID45M1S - TKID85M1S Strictly conform to local electrical safety standards and use power adapters that are marked with the LPS standard when installing and using this device. Otherwise, this device may be damaged.
- Page 4 User Manual - Network Dome - TKID45F2S - TKID85F2S - TKID45M1S - TKID85M1S The lens window of the camera is designed to be applicable to an outdoor environment. The window is coated with durable coating material, but may require frequent cleaning. When you found lens image degradation or excessive accumulation of pollutants, you should clear up the window in a timely manner.
-
Page 5: Table Of Contents
User Manual - Network Dome - TKID45F2S - TKID85F2S - TKID45M1S - TKID85M1S 1.1 Login and Logout ......................6 1.2 Main Page layout......................7 1.3 Change the Password ..................... 8 1.4 Browse Video ......................... 9 1.4.1 Install Plugins....................10 1.5 Setting Local Network Parameters ................1 2.1 Sensor Setting Interface .................... -
Page 6: Login And Logout
User Manual - Network Dome - TKID45F2S - TKID85F2S - TKID45M1S - TKID85M1S 1.1 Login and Logout You must use Internet Explorer 8 or a later version to access the web management system; otherwise, some functions may be unavailable. Login system... -
Page 7: Main
User Manual - Network Dome - TKID45F2S - TKID85F2S - TKID45M1S - TKID85M1S logout To logout of system, click in the upper right corner of the main page, the login page is display after you log out of the system. -
Page 8: Change The Password
User Manual - Network Dome - TKID45F2S - TKID85F2S - TKID45M1S - TKID85M1S Element Description Change password You can click to change the password. Sign Out You can click to return to the login page. Stream Three are three streams. Choose one type from drop-down list. -
Page 9: Browse Video
User Manual - Network Dome - TKID45F2S - TKID85F2S - TKID45M1S - TKID85M1S Figure 1-3 Modify Password dialog box The change password page will be displayed if you don’t change the default password when you login the system for the first time. User need to wait at least three minutes after changing password, and then restart the device. - Page 10 User Manual - Network Dome - TKID45F2S - TKID85F2S - TKID45M1S - TKID85M1S In the display dialog box, click Add, as shown in Figure 1-4. Figure 1-4 Add the a trusted site Step 2 In the Internet Explorer, choose Tool > Internet Options > Security > Customer...
-
Page 11: Install Plugins
User Manual - Network Dome - TKID45F2S - TKID85F2S - TKID45M1S - TKID85M1S The login page is display when the control is loaded. 1.4.1 Install Plugins You will be prompted with a message “Download and install the new plugin” will show as in Figure 1-6, when you login to the web management system for the first time. - Page 12 User Manual - Network Dome - TKID45F2S - TKID85F2S - TKID45M1S - TKID85M1S Figure 1-7 Local Network page Step 2 Set the parameters according to Table 1-2. Table 1-2 Local network parameters Parameter Description Setting IP Protocol IPv 4 is the IP protocol that uses [Setting method] an address length of 32 bits.
- Page 13 User Manual - Network Dome - TKID45F2S - TKID85F2S - TKID45M1S - TKID85M1S Parameter Description Setting Subnet Mask Subnet mask of the network [Setting method] adapter. Enter a value manually. [Default value] 255.255.255.0 Default Gateway This parameter must be set if...
-
Page 14: Sensor Setting Interface
User Manual - Network Dome - TKID45F2S - TKID85F2S - TKID45M1S - TKID85M1S 2.1 Sensor Setting Interface Operation Procedure Step 1 On the Internet Explorer interface or the client software interface, select and right-click the surveillance image to the set, as shown in Figure 2-1. -
Page 15: Image Setting
User Manual - Network Dome - TKID45F2S - TKID85F2S - TKID45M1S - TKID85M1S Figure 2-2 Time segment interface Operation Procedure Step 1 Click in the lower left corner of Sensor Setting, and choose Debug Mode. Step 2 Tick Enable. Step 3... - Page 16 User Manual - Network Dome - TKID45F2S - TKID85F2S - TKID45M1S - TKID85M1S Figure 2-3 Image interface Table 2-2 lists the image setting parameters. Table 2-2 Image setting parameters Parameter Description Setting Brightness It indicates the total brightness of an image. As [Setting the value increases, the image becomes brighter.
-
Page 17: Scene Mode
User Manual - Network Dome - TKID45F2S - TKID85F2S - TKID45M1S - TKID85M1S 2.4 Scene Mode Figure 2-4 shows the scene mode interface. Figure 2-4 Scene mode interface for IP camera Table 2-3 describes the Scene mode parameters. Table 2-3 Scene mode parameters description... -
Page 18: Exposure
User Manual - Network Dome - TKID45F2S - TKID85F2S - TKID45M1S - TKID85M1S Parameter Description Configuration Method Aisle Mode The image rotates 90 degrees clockwise when aisle mode is [Setting method] enabled. Tick the Freeze status. [Default value] Disable 2.5 Exposure Figure 2-5 shows the Exposure interface. - Page 19 User Manual - Network Dome - TKID45F2S - TKID85F2S - TKID45M1S - TKID85M1S Table 2-4 Exposure parameters description Parameter Meaning Configuration Method The exposure modes include: [Setting method] Auto: The system performs auto exposure Select a value from the based on the monitoring environment.
-
Page 20: Wb Setting
User Manual - Network Dome - TKID45F2S - TKID85F2S - TKID45M1S - TKID85M1S Parameter Meaning Configuration Method It indicates the auto adjustment speed of the iris. As [Setting method] the value increases, the speed increases. Excessive Drag the slider. speed may cause instability. -
Page 21: Daynight
User Manual - Network Dome - TKID45F2S - TKID85F2S - TKID45M1S - TKID85M1S Table 2-5 WB Setting parameters description Parameter Meaning Configuration Method Mode It is adjusted based on application [Setting method] scenarios to improve the fidelity of Select a value from the drop-down list. - Page 22 User Manual - Network Dome - TKID45F2S - TKID85F2S - TKID45M1S - TKID85M1S Figure 2-7 DayNight Mode (1) interface Figure 2-8 DayNight Mode (2) interface...
- Page 23 User Manual - Network Dome - TKID45F2S - TKID85F2S - TKID45M1S - TKID85M1S Figure 2-9 DayNight Mode (3) interface Figure 2-10 DayNight Mode (4) interface Table 2-6 describes DayNight Mode parameters.
- Page 24 User Manual - Network Dome - TKID45F2S - TKID85F2S - TKID45M1S - TKID85M1S Table 2-6 DNR parameters description Parameter Meaning Configuration Method D/N Setting Mode It can be set to Auto, Day, Night or [Setting method] Timing. Select a value from the drop-down list.
- Page 25 User Manual - Network Dome - TKID45F2S - TKID85F2S - TKID45M1S - TKID85M1S Parameter Meaning Configuration Method TRANSI.(N- It determines the night-to-day [Setting method] >D)(dB) switching in auto mode. When the Drag the slider. system gain is smaller than the value...
-
Page 26: Noise Reduction
User Manual - Network Dome - TKID45F2S - TKID85F2S - TKID45M1S - TKID85M1S 2.8 Noise Reduction Figure 2-11 shows the Noise Reduction interface. Figure 2-11 Noise Reduction interface(manual) Figure 2-12 Noise Reduction interface(auto) Table 2-7 describes DNR parameters. -
Page 27: Enhance Image
User Manual - Network Dome - TKID45F2S - TKID85F2S - TKID45M1S - TKID85M1S Table 2-7 DNR parameters description Parameter Meaning Configuration Method [Configuration method] Select from the drop-down list 2D NR Reduce noise of image. [Default value] Auto [Configuration method]... - Page 28 User Manual - Network Dome - TKID45F2S - TKID85F2S - TKID45M1S - TKID85M1S Figure 2-13 Enhance image interface Table 2-8 Enhance image parameters description Parameter Meaning Configuration Method [Setting method] It is used to display the foreground and background Tick the WDR mode at the same time in the environment with a large and drag the slider.
- Page 29 User Manual - Network Dome - TKID45F2S - TKID85F2S - TKID45M1S - TKID85M1S Parameter Meaning Configuration Method The shakes and visual angle of image will reduce when the camera shakes slightly and the anti-shake is [Setting method] enable. Tick the Anti-shake Anti-shake mode.
- Page 30 User Manual - Network Dome - TKID45F2S - TKID85F2S - TKID45M1S - TKID85M1S Table 2-9 Zoom focus parameters description Parameter Meaning Configuration Method It is used to trigger auto focus [Setting method] when day to night or night to day.
-
Page 31: Local Network
User Manual - Network Dome - TKID45F2S - TKID85F2S - TKID45M1S - TKID85M1S 3.1 Local Network Description Local network parameters include: IP protocol IP address Subnet mask Default gateway Dynamic Host Configuration Protocol (DHCP) Preferred Domain Name System (DNS) server... - Page 32 User Manual - Network Dome - TKID45F2S - TKID85F2S - TKID45M1S - TKID85M1S Figure 3-1 Local Network page Step 2 Set the parameters according to Table 1-2. Table 3-1 Local network parameters Parameter Description Setting IP Protocol IPv4 is the IP protocol that uses an address length [Setting method] of 32 bits.
- Page 33 User Manual - Network Dome - TKID45F2S - TKID85F2S - TKID45M1S - TKID85M1S Parameter Description Setting IP Address Device IP address that can be set as required. [Setting method] Enter a value manually. [Default value] 192.168.0.120 Subnet Mask Subnet mask of the network adapter.
- Page 34 User Manual - Network Dome - TKID45F2S - TKID85F2S - TKID45M1S - TKID85M1S Table 4-1 describes the common faults and solutions. Table 4-1 Common faults and solutions Common Fault Possible Cause Solution When you enter the The certificate is not...
- Page 35 User Manual - Network Dome - TKID45F2S - TKID85F2S - TKID45M1S - TKID85M1S Common Fault Possible Cause Solution After the IP camera is The browser cache is To delete the browser cache, proceed as follows: upgraded, the web not deleted.
- Page 36 153, rue Michel Carré 95100 Argenteuil - FRANCE tel :+33 (0)1.30.76.30.30 - info.fr@tkhsecurity.com - tkhsecurity.fr V.201910.01...
