Glow-worm Compact 24c-AS/1 Installation And Maintenance Instructions Manual page 26

Hide thumbs Also See for Compact 24c-AS/1:
Table of Contents

Advertisement

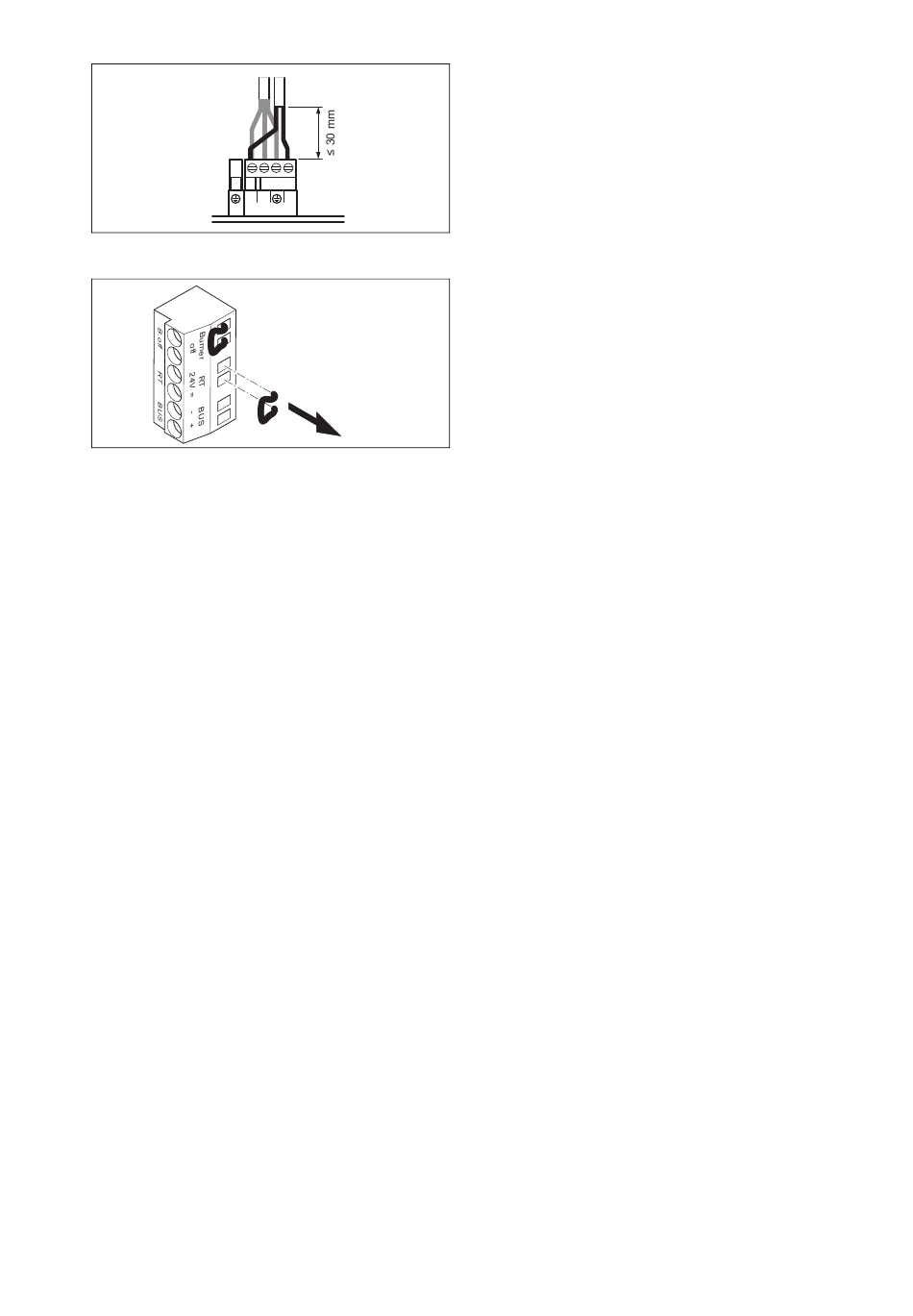

Alternatives 4 ‒ Connecting the 230 V low
3.
voltage room temperature control:
▶
Connect the control to the L main plug and to the
RT plug.
▶
Remove the bridge from the 24V=RT plug.
4.
Close the electronics box.
26
X1
L
N
RT
230V~
Installation and maintenance instructions Compact 0020313973_01
