8. To avoid short circuits resulting from loose individual
wires, fit conductor end sleeves on the stripped ends of
the conductors.
9. Screw the respective plug to the connection cable.
10. Check whether all conductors are inserted mechanic-
ally securely in the plug terminals. Remedy this if ne-
cessary.
11. Plug the plug into the associated PCB slot.
Wiring diagram (→ Page 52)
7.9.4 Establishing the power supply
1. Provide one common power supply for the boiler and
for the corresponding control:
–
Power supply: single-phase, 230 V, 50 Hz
– Fuse: ≤ 3 A
2. Ensure that the mains voltage is 230 V.
3. Connect the product using a fixed connection and an
electrical partition with a contact gap of at least 3 mm
(e.g. fuses or power switches).
4. Make sure that access to the power supply is always
available and is not covered or blocked.

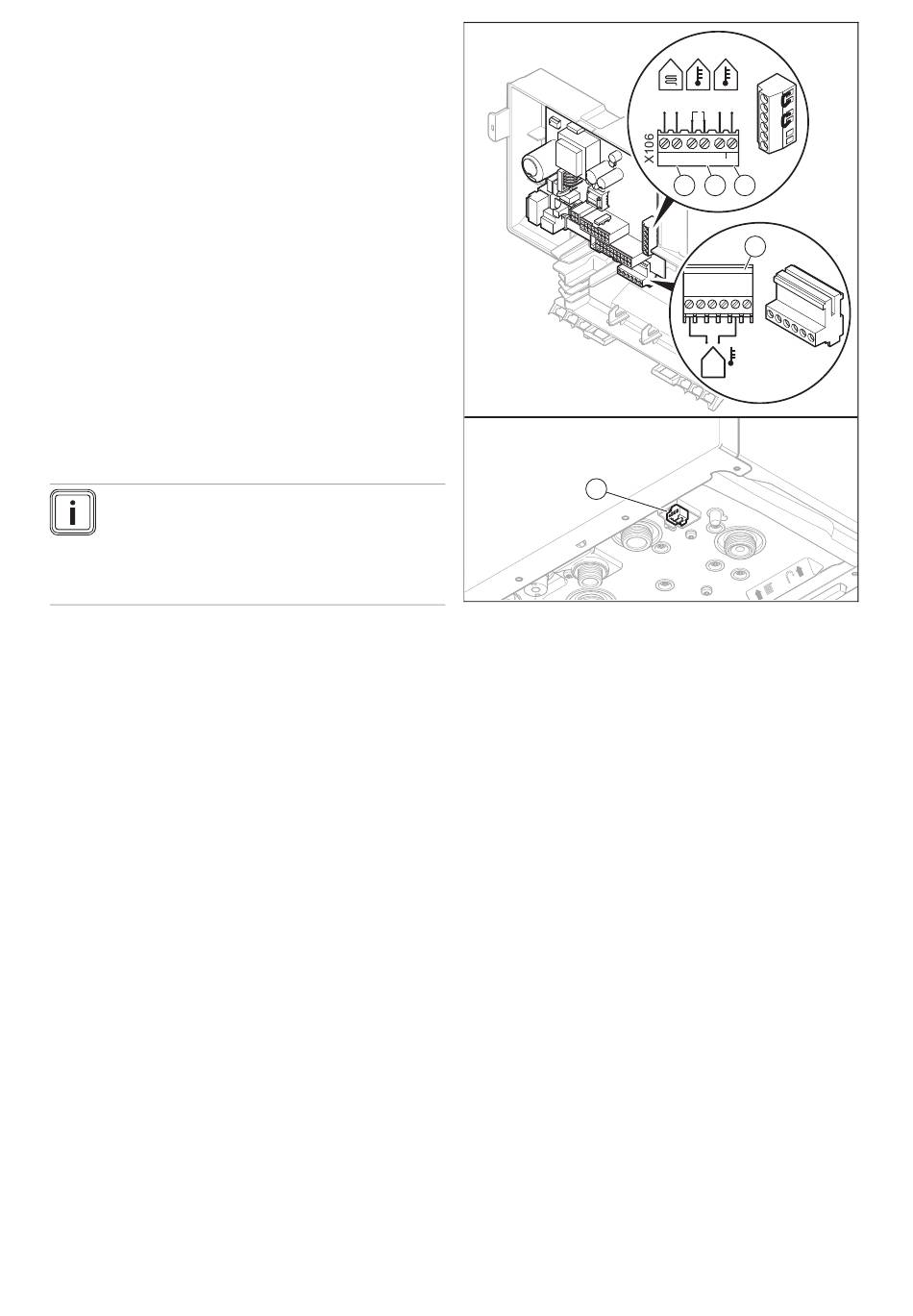

7.9.5 Connecting the control
Note
When connecting to an eBUS room thermostat
after starting up, establish the connection in or-
der to set the heating flow and domestic hot water
temperature on the product to the relevant max-
imum value.
0020313973_01 Compact Installation and maintenance instructions
5
1 Limit thermostat for
underfloor heating
2 Control 24 V (ON/OFF)
3 eBUS control or radio
receiver unit
1. Ensure that the product is voltage-free.
2. Carry out the wiring. (→ Page 24)
Alternatives 1 ‒ Connecting the weather-
3.
compensated control or room thermostat via
eBUS:
▶
Connect the control to the BUS connection (3) or
(5).
▶
Bridge the 24 VRT connection, if no bridge is
present.
Alternatives 2 ‒ Connecting the low-voltage
3.
control (24 V):
▶
Remove the bridge and connect the control to the
24 V = RT (2) connection.
Alternatives 3 ‒ Connecting a limit thermostat
3.
for underfloor heating:
▶
Remove the bridge and connect the limit thermostat
to the Burner off (1) connection.
24V BUS
– +
Burner 24V=
off
RT BUS
1 2 3
4
X41
4 Outdoor temperature
sensor, wired
5 eBUS control or radio
receiver unit
