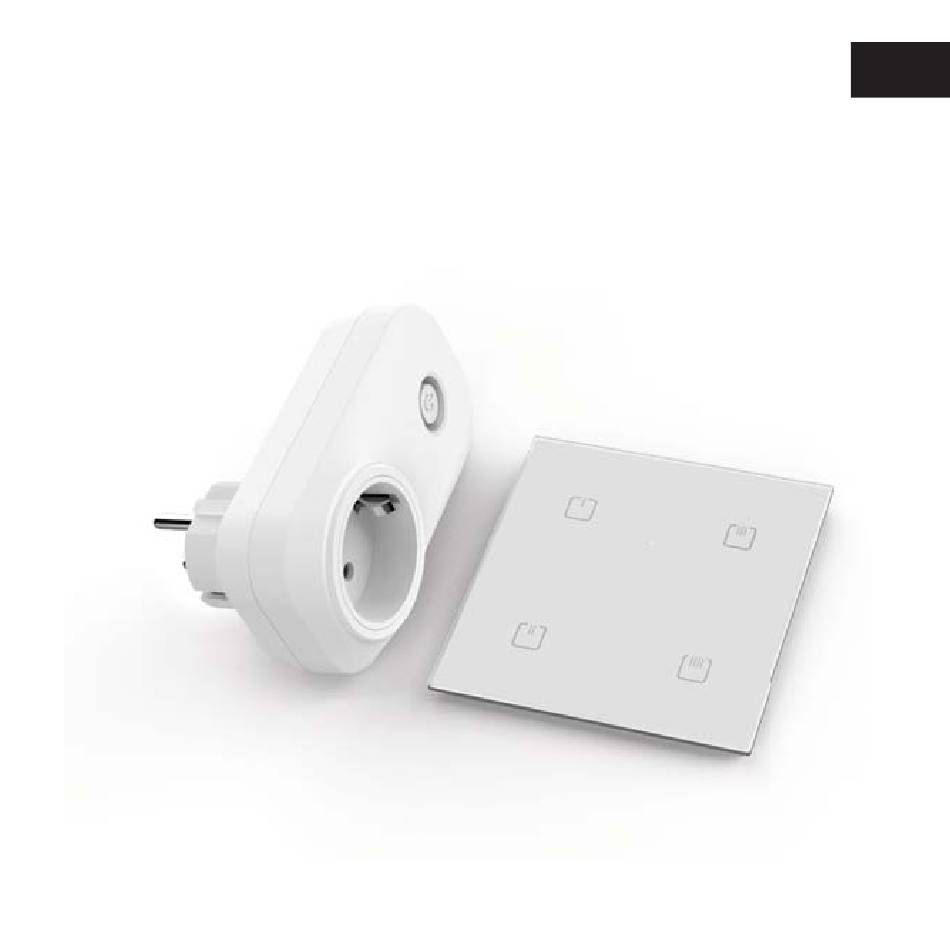

- Page 1 WIRELESS SWITCH SOCKET (LUXURY VERSION) Combination of iNELS wall-mounted wireless controller and switch socket. It is used to control el. appliances, lights, fans, etc.
- Page 2 EAN 8595188183352 (Glass touch controller - 4 buttons, WHITE ROUND + Switching socket-plug “British“) Schema The individual elements in the iNELS set are paired and their functions are preset. iNELS Wireless switch socket enables the basic function of controlling electrical appliances - ON / OFF. ON function of ON function of switching unit no.
- Page 3 SHARP/ROUND, RFGB-40/RFGB-240 RFGB-40/B – glass touch controller, SHARP - black, 4-buttons RFGB-40 RFGB-40/W – glass touch controller, SHARP - white, 4-buttons RFGB-240/B – glass touch controller, ROUND - black, 4-buttons RFGB-240/W – glass touch controller, ROUND - white, 4-buttons RFGB-240 Characteristics •...
- Page 4 Assembly Adhesive Adhesive Peel off one protective Peel off the second protective If the device is installed on layer on the doublesided layer on the doublesided glass, cover it with adhesive sheets and stick them adhesive sheets and place the a cover foil to the marked places on the control in the prepared place.
- Page 5 Technical parameters RFGB-40/RFGB-240 Power voltage: 2x 3 V battery CR 2032 Battery life: about 2 years depending on the frequency of use Transmission indication Red LED Number of capacitive buttons: Communication Protocol: RFIO Frequency: 868.5 MHz Signal transmission method: one-way addressed message Range: in the open up to 200 m Material:...
- Page 6 Notes ......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 7 • The switched socket with 1 output channel is used to control fans, lamps, heaters and appliances, which are connected by a power cord. • They can be combined with detectors, controllers, iNELS RF Control system components. • Thanks to the socket design, installation is simple by direct insertion into the existing socket.
- Page 8 Technical parameters RFSC-61 N/230V Supply voltage: 230 V / 50-60Hz Apparent power: 7 VA Dissipated power: 0.7 W Supply voltage tolerance: +10 %; -15 % Output: Number of contacts: 1x switching (AgSnO Rated current: 16 A / AC1 Switching power: 4000 VA / AC1, 384 W / DC Peak current: 30 A / <...
- Page 9 Compatibility The device can be combined with all system components, controls and devices of iNELS RF Control and iNELS RF Control The detector can be assigned an iNELS RF Control (RFIO ) communication protocol. Radiofrequency signal penetration through various construction materials...
- Page 10 Warning Instruction manual is designated for mounting and also for the usage of the device. It is always a part of its pac- king. Installation and connection can be carried out only by a person with adequate professional qualifi cation with understanding this instruction manual and functions of the device, and while observing all valid regulations.
