InTemp® CX400 Series Temperature Logger Manual
InTemp CX400 Temperature
Loggers
Models:
• CX402-T205 & CX402-VFC205,
2-meter probe and 5 mL glycol
bottle
• CX402-T215 & CX402-VFC215,
2-meter probe and 15 mL
glycol bottle
• CX402-T230 & CX402-VFC230,
2-meter probe and 30 mL
glycol bottle
• CX402-T405 & CX402-VFC405,
4-meter probe and 5 mL glycol
bottle
• CX402-T415 & CX402-VFC415,
4-meter probe and 15 mL
glycol bottle
• CX402-T430 & CX402-VFC430
4-meter probe and 30 mL
glycol bottle
• CX402-T2M, CX402-B2M, &
CX402-VFC2M, 2-meter probe
• CX402-T4M, CX402-B4M, &
CX402-VFC4M, 4-meter probe
• CX403
Included Items:
• Double-sided tape (for models
with glycol bottles)
• Two AAA 1.5 V alkaline
batteries
• Battery door and screw
• NIST Certificate of Calibration
Required Items:
• InTemp app
• Device with iOS or Android™
and Bluetooth
19996-U
InTemp CX400 series loggers measure temperature in indoor monitoring applications. Designed
to meet World Health Organization (WHO) and Centers for Disease Control and Prevention
(CDC) guidelines, this logger is ideal for clinical applications, such as vaccine storage and
pharmaceutical manufacturing. This Bluetooth® Low Energy-enabled logger is designed for
wireless communication with a mobile device. Using the InTemp app, you can easily configure
the logger with one of four preset profiles designed for ambient storage, clinical refrigerator,
freezer, or refrigerator monitoring or you can set up a custom profile for other applications.
You can also quickly perform daily logger checks, download reports, and monitor tripped
alarms. Or you can use InTempConnect® to configure and download CX series loggers via the
CX5000 Gateway. The InTempVerify™ app is also available to easily download loggers and
automatically upload reports to InTempConnect. Use the built-in LCD screen on the logger to
check the current temperature, daily maximum or minimum temperatures, logging status,
battery use, and more. Once data is uploaded to InTempConnect, you can track logger
configurations and automatically upload logger data to build custom reports for further

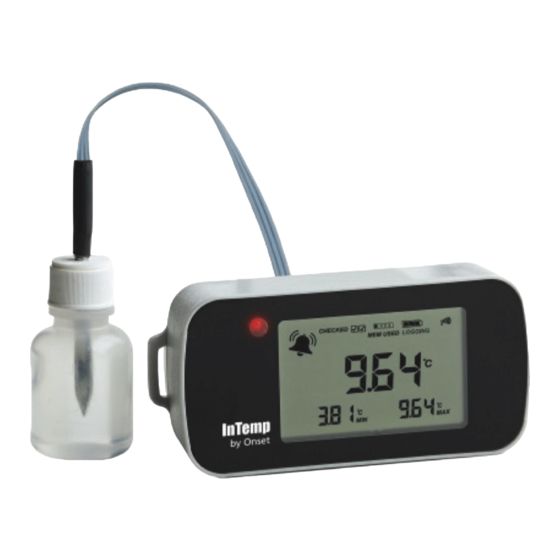

analysis. The CX402 model uses a 2- or 4-meter probe and is available with a 5-, 15-, or 30-mL
glycol bottle (bottle holder included). It also contains an internal sensor for ambient
temperature monitoring. The CX403 model is available with an internal sensor only.
Specifications
External Temperature Probe
Range
Accuracy
Resolution
Drift
NIST Calibration
Cable Length
Probe Dimensions
Ambient Temperature Sensor
Range
Accuracy
Resolution
Drift
Logger
Radio Power
Transmission Range
Wireless Data Standard
Logger Operating Range
Logging Rate
Time Accuracy
Battery Type
-40° to 100°C (-40° to 212°F)
±1.0°C from -40° to -22°C (±1.8°F from -40° to -8°F)
±0.5°C from -22° to 80°C (±0.9°F from -8° to 176°F)
±1.0°C from 80° to 100°C (±1.8°F from 176° to 212°F)
0.024°C at 25°C (0.04°F at 77°F)
<0.1°C (0.18°F) per year
CX40x-Txx and CX402-BxM: Single point NIST calibration, probe and
logger body
CX40x-VFCxxx: Single point NIST calibration, probe only
CX403: Single point NIST calibration
2 or 4 meter (6.56 or 13.12 feet) flat ribbon cable
Food-grade stainless steel probe with pointed tip, 53.34 mm (2.1 inches)
long, 3.18 mm (0.125 inches) diameter
-30° to 70°C (-22° to 158°F)
CX40x-Txxx, CX402-BxM, and CX403:
±0.5°C from -15° to 70°C (±0.9°F from 5° to 158°F)
±1.0°C from -30° to -15°C (±1.8°F from -22° to 5°F)
CX40x-VFCxxx:
±1.0°C from -30° to -22°C (±1.8°F from -22° to -8°F)
±0.5°C from -22° to 50°C (±0.9°F from -8° to 122°F)
±1.0°C from 50° to 70°C (±1.8°F from 122° to 158°F)
0.024°C at 25°C (0.04°F at 77°F)
<0.1°C (0.18°F) per year
1 mW (0 dBm)
Approximately 30.5 m (100 ft) line-of-sight
Bluetooth Low Energy (Bluetooth Smart)
-30° to 70°C (-22° to 158°F), 0 to 95% RH (non-condensing)
1 second to 18 hours
±1 minute per month at 25°C (77°F)
Two AAA 1.5 V alkaline or lithium batteries, user replaceable
