HOBO® Pendant® MX Temp (MX2201) and
Temp/Light (MX2202) Logger Manual

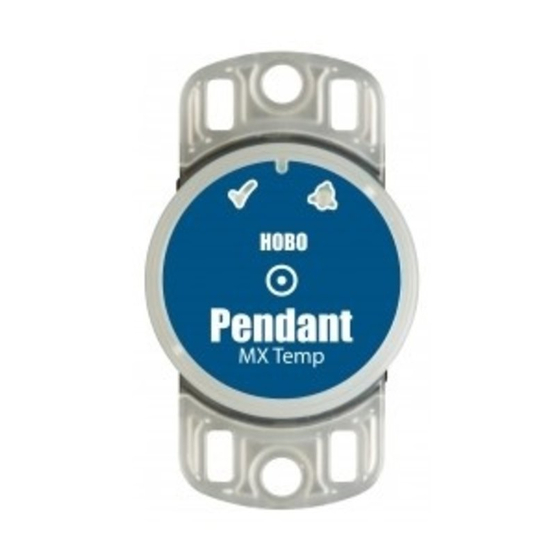

MX2201 Model Shown
HOBO Pendant MX
Logger
Models:
• MX Temp (MX2201)
• MX Temp/Light
(MX2202)
Required Items:
• HOBOconnect app
• Mobile device with
Bluetooth and iOS,
iPadOS®, or Android™,
or a Windows
computer with a native
BLE adapter or
supported BLE dongle
Accessories:
• Mounting boot 5-pack
(BOOT-MX2201-2202)
• Solar radiation shield
(RS1 or M-RSA)
• Mounting bracket for
solar radiation shield
(MX2200-RS-BRACKET)
• Replacement O-rings
(MX2201-02-ORING)
21536-N
HOBO Pendant MX loggers measure temperature (MX2201) or temperature/light (MX2202) in
indoor and outdoor environments. Designed for durability, these compact, waterproof loggers
can be used in numerous applications, including fresh and salt water. The loggers are
Bluetooth® Low Energy-enabled for wireless communication with a phone, tablet, or computer.
Using the HOBOconnect® app, you can easily configure the loggers, download logged data to a
mobile device or computer, or automatically upload the data to HOBOlink® for further analysis.
You can also configure the loggers to calculate statistics, set up alarms to trip at specific
thresholds, or enable burst logging in which data is logged at a faster interval when sensor
readings are above or below certain limits.
Specifications
Temperature Sensor (MX2201 and MX2202)
Range
Accuracy
Resolution
Drift
Response Time
Light Sensor (MX2202)
Range
Accuracy
Logger
Logger Operating Range
Buoyancy (Fresh Water)
Waterproof
Radio Power
Transmission Range
Wireless Data Standard
Logging Rate
Time Accuracy
Battery
Battery Life
Memory
Full Memory Download
Time
Wetted Materials
Dimensions
Weight
Environmental Rating
-20° to 70°C (-4° to 158°F) in air
-20° to 50°C (-4° to 122°F) in water
±0.5°C from -20° to 70°C (-4° to 158°F)
0.04°C (0.072°F)
<0.1°C (0.18°F) per year
17 minutes typical to 90% in air moving 1 m/s, unmounted
7 minutes typical to 90% in stirred water, unmounted
2
0 to 167,731 lux (15,582 lum/ft
)
±10% typical for direct sunlight (see Light Measurement on page 2 for
more details)
-20° to 70°C (-4° to 158°F) in air
2 g (0.07 oz) positive
To 30.5 m (100 ft)
1 mW (0 dBm)
Approximately 30.5 m (100 ft) line-of-sight
Bluetooth Low Energy (Bluetooth Smart)
1 second to 18 hours
±1 minute per month at 25°C (77°F)
CR2032 3V lithium, user replaceable
1 year typical at 25°C (77°F) with logging interval of 1 minute and
Bluetooth Always On enabled in software.
2 years typical at 25°C (77°F) with logging interval of 1 minute and
Bluetooth Always On disabled in software.
Faster logging intervals and statistics sampling intervals, burst logging,
remaining connected with the app, excessive downloads, and paging
may impact battery life.
To ensure proper battery installation, see Battery Information for
detailed instructions on replacing the battery.
96,000 measurements
Approximately 45 seconds; may take longer the farther the device is
from the logger
Polypropylene case, EPDM O-ring
3.35 x 5.64 x 1.8 cm (1.32 x 2.22 x 0.69 inches)
12.75 g (0.45 oz)
IP68
The CE Marking identifies this product as complying with all relevant
directives in the European Union (EU).
See last page

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HOBO Pendant MX Temp and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Onset HOBO Pendant MX Temp

Summary of Contents for Onset HOBO Pendant MX Temp

  • Page 1 HOBO® Pendant® MX Temp (MX2201) and Temp/Light (MX2202) Logger Manual HOBO Pendant MX loggers measure temperature (MX2201) or temperature/light (MX2202) in indoor and outdoor environments. Designed for durability, these compact, waterproof loggers can be used in numerous applications, including fresh and salt water. The loggers are Bluetooth®...
  • Page 2 HOBO Pendant MX Temp (MX2201) and Temp/Light (MX2202) Logger Manual Logger Components and Operation Mounting Alarm LED Status LED Start Temperature and Button Light Sensors Plot A MX2202 model shown Light Measurement Accuracy Mounting Tab: Use the tabs at the top and bottom of the Although the MX2202 is factory calibrated to account for the logger to mount it (see Deploying and Mounting the Logger).

  • Page 3: Configuring The Logger

    HOBO Pendant MX Temp (MX2201) and Temp/Light (MX2202) Logger Manual If the logger does not appear or if it is having trouble Update the firmware on the logger. A logger connecting, follow these tips. readout is completed automatically at the beginning of the firmware update process.

  • Page 4: Setting Up Alarms

    HOBO Pendant MX Temp (MX2201) and Temp/Light (MX2202) Logger Manual 8. Tap Pause Options, then select Pause On Button Push to 8. For the Duration, select how much time should elapse specify that you can pause the logger by pressing its button before the alarm trips and select one of the following: for 3 seconds.
  • Page 5 HOBO Pendant MX Temp (MX2201) and Temp/Light (MX2202) Logger Manual data every 30 seconds. Once the temperature rises back to Statistics Logging 32°F, the logger then returns to normal mode, logging every 5 During fixed logging, the logger records data for enabled minutes.

  • Page 6: Setting A Password

    HOBO Pendant MX Temp (MX2201) and Temp/Light (MX2202) Logger Manual usage is similar to what it would be if you had selected this Event Name Definition rate for the normal logging interval. Started The logger started logging. Stopped The logger stopped logging.
  • Page 7 HOBO Pendant MX Temp (MX2201) and Temp/Light (MX2202) Logger Manual Insert the other logger mounting tab into the boot, BRACKET). Attach the logger to the underside of the making sure the logger is securely seated in the boot as mounting plate as shown in the following example. For shown.

  • Page 8: Battery Information

    HOBO Pendant MX Temp (MX2201) and Temp/Light (MX2202) Logger Manual Battery Information The logger requires one user-replaceable CR2032 3V lithium Use this edge to battery. Battery life is 1 year typical at 25°C (77°F) with a lift the cover off logging interval of 1 minute and Bluetooth Always On enabled or 2 years typical at 25°C (77°F) when the logger is configured...
  • Page 9 © 2017–2022 Onset Computer Corporation. All rights reserved. Onset, HOBO, Pendant, HOBOconnect, and HOBOlink are registered trademarks of Onset Computer Corporation. App Store, iPhone, iPad, and iPadOS are service marks or registered trademarks of Apple Inc. Android and Google Play are trademarks of Google LLC.
