Onset InTemp CX40 Series Quick Start Manual

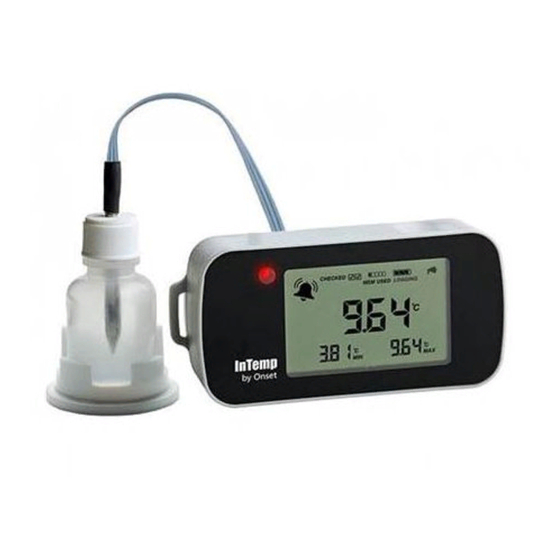

Quick Start for the InTemp® CX Temperature Logger (CX40x)
Install two AAA batteries in the logger, observing polarity.
1
Insert the battery door in the back of the logger making sure it
is flush with the rest of the logger case. Use the included screw
and a Phillips-head screwdriver to screw the battery door into
place.
2
Insert the external temperature probe (if applicable).
3
If you downloaded the app from Google Play™: Skip to step 5.
4
If you downloaded the app from the App Store®: You have
the option to also use this logger with InTempConnect, web-
based software where you can monitor logger deployments
and view downloaded data. If you want to also use the logger
with InTempConnect, follow these steps:
a. Go to www.intempconnect.com and follow the prompts to
set up an administrator account. You'll receive an email to
activate the account.
19995-C MAN-QSG-CX40x
Quick Start for the InTemp® CX Temperature Logger (CX40x)
Install two AAA batteries in the logger, observing polarity.
1
Insert the battery door in the back of the logger making sure it
is flush with the rest of the logger case. Use the included screw
and a Phillips-head screwdriver to screw the battery door into
place.
2
Insert the external temperature probe (if applicable).
3
If you downloaded the app from Google Play™: Skip to step 5.
4
If you downloaded the app from the App Store®: You have
the option to also use this logger with InTempConnect, web-
based software where you can monitor logger deployments
and view downloaded data. If you want to also use the logger
with InTempConnect, follow these steps:
a. Go to www.intempconnect.com and follow the prompts to
set up an administrator account. You'll receive an email to
activate the account.
19995-C MAN-QSG-CX40x
Download InTemp to
your phone or tablet.
Download InTemp to
your phone or tablet.
b.
Log in to the account at www.intempconnect.com and add
users to your InTemp account. Click Settings and then the
Users tab. Click Add and enter the email address and first
and last name of the user. Note: If your organization is
already using InTempConnect, contact your administrator
to receive a user name and password to the account.
c. New users will receive an email to activate their user
accounts.
Open the InTemp app. Enable Bluetooth® in your device
5
settings if prompted.
If you are using both the app and InTempConnect (available
6
for iOS users only): Log in with your InTempConnect user
credentials.
If you are using the app only: Set up a local user account and
tap Save. Log in to your account when prompted.
b.
Log in to the account at www.intempconnect.com and add
users to your InTemp account. Click Settings and then the
Users tab. Click Add and enter the email address and first
and last name of the user. Note: If your organization is
already using InTempConnect, contact your administrator
to receive a user name and password to the account.
c. New users will receive an email to activate their user
accounts.
Open the InTemp app. Enable Bluetooth® in your device
5
settings if prompted.
If you are using both the app and InTempConnect (available
6
for iOS users only): Log in with your InTempConnect user
credentials.
If you are using the app only: Set up a local user account and
tap Save. Log in to your account when prompted.
