HOBO® 4-Channel Analog Data Logger (UX120-006M) Manual
HOBO 4-Channel Analog
Data Logger
UX120-006M
Included Items:
Command™ strip
Double-sided tape
Hook & loop strap
Two AAA 1.5 V alkaline
batteries
Required Items:
HOBOware 3.6 or later
USB cable (included with
software)
Sensors and cables available at
www.onsetcomp.com.

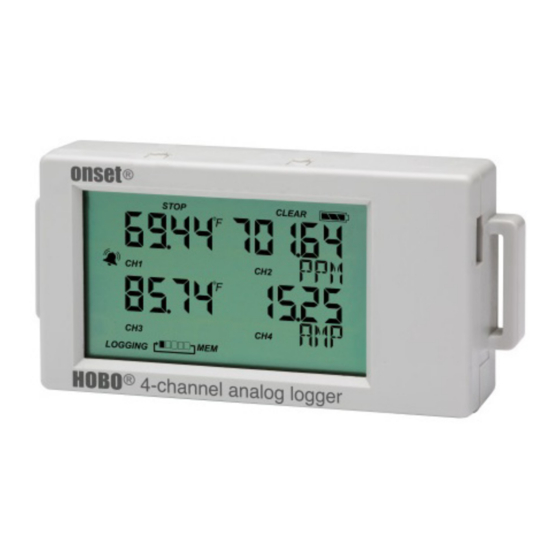

The HOBO 4-Channel Analog data logger has 16-bit resolution and can record up to 1.9 million
measurements or events. The four external channels accept a variety of sensors, including
temperature and split-core AC current sensors as well as 4-20 mA and voltage input cables (sold
separately). Using HOBOware®, you can easily configure an alarm to trip when the sensor
reading rises above or falls below a measurement that you specify. Or, you can set up burst
logging in which the logger records data at a different interval during certain conditions. The
logger can also calculate minimum, maximum, average, and standard deviation statistics. This
easy-to-use data logger has a built-in LCD screen to check current readings and to monitor
logging status, battery use, and memory consumption in between readouts.

Specifications

Logger with CABLE-
Cable Type 4-20mA
Measurement 0 to 20.1 mA
Range
Accuracy ±0.001 mA
±0.2% of
reading
Resolution 0.3 µA
Logger
Operating Range
Logging Rate
Logging Modes
Memory Modes
Start Modes
Stop Modes
Restart Mode
Time Accuracy
Battery Life
Battery Type
Memory
Download Type
Full Memory Download
Time
LCD
Size
Weight
Environmental Rating
CABLE-2.5- CABLE-
STEREO ADAP5
0 to 2.5 V 0 to 5.0 V
±0.1 mV ±0.2 mV
±0.1% of ±0.3% of
reading reading
40 µV 80 µV
Logging: -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing);
Launch/Readout: 0° to 50°C (32° to 122°F) per USB specification
1 second to 18 hours, 12 minutes, 15 seconds
Normal, burst, or statistics
Wrap when full or stop when full
Immediate, push button, date & time, or next interval
When memory full, push button, or date & time
Push button
±1 minute per month at 25°C (77°F), see Plot A
1 year, typical with logging rate of 1 minute and sampling interval of 15
seconds or greater
Two AAA 1.5 V alkaline batteries, user replaceable
4 MB (1.9 million measurements, maximum)
USB 2.0 interface
Approximately 1.5 minutes
LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or
go blank in temperatures outside this range
10.8 x 5.41 x 2.54 cm (4.25 x 2.13 x 1 in.)
107.5 g (3.79 oz)
IP50
The CE Marking identifies this product as complying with all relevant
directives in the European Union (EU).
CABLE- CABLE-
ADAP10 ADAP24
0 to 10 V 0 to 24 V
±0.4 mV ±1.0 mV
±0.3% of ±0.3% of
reading reading
160 µV 384 µV
