HOBO® MX Temp/RH Data Logger (MX1101) Manual
HOBO MX Temp/RH
Data Logger
Models: MX1101
MX1101-01 (Japan
and Korea)
Included Items:
• Command™ strip
• Double-sided tape
• Hook & loop strap
• Two AAA 1.5 V alkaline
batteries
Required Items:
• HOBOconnect app
• Mobile device with
Bluetooth and iOS,
iPadOS®, or Android™
17840-S

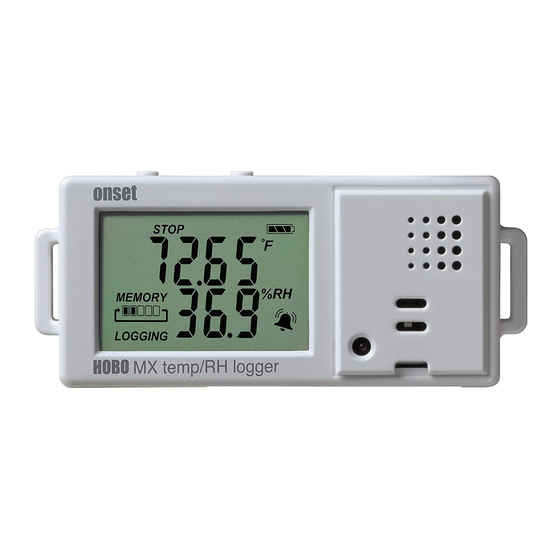

The HOBO MX Temp/RH data logger records and transmits temperature and relative humidity
(RH) in indoor environments with its integrated sensors. This Bluetooth® Low Energy-enabled
logger is designed for wireless communication with a mobile device. Using the HOBOconnect™
app, you can easily configure the logger, read it out, and view data on your phone or tablet, or
export the data for further analysis. The logger can calculate minimum, maximum, average, and
standard deviation statistics and be configured to trip audible or visual alarms at thresholds you
specify. The logger also supports burst logging in which data is logged at a different interval
when sensor readings are above or below certain limits. This compact data logger also has a
built-in LCD screen to display the current temperature, relative humidity, logging status, battery
use, memory consumption, and more.
Specifications
Temperature Sensor
Range
Accuracy
Resolution
Drift
RH Sensor*
Range
Accuracy
Resolution
Drift
Response Time
Temperature
RH
Logger
Radio Power
Transmission Range
Wireless Data Standard
Logger Operating Range
Logging Rate
Logging Modes
Memory Modes
Start Modes
Stop Modes
Restart Mode
Time Accuracy
Battery Life
Battery Type
Memory
Full Memory Download Time
*Per RH sensor manufacturer data sheet
-20° to 70°C (-4° to 158°F)
±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F), see Plot A
0.024°C at 25°C (0.04°F at 77°F), see Plot A
<0.1°C (0.18°F) per year
1% to 90% (non-condensing)
±2% from 20% to 80% typical to a maximum of ±4.5% including
hysteresis at 25°C (77°F); below 20% and above 80% ±6% typical
0.01%
<1% per year typical
7:30 minutes in air moving 1 m/s (2.2 mph)
20 seconds to 90% in airflow of 1 m/s (2.2 mph)
1 mW (0 dBm)
Approximately 30.5 m (100 ft) line-of-sight
Bluetooth Low Energy (Bluetooth Smart)
-20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing)
1 second to 18 hours
Fixed interval (normal, statistics) or burst
Wrap when full or stop when full
Immediate, push button, date & time, or next interval
When memory full, push button, date & time, or after a set logging
period
Push button
±1 minute per month at 25°C (77°F), see Plot B
1 year, typical with logging interval of 1 minute. Faster logging and/or
statistics sampling intervals, entering burst logging mode, and
remaining connected with the app will impact battery life. Excessive
readouts, audible alarms, and paging all impact battery life. Visual
alarms and other events can have a marginal impact on battery life.
Two AAA 1.5 V alkaline batteries, user replaceable
128 KB (84,650 measurements, maximum)
Approximately 60 seconds; may take longer the further the device is
from the logger

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HOBO MX1101 and is the answer not in the manual?

Questions and answers

Related Manuals for Onset HOBO MX1101

Summary of Contents for Onset HOBO MX1101

  • Page 1 HOBO® MX Temp/RH Data Logger (MX1101) Manual The HOBO MX Temp/RH data logger records and transmits temperature and relative humidity (RH) in indoor environments with its integrated sensors. This Bluetooth® Low Energy-enabled logger is designed for wireless communication with a mobile device. Using the HOBOconnect™ app, you can easily configure the logger, read it out, and view data on your phone or tablet, or export the data for further analysis.
  • Page 2 HOBO MX Temp/RH Data Logger (MX1101) Manual Specifications (continued) LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range Size 3.66 x 8.48 x 2.29 cm (1.44 x 3.34 x 0.9 in.) Weight 56 g (1.98 oz) Environmental Rating...
  • Page 3 HOBO MX Temp/RH Data Logger (MX1101) Manual LCD Symbol Description LCD Symbol Description The logger has been started with push button stop The logger has been configured to start logging on enabled; press and hold the Start/Stop button for a particular date/time. The display will count down 3 seconds to stop the logger.

  • Page 4: Configuring The Logger

    HOBO MX Temp/RH Data Logger (MX1101) Manual • If your device can connect to the logger intermittently or 3. Tap Name and type a name for the logger (optional). If no name is selected, the logger serial number is used as the loses its connection, move closer to the logger, within name.

  • Page 5: Setting Up Alarms

    HOBO MX Temp/RH Data Logger (MX1101) Manual • On Date/Time. Select this if you want the logger to 4. Select Low if you want an alarm to trip when the sensor reading falls below the low alarm value. Drag the slider or stop logging on a specific date and time.
  • Page 6 HOBO MX Temp/RH Data Logger (MX1101) Manual audible alarm is cleared, a visual alarm may remain on Notes: the logger LCD and in the app depending on the settings • The high and low burst limits are only checked when the selected for maintaining visual alarms or because the logger's LCD screen refreshes once every 15 seconds.

  • Page 7: Setting A Password

    Standard Deviation (average is automatically enabled when the data. selecting Standard Deviation). Statistics will be logged for all Data can also be uploaded automatically to HOBOlink, Onset’s enabled sensors. In addition, the more statistics you record, web-based software, via the app or the MX gateway. For the shorter the logger duration and the more memory is details, see the app user’s guide and see the HOBOlink help for...

  • Page 8: Battery Information

    HOBO MX Temp/RH Data Logger (MX1101) Manual Internal Event Name Definition Battery Information logging mode. The logger requires two user-replaceable AAA 1.5 V alkaline or optional lithium batteries for operation at the extreme ends of Safe Shutdown The battery level dropped below 1.85 V; the logger performs a safe shutdown.
  • Page 9 To comply with FCC and Industry Canada RF radiation exposure limits for general population, the HOBO MX1101 loggers must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
